Loupe

Work auxiliary lens ML-WAL

Work auxiliary lens ML-WAL

Regular price $131.00
Regular price Sale price $131.00
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

■Product features

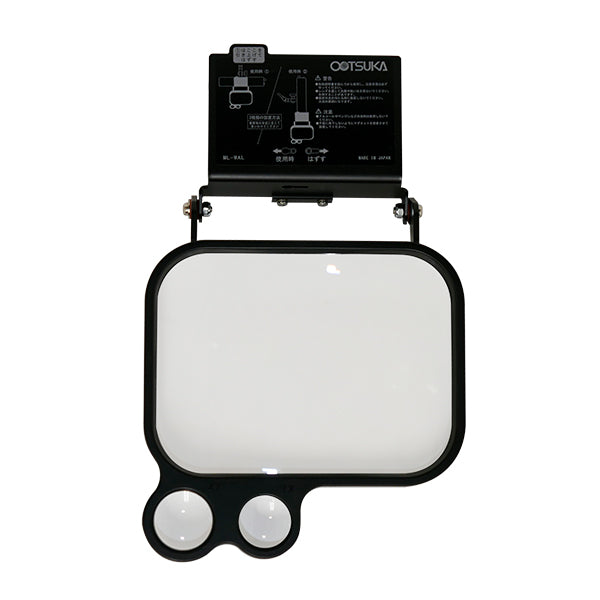

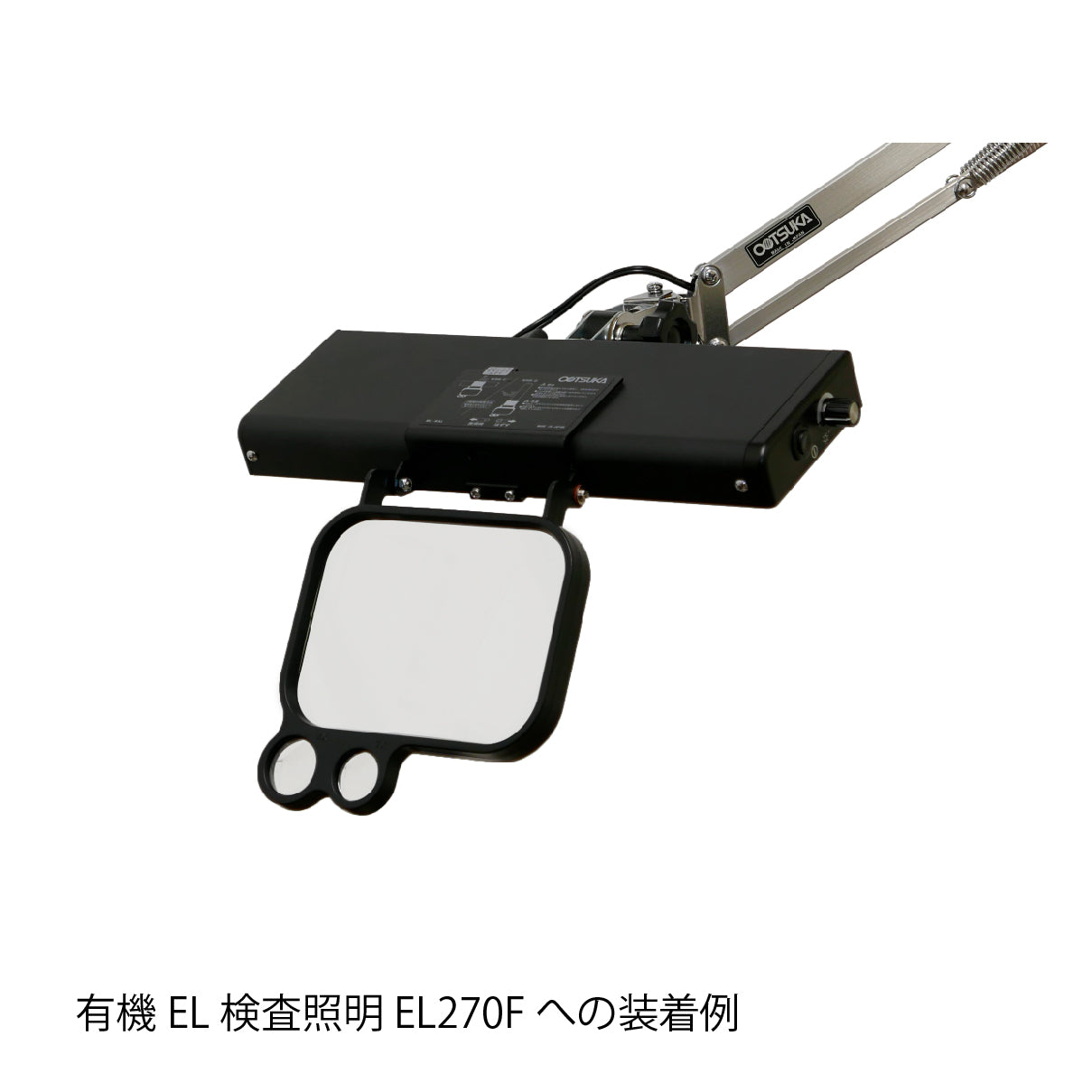

The work auxiliary lens ML-WAL can be attached to the LED work/inspection light ML230F or organic EL inspection light EL270F and used as a lighting magnifier. Since it is magnetic, it can be easily attached and detached.
Ideal for detailed work and inspections that are difficult to see with the naked eye.
You can freely change the angle of the object to be observed and the illumination. It is a combination of a highly transparent ultra-large wide lens with a magnification of 1.8x and high magnification lenses of 4x and 7x.
■Product name
Work auxiliary lens ML-WAL

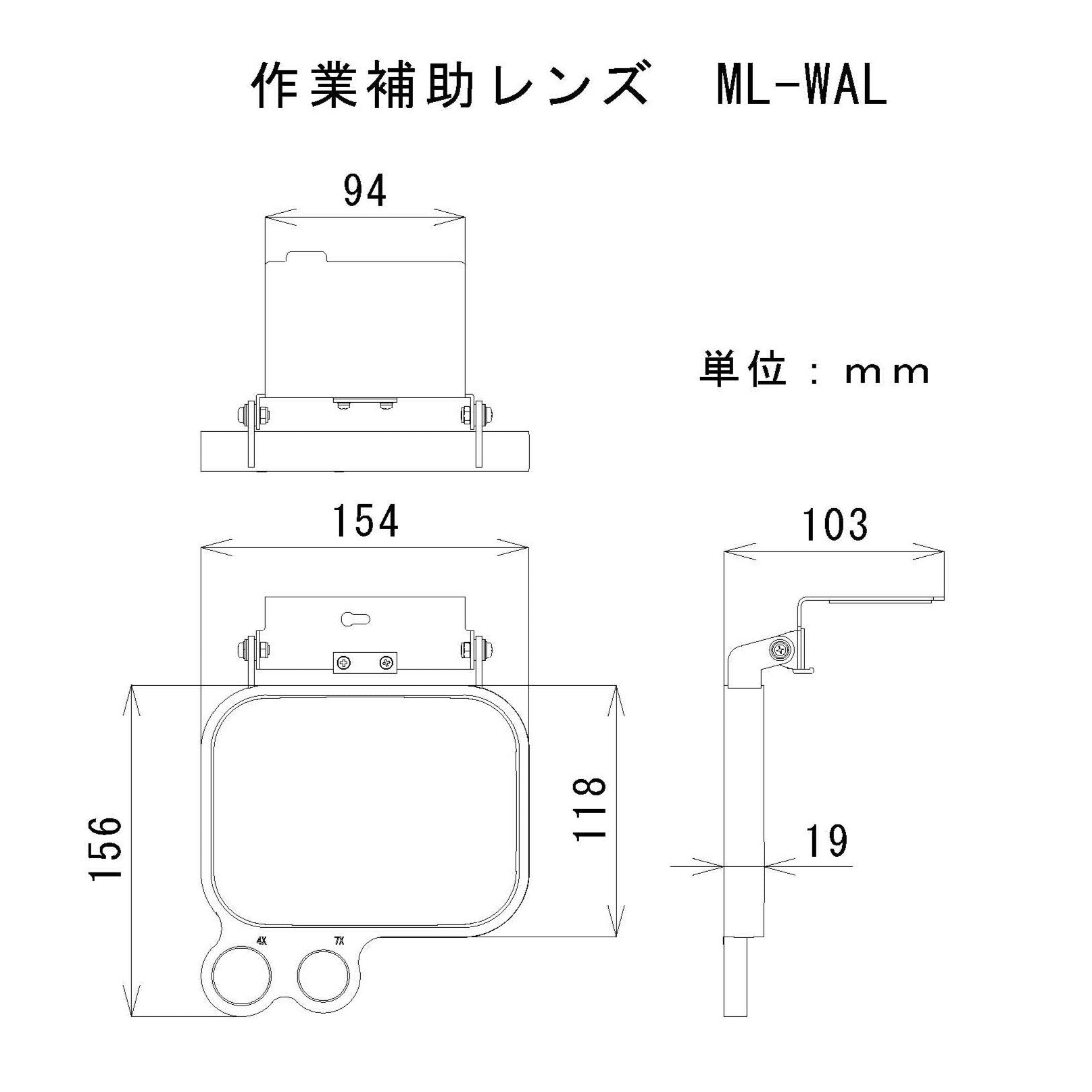

■Product specifications

magnification 1.8x/110×145mm/square
4x/Φ30mm, round (large)
7x/Φ25mm/Round (small)
AR (anti-reflection) coated lens lineup none
Material resin lens
composition 1 piece each/total 3 pieces
