interchangeable lens system

Wide lens 4XAR - LSK, LEK wide series dedicated lens -

Wide lens 4XAR - LSK, LEK wide series dedicated lens -

Regular price ¥58,300
Regular price Sale price ¥58,300
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

The target lighting magnifier body LSK, LSKs, LEK, LEKs series are discontinued products.

■Product features
The wide interchangeable lens system is equipped with a rubber mounting frame for the lens, and is compatible with lenses with 2x, 3x, and 4x magnification in one product. The low magnification lens of the interchangeable lens system has a magnification close to that seen with the naked eye, and is characterized by less discomfort when using it. The wide field of view of wide interchangeable lenses contributes to improving the efficiency of visual inspection work.
It also has an AR (anti-reflection) coating at all magnifications.
■Product name

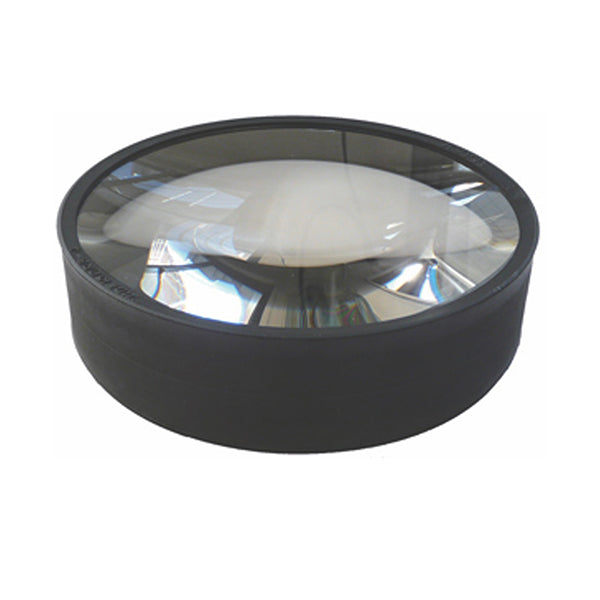

Wide interchangeable lens system wide 4x AR
■Product specifications

lens
magnification 4x AR
Lens dimensions/eyepiece diameter (mm) Φ150
Eye point/distance between eye and lens (mm) 150
Working distance/distance between lens and object (mm) 100
Field of view (mm) Φ160
Lens method Wide interchangeable lens system
AR (anti-reflection) coated lens lineup Yes
Lens material optical glass
Lens configuration 2 sheets
Weight (g) 1150
Compatible models LED lighting magnifier LSK,LSKs,LEK,LEKs
  • 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
  • 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
  • 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
