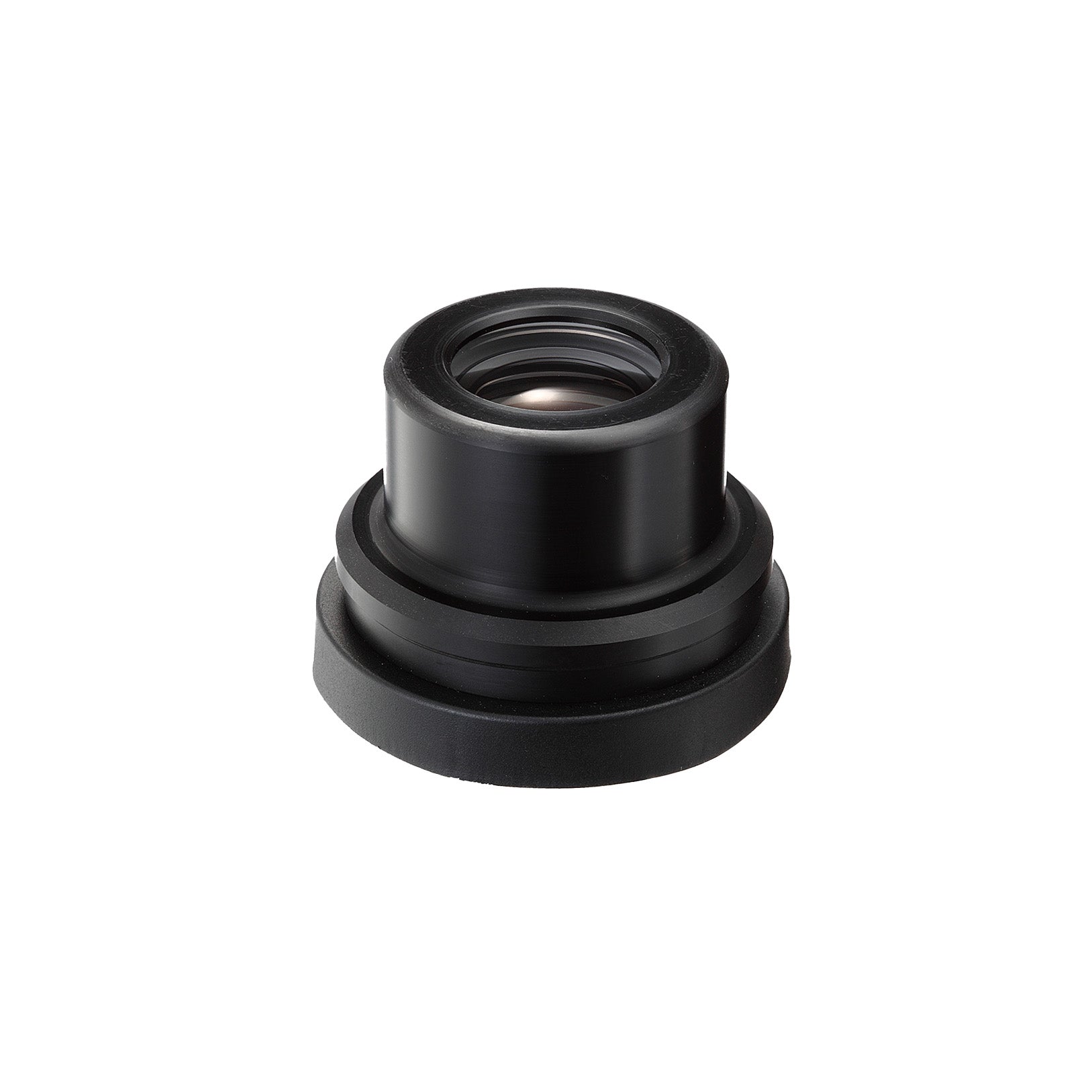

LED hole/groove/inner surface inspection magnifying glass
Working distance extender WDE-B
Working distance extender WDE-B
Regular price
¥29,700
Regular price
Sale price
¥29,700
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
■Product features
・The working distance extender is effective when you want to extend the working distance without lowering the magnification.
This extender can also be used with PUL and polarizing filters.
■Product name

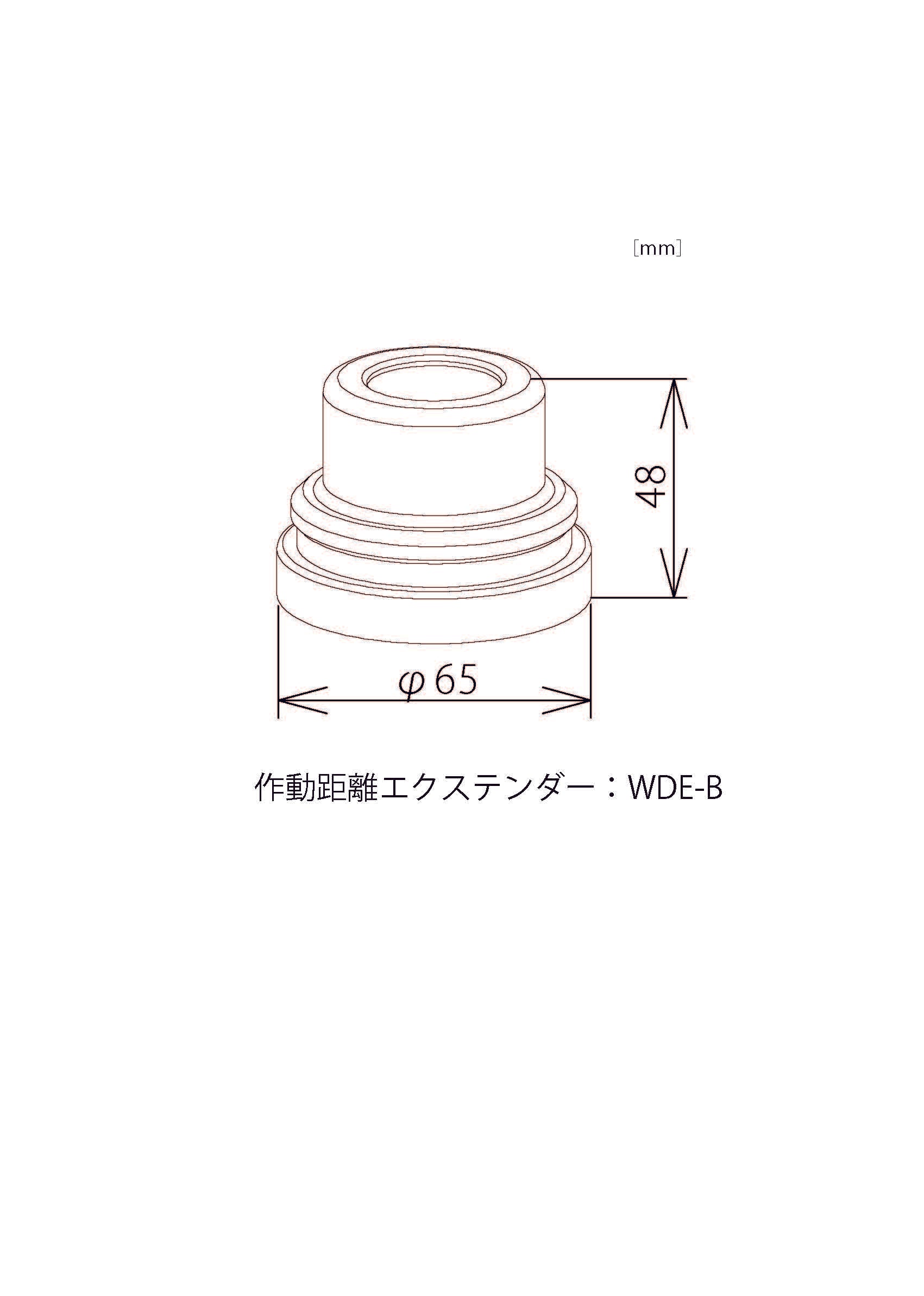

Optional working distance extender for “Bore Loupe” WDE-B
■Product specifications
| Main body | |
|---|---|
| Eyepiece diameter (mm) | Φ40 |
| Working distance when installed (mm) | 38 |
| Mounting method | Attach to the top of the 3x lens frame |
| AR (anti-reflection) coated lens lineup | none |
| Lens material | optical lens |
| Lens configuration | Three |
| Compatible models | For Boa Loupe 3x lens only *Cannot be used for 2x lens. |
