LUXO

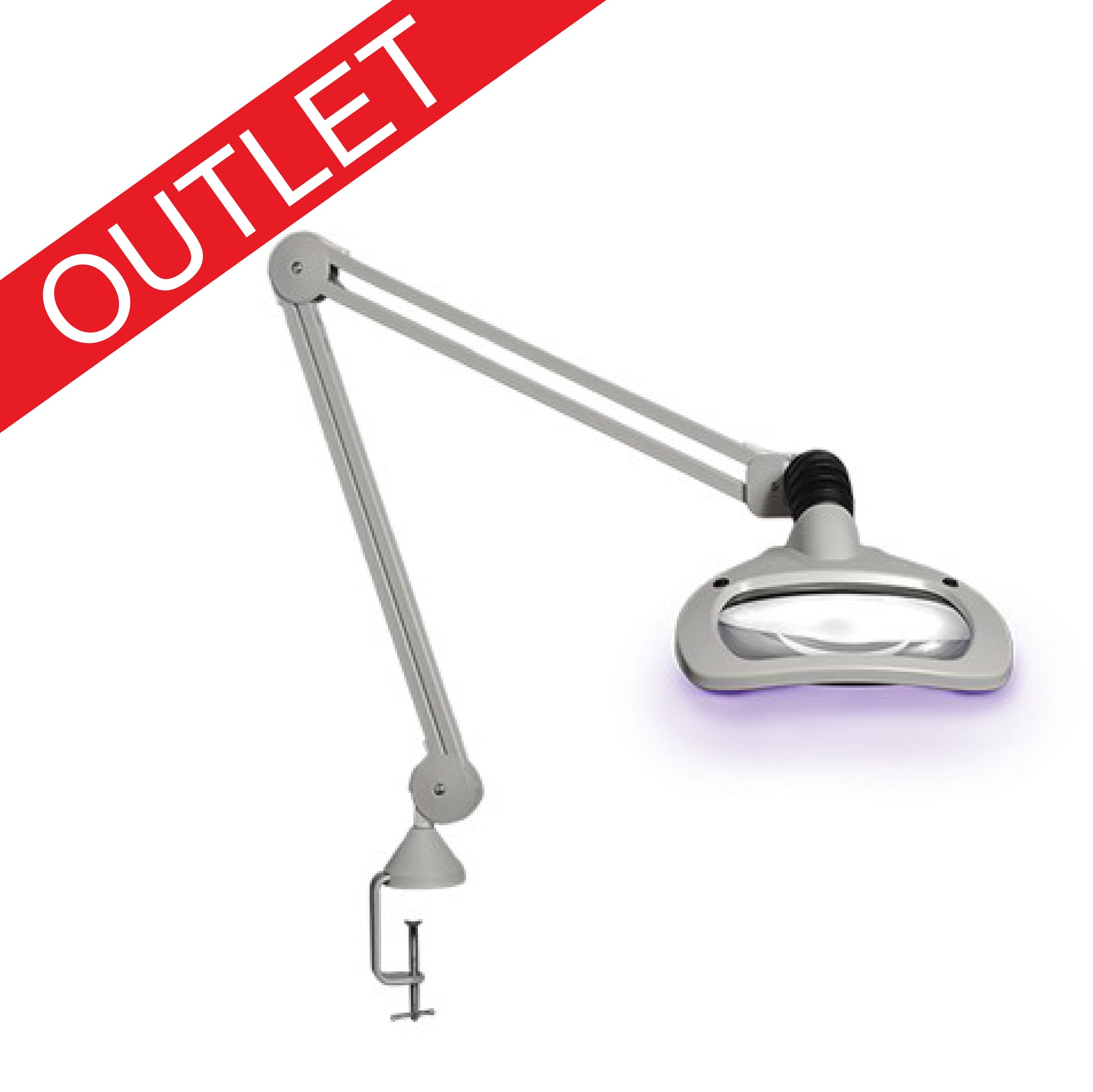

WAVE LED UV 3.5X

WAVE LED UV 3.5X

Regular price ¥87,010
Regular price Sale price ¥87,010
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

This product is an outlet item.

There are defects such as scratches, dents, uneven or peeling paint, scratches on the lens, and slight bubbles on the product itself.

Although it is not a regular product, there is no problem with the original function of the lighting magnifier, and you can use it in the same way as a regular product.

Outlet products have low prices for the reasons mentioned above, so please be aware that some of the products may have defects.

・About returns, exchanges, and warranties

We will only accept returns or exchanges in the case of our company's reasons (damage during transportation, wrong item, etc.).

This is not covered by the manufacturer's warranty.

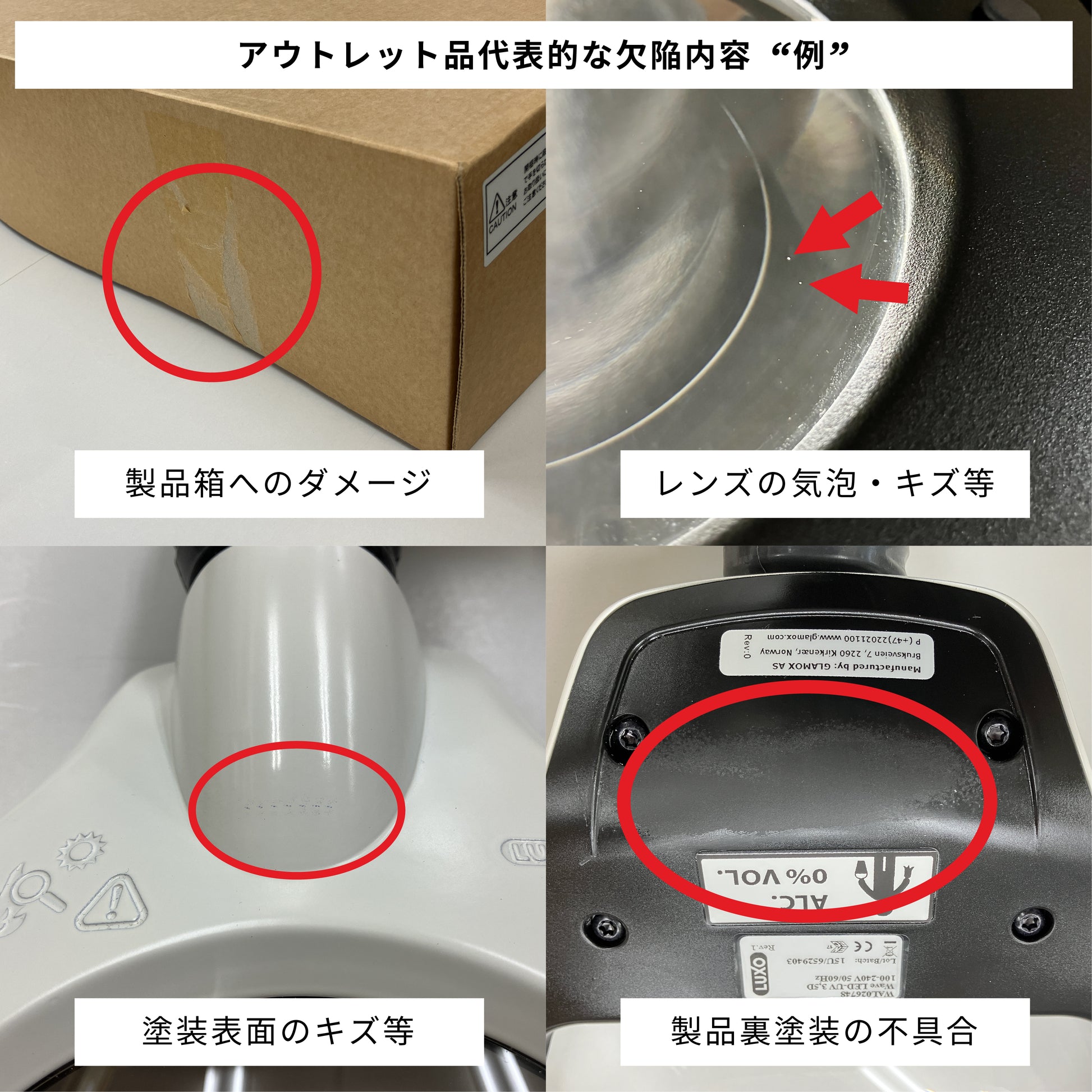

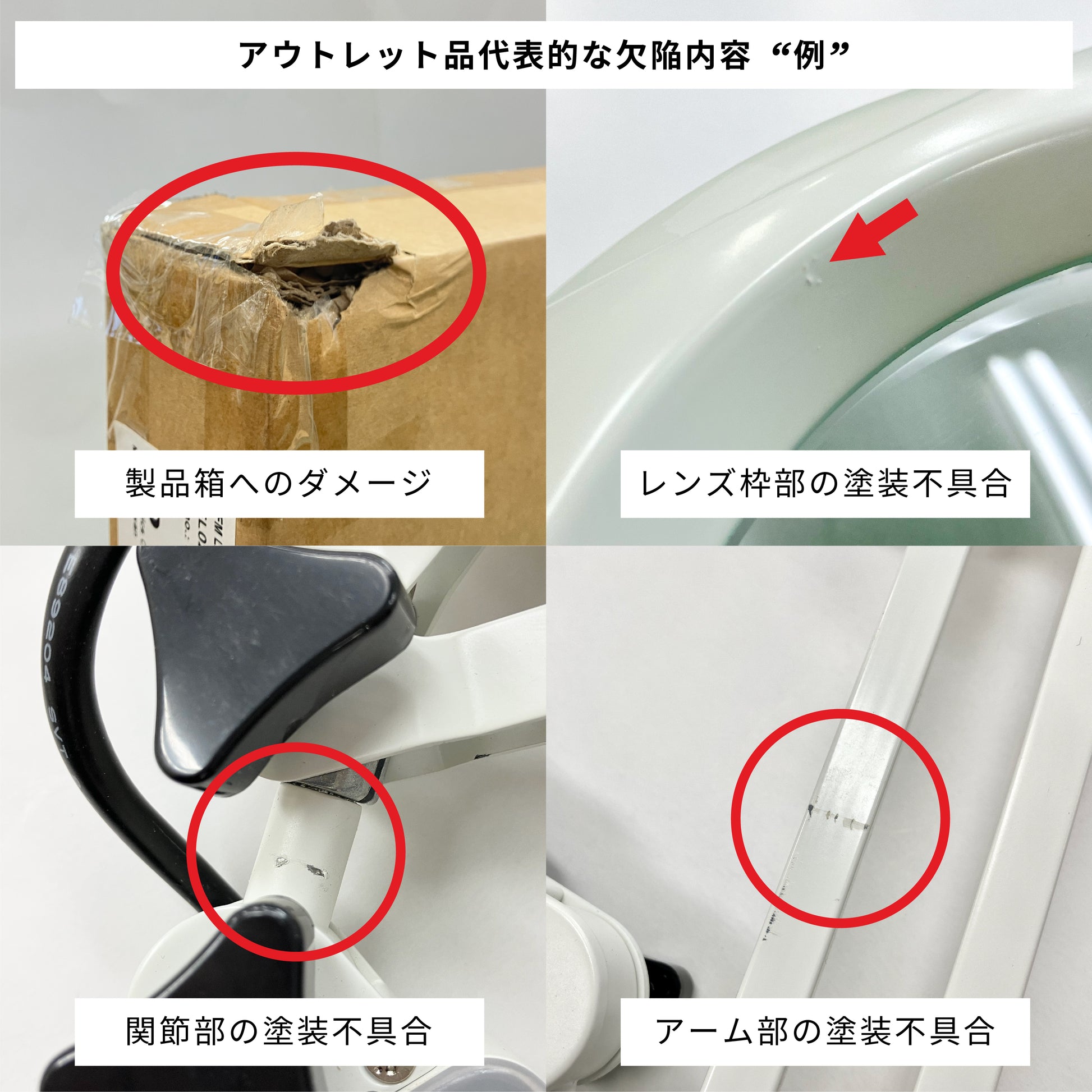

*Please refer to the "examples" of defects in the product images. We do not accept inquiries regarding outlet products.

Please understand this before placing your order.

■Product features
・LUXO WAVE LED UV series has two independently controllable UV LED lights placed on the left and right sides of the lens, and has a "shadow-free magnification" that illuminates from two directions, and one left or right side light. Two types of inspection images can be obtained: an enlarged image that emphasizes the three-dimensional effect by using directional illumination.
・WAVE LED UV is equipped with a UV-A light source (peak 400nm) as standard.The UV specification is mainly designed for inspection of dielectric protection coatings, and the coating emits a dark purple color to detect uncoated areas. We make it easy to discover. It is effective for fluorescent flaw detection of stress-stained parts such as welds and solder joints, and can also be used for the restoration of art objects in museums and the inspection of ores.
・The long arm provides smooth vertical and horizontal operation, allowing it to always remain in the correct position without wobbling.
The joint mechanism in the head allows the lighting and lens to rotate vertically, horizontally, and axially, allowing for a high degree of freedom in product installation.
・A model with a magnification of 3.5x is available, and the lens is fixed and cannot be replaced, but by using LUXO-PUL, it is possible to add magnification.

■Product name
led lighting magnifier
■Model name
WAVE LED UV (free arm type)
■Product specifications

lens
Magnification lineup 3.5 times
Lens dimensions (mm) 168×100
Lens material optical glass
Working distance (mm) 3.5x/120
Lens method Fixed type
AR (anti-reflection) coated lens lineup No settings
illumination
light source UV LED×2
color temperature 400nm
input voltage 100V・50/60Hz・A plug
power consumption 9W
Dimming function Yes/Step type (100-50-0%)
ESD compatible Not compatible
product weight WAVE LED 3.5x/approx. 3.4Kg
Arm length (mm) Approximately 1.050

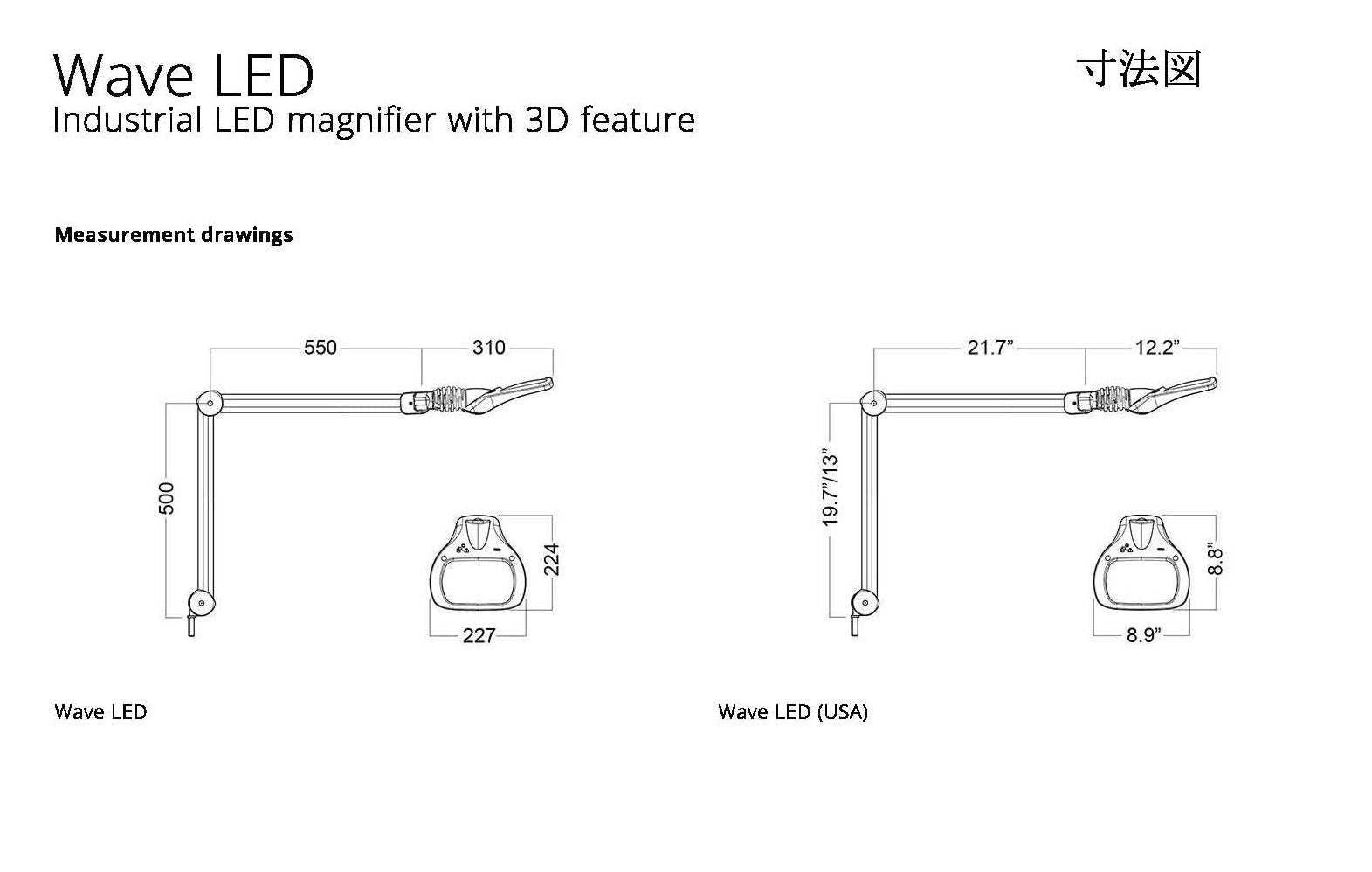

Head dimensions (mm) 227×224
Clampable width (mm) 8~70
Operating temperature limit 5℃~35℃
Dustproof/waterproof protection grade IP30 (for indoor use only)
  • 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
  • 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
  • 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
