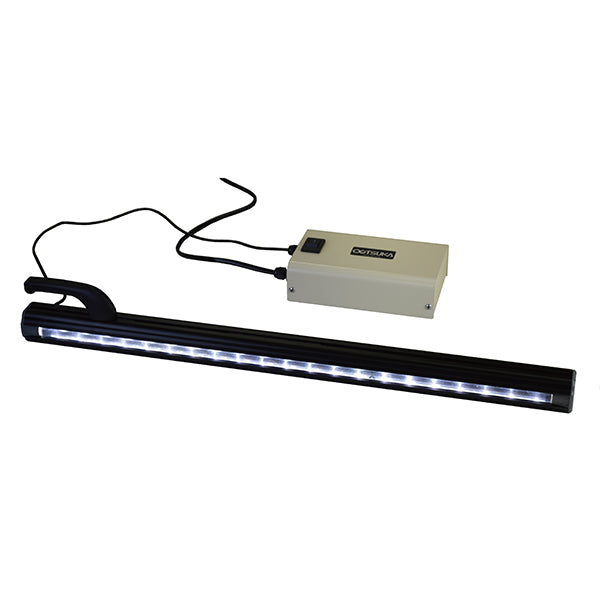

LED surface scratch inspection lighting

bar light 530

bar light 530

Regular price $927.00
Regular price Sale price $927.00
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

■Product features
The bar light series uses a combination of high-intensity LEDs and lenses arranged in parallel to irradiate a flat beam of light onto an object, eliminating uneven defects such as minute scratches, dust, and sink marks on the surface. This is an inspection lighting for easier detection.
Barlight 530 has a beam irradiation width three times that of normal products (compared to Type II), making it possible to handle large workpieces that were difficult to handle with conventional products.
Additionally, in order to accommodate larger product sizes, we offer a wide range of mounting options such as table stands, clamp stands, and free arms.
The Barlight 530 type does not have the ability to adjust the light intensity or the spread angle of the light beam; they are all fixed.
As an option, we offer the ``Barlight Free Arm,'' which is suitable for environments that require a degree of freedom.
■Product name
LED surface scratch inspection lighting
■Model name
bar light type 530
■Product specifications

lighting
light source 21 high brightness white LEDs
input voltage 100-240V/50/60Hz/A plug *Voltage cannot be changed.
Illuminance (irradiation spread angle 6°/actual value) 150mm/19000Lx, 200mm/15000Lx, 300mm/10300Lx, 400mm/7100Lx
power consumption 24W
Dimming function none
Irradiation spread angle adjustment function None/Fixed
Power cord length (mm) Power cord: 1800
Main body
Product weight (g) 1.6kg (irradiation head only/800g)

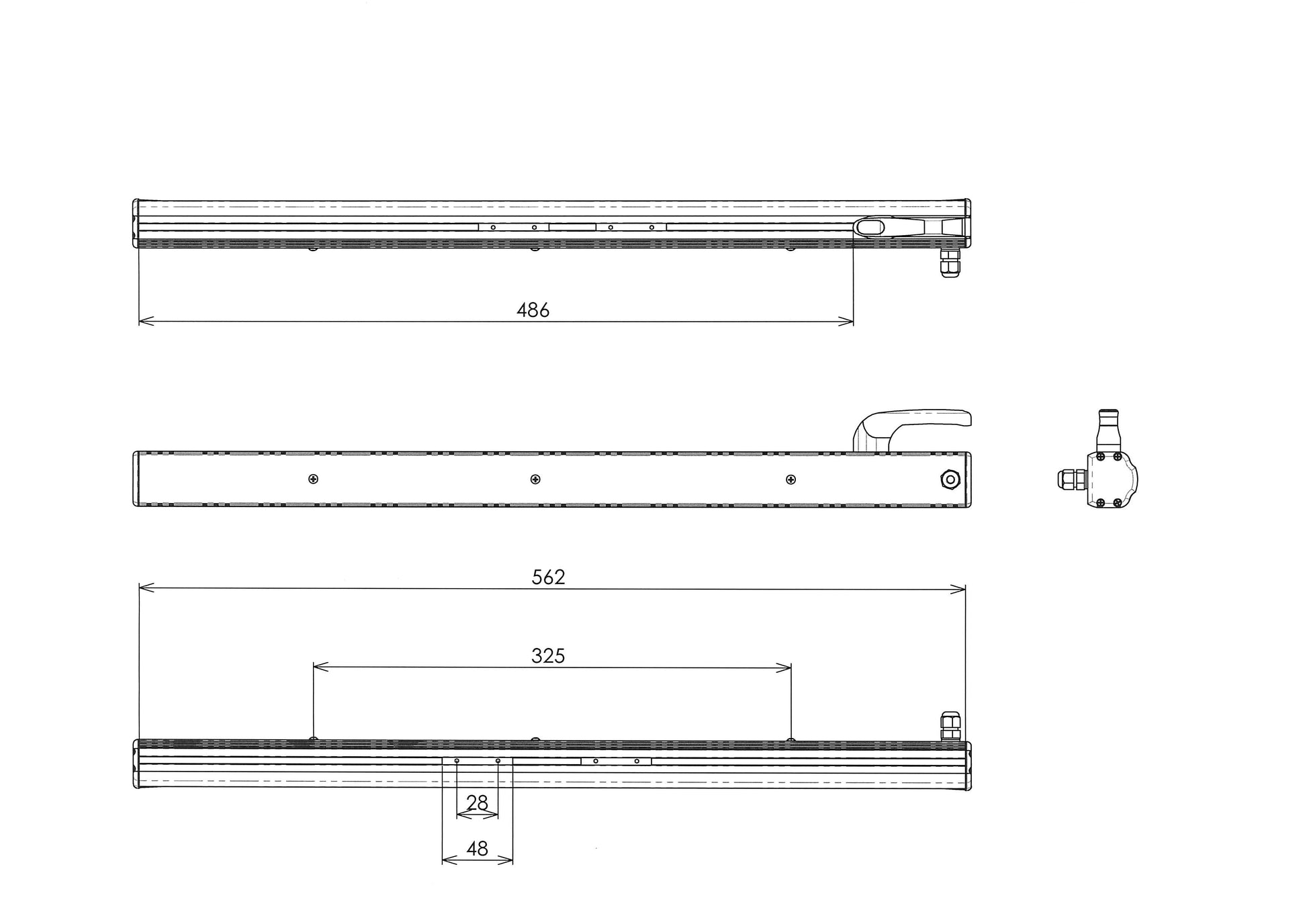

Irradiation head dimensions (mm) 530×34×38H
Power supply part dimensions (mm) 165×99×48H
Operating temperature limit 0℃~40℃
Dustproof/waterproof protection grade IP40
  • 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
  • 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
  • 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
