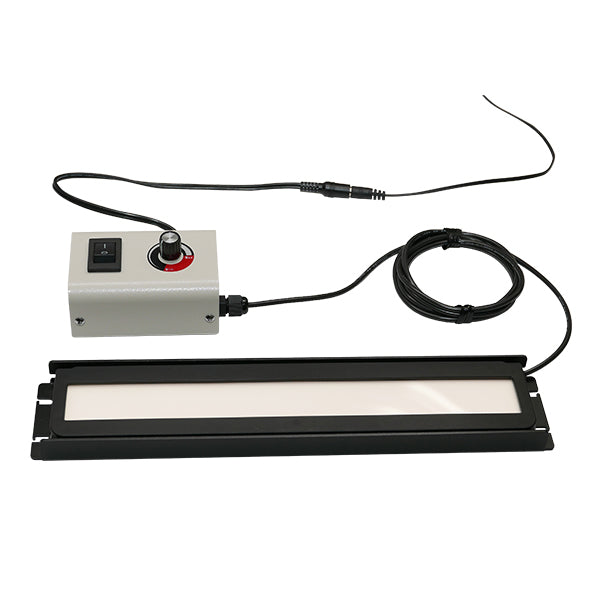

Organic EL undershelf lighting
TE270S
TE270S
Regular price
¥58,300
Regular price
Sale price
¥58,300
Unit price
/
per
Tax included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
■Product features
・Next-generation inspection lighting This is an inspection lighting that can be placed freely according to the usage environment.
-The TE270 series allows for flexible placement of the positional relationship between the light and the workpiece.
■Product name
Organic EL undershelf lighting
■Model name
TE270S
■Product specifications
lighting | |
---|---|
light source | organic EL lighting panel |
Rated input voltage | 100-240V, 50/60Hz, A plug *By changing the cord with AC plug, it can be used up to 125-240V. |
Rated power consumption | 7W |
Illuminance adjustment function | Yes (100%~10%) |
Illuminance directly below the center (Max) | 1120LX/150mm 360X/300mm 150LX/500mm (Actual sampling value, according to our measurement method) |
Illuminance directly below the center (Min) | 80LX/150mm 25LX/300mm 10LX/500mm (Actual measured value, according to our measurement method) |
color temperature | 4000K (white) |
Average color rendering index (Ra) | 90 |
Light emitting surface size (mm) | L273×W30 |
Total luminous flux (lm) | 200 (per panel) |
AC adapter model and rating | UNIFIVE336-2415(24V/1.5) Weight: 270g |
Main body | |
Weight (Kg) | 0.6 (including body weight controller) |
Dustproof/waterproof protection grade | IP20 (for indoor use only) |
- 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
- 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
- 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
