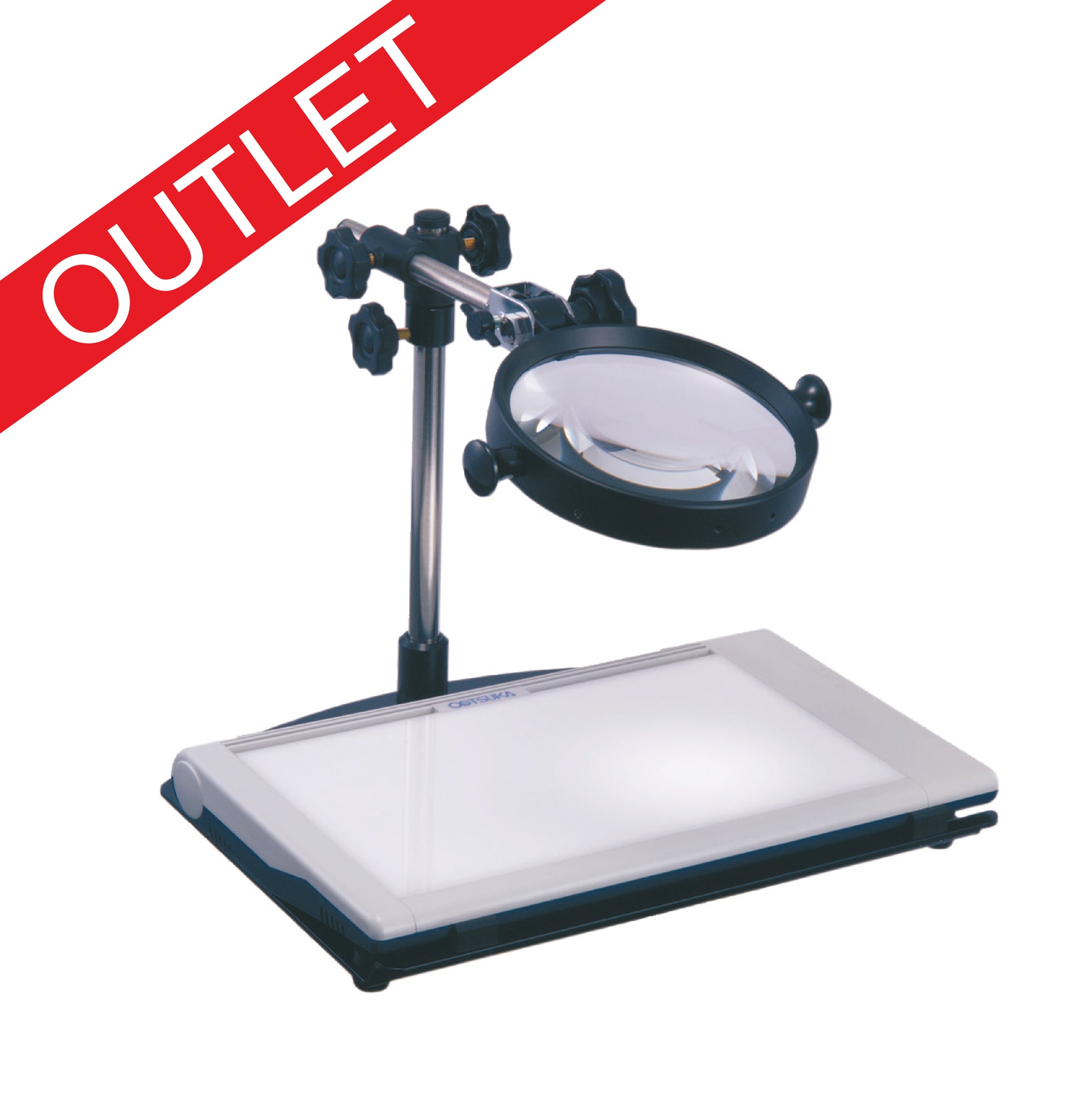

Small light box with magnifying glass “Toru-kun”
OTS 3
OTS 3
Regular price
¥65,450
Regular price
Sale price
¥65,450
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
This product is an outlet item.
We sell these products at low prices due to long-term inventory, outdated products (discontinued products), defective packaging, etc.
There will be no additional production or sales as this will be sold out while supplies last.
The product itself is unused.
*We do not accept inquiries regarding outlet products.
Please understand this before placing your order.
■Product features
- The lens of the OTS-3 model "Toru-kun" is equipped with an AR (anti-reflection) coating as standard, so there is no trouble with indoor light or external light reflecting on the top of the lens, making work easier. .
- An 8W straight fluorescent tube is used for transmitted illumination, supporting work with uniform transmitted illumination.
■Product name
Small light box with magnifying glass
■Product specifications
| lens | |
|---|---|
| magnification | 3x AR coated lens |
| Lens dimensions/eyepiece diameter (mm) | Φ130 |
| Lens material | optical glass |
| Working distance (mm) | 130 |
| Field of view (mm) | Φ120 |
| Lens method | Fixed type |
| AR (anti-reflection) coated lens lineup | standard equipment |
| illumination | |
| light source | 8W straight fluorescent tube (FL8) x 1 (inside light box) |
| input voltage | AC100V/50/60Hz/A plug (with AC adapter/inside light box) |
| power consumption | 16W |
| Dimming function | none |
| Main body | |
| Weight (Kg) | 4.4 |

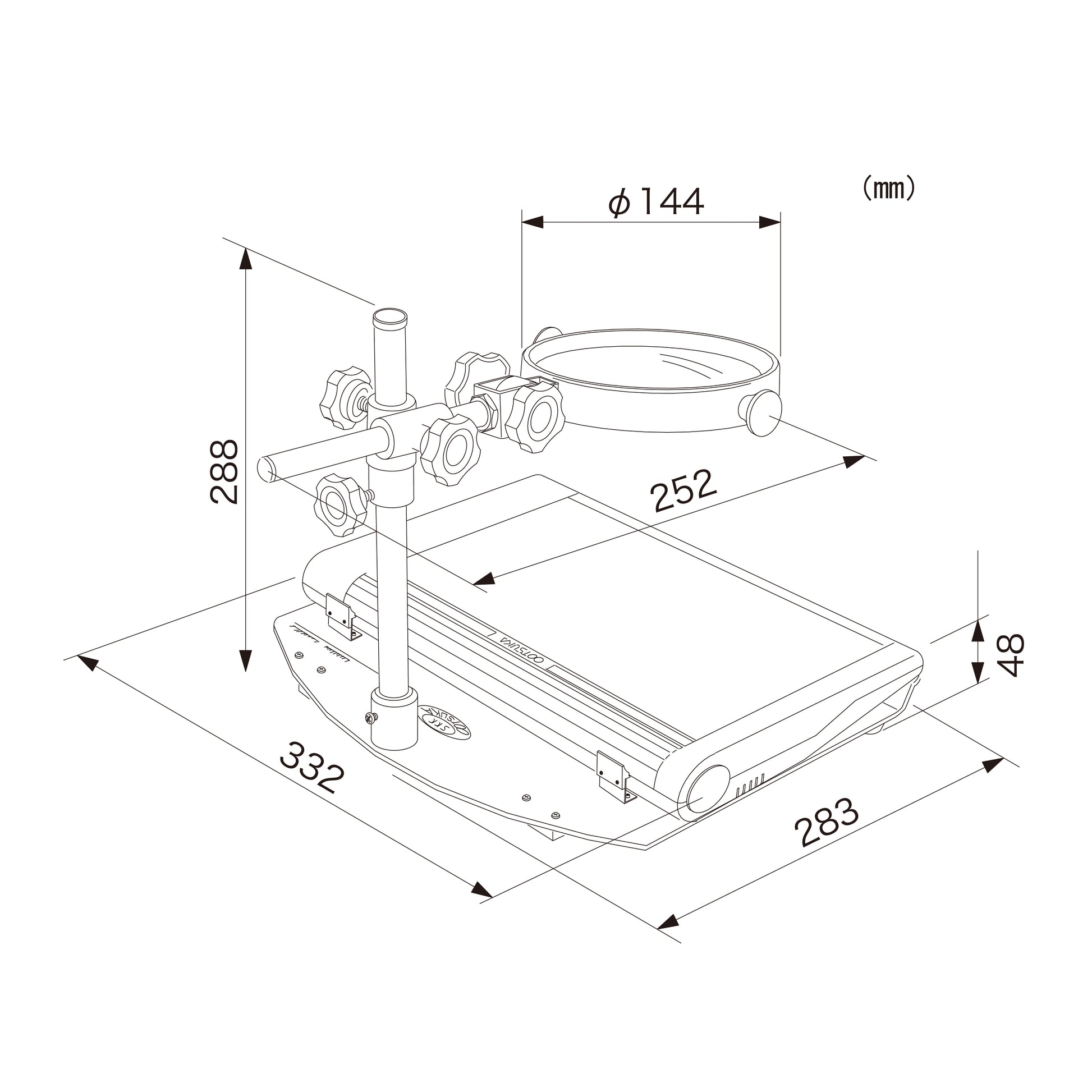

| Body dimensions (mm) | 332x283x288 |
| Head dimensions (mm) | Φ144 |
| Post/horizontal bar (diameter/mm) | Φ16/Φ13 |
| Light box part dimensions (mm) | 335×206×36H |
| Transmitted illumination part dimensions (mm) | 260×150 |
