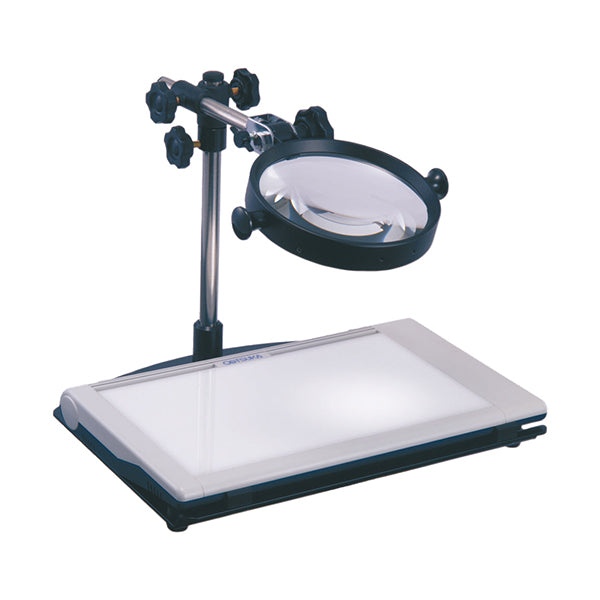

Small light box with magnifying glass OTS-3 “Toru-kun”
Small light box with magnifying glass OTS-3 “Toru-kun”
Regular price
¥93,500
Regular price
Sale price
¥93,500
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
■Product features
・The lens of the OTS-3 model "Toru-kun" is equipped with an AR (anti-reflection) coating as standard, so there is no trouble of indoor light or external light reflecting on the top of the lens, making work easier. Masu.
・8W straight fluorescent tubes are used for transmitted illumination, supporting work with uniform transmitted illumination.
■Product name
Small light box with magnifying glass
■Product specifications
| lens | |
|---|---|
| magnification | 3x AR coated lens |
| Lens dimensions/eyepiece diameter (mm) | Φ130 |
| Lens material | optical glass |
| Working distance (mm) | 130 |
| Field of view (mm) | Φ120 |
| Lens method | Fixed type |
| AR (anti-reflection) coated lens lineup | standard equipment |
| illumination | |
| light source | 8W straight fluorescent tube (FL8) x 1 (inside light box) |
| input voltage | AC100V/50/60Hz/A plug (with AC adapter/inside light box) |
| power consumption | 16W |
| Dimming function | none |
| Main body | |
| Weight (Kg) | 4.4 |
| Body dimensions (mm) | 332x283x288 |
| Head dimensions (mm) | Φ144 |
| Post/horizontal bar (diameter/mm) | Φ16/Φ13 |
| Light box part dimensions (mm) | 335×206×36H |
| Transmitted illumination part dimensions (mm) | 260×150 |
