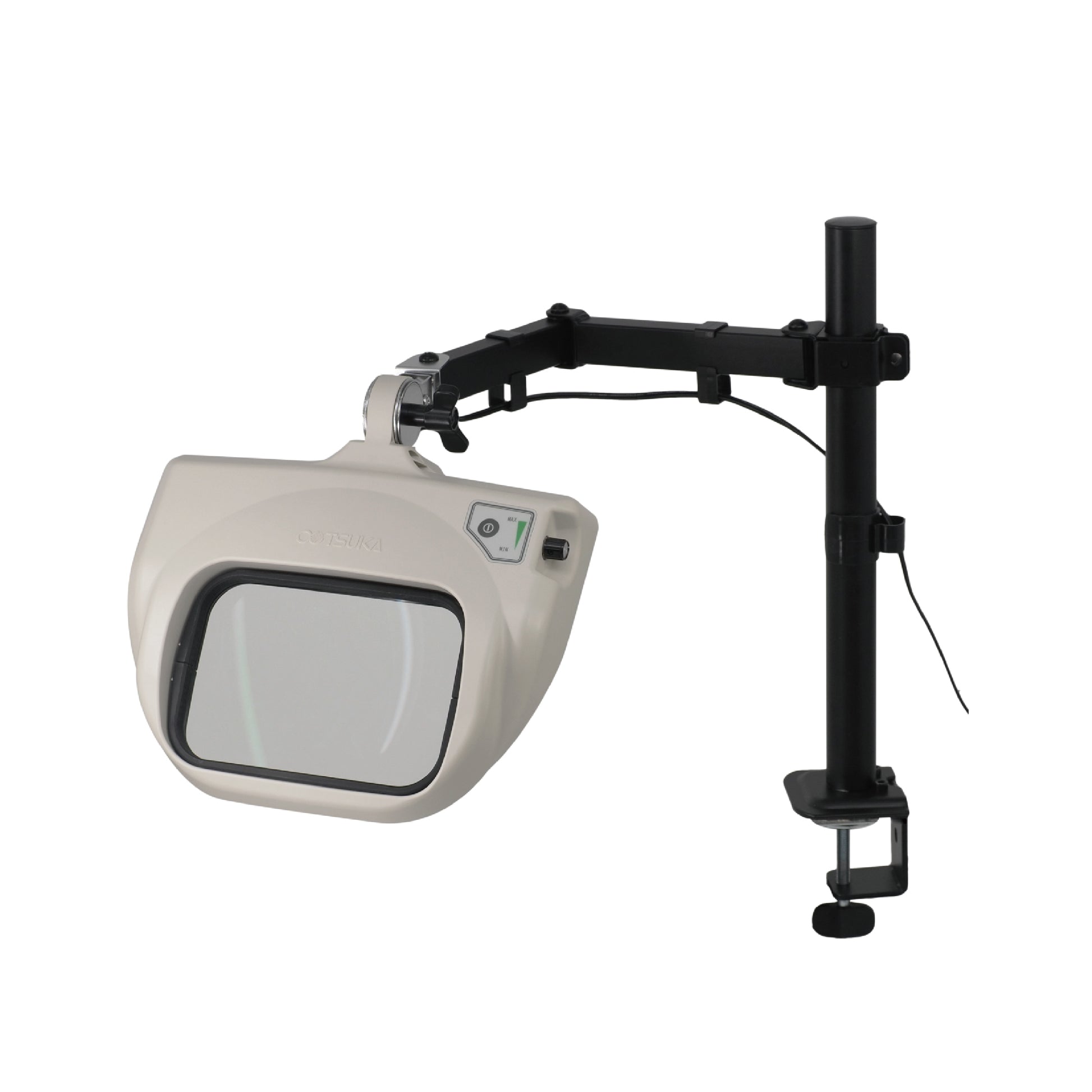

OLED lighting magnifier
OLIGHT6-SA
OLIGHT6-SA
In stock
Couldn't load pickup availability
■Product features

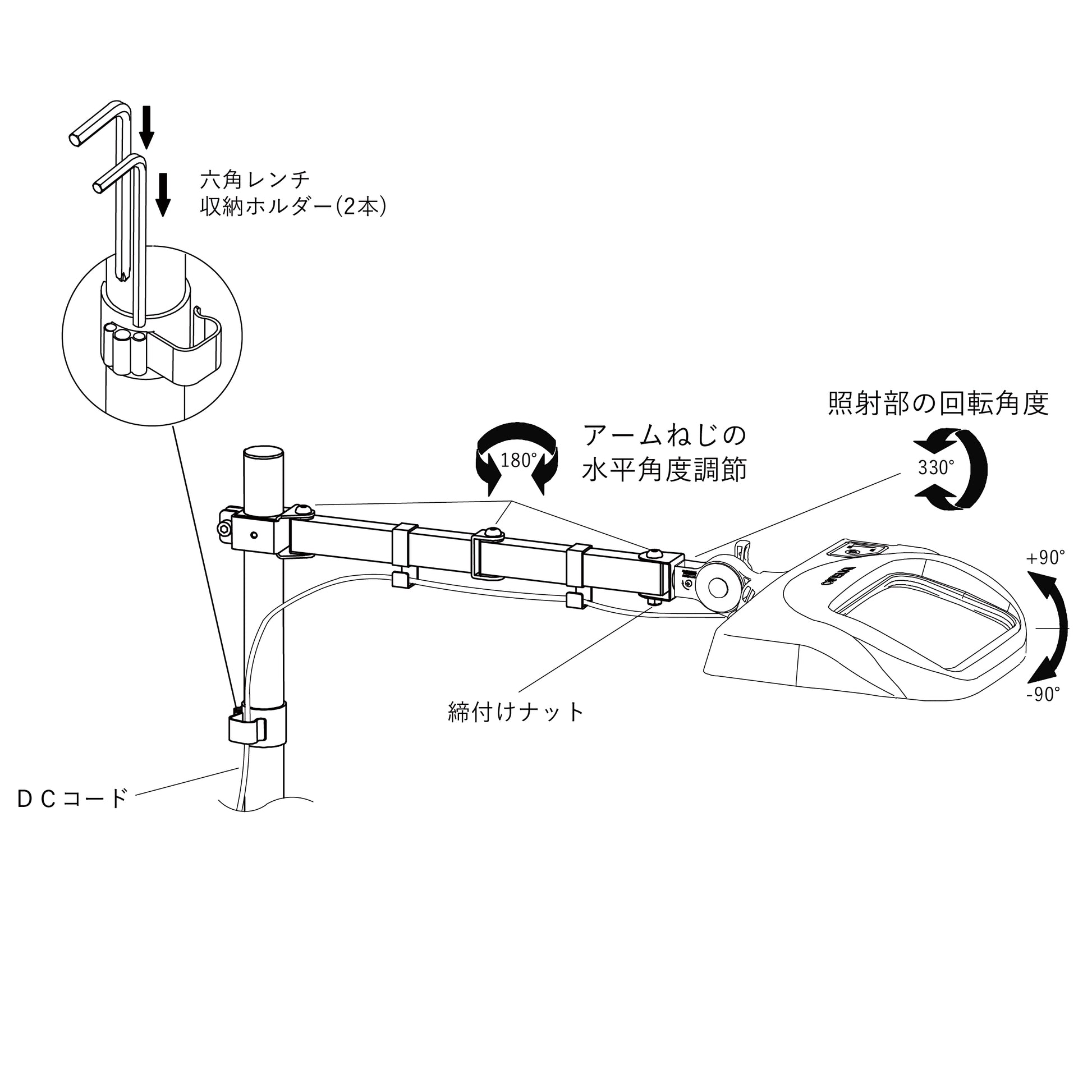

・The world's first full-fledged organic EL lighting magnifier ・A revolutionary lighting magnifier that allows you to illuminate the light source by changing the angle of the panel (You can freely change the lighting angle from 0° to 90° (It is now possible to perform inspections by changing the irradiation angle.)
・The latest and best lens Adopts a large rectangular lens that approximates the human visual field. Furthermore, the lens surface is equipped with an anti-reflection coating as standard. The magnification is 2x and 4x, and it is an interchangeable lens system.
■Product name Organic EL lighting magnifier
■Model name
OLIGHT6-F (free arm type/clamp mounting type)
■Product specifications
| lens | |
|---|---|
| Magnification lineup | 2XAR,4XAR |
| Effective lens dimension (mm) | 180×120 |
| Lens material | optical glass |
| Working distance (mm) | 2X:160,4X:100 |
| Lens method | BIG-Rector Interchangeable Lens System |
| AR (anti-reflection) coat | standard equipment |
| lighting | |

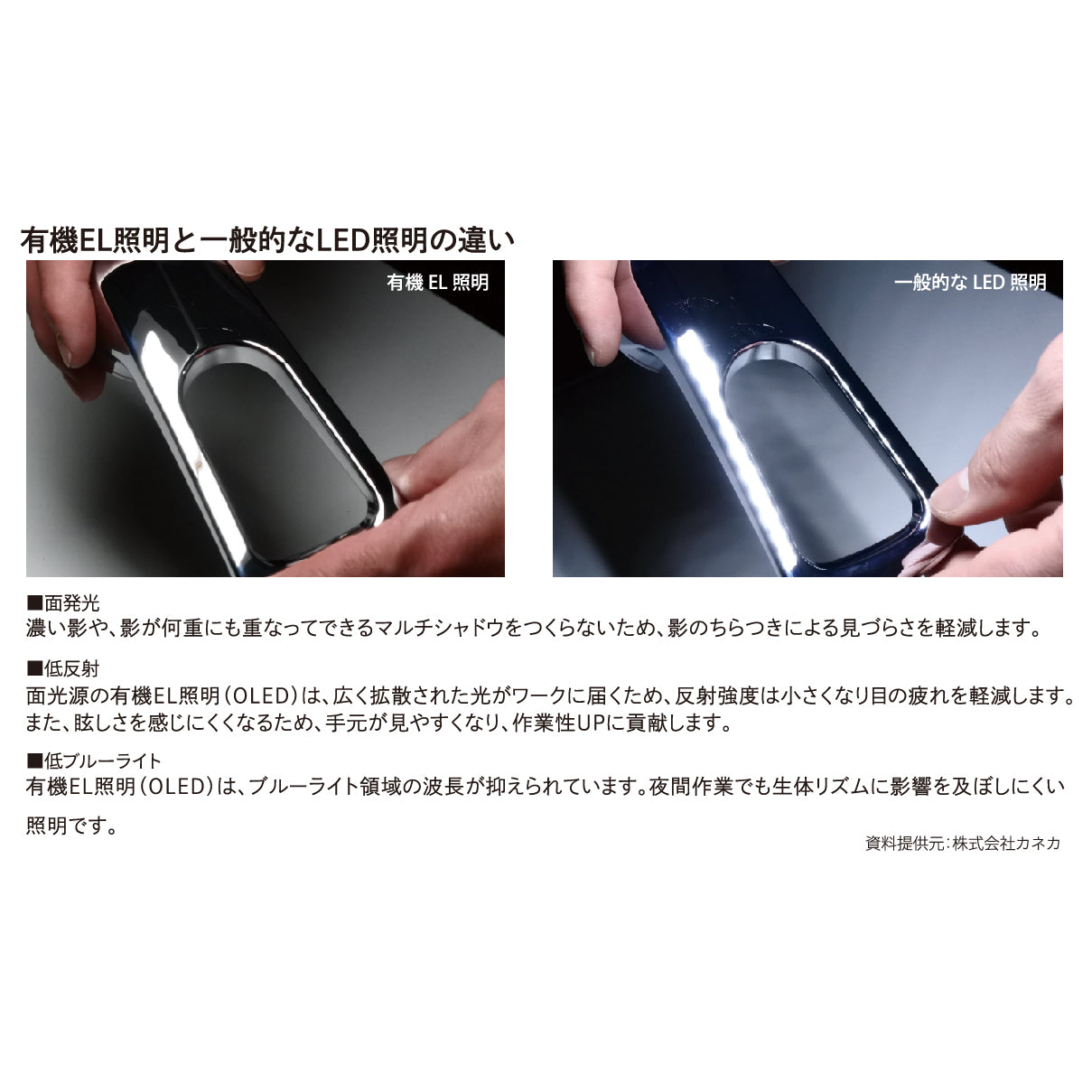

| light source | organic EL lighting panel |
| Dimming function | Yes (100%~10%) |
| Rated power consumption | 7W |
| color temperature | 4000K (white) |
| Total luminous flux (lm) | 200 (per panel) |
| Average color rendering index (Ra) | 90 |
| Light emitting surface size (mm) | L273×W30 |
| Rated input voltage | AC100V to 240V 50/60Hz Can be used up to 240V by changing only the AC cord. |
| AC adapter model and rating | UNIFIVE336-2415 (24V/1.5) Weight: 270g |
| Illuminance directly below the center (Max) | 1820LX/100mm 1120LX/150mm 360LX/300mm (actual sampled values, according to our measurement method) |
| Illuminance directly below the center (Min) | 130LX/100mm 80LX/150mm 25LX/300mm (actual sampled values, according to our measurement method) |
| Main body | |
| Weight (Kg) | 2.3 (excluding lens weight) |

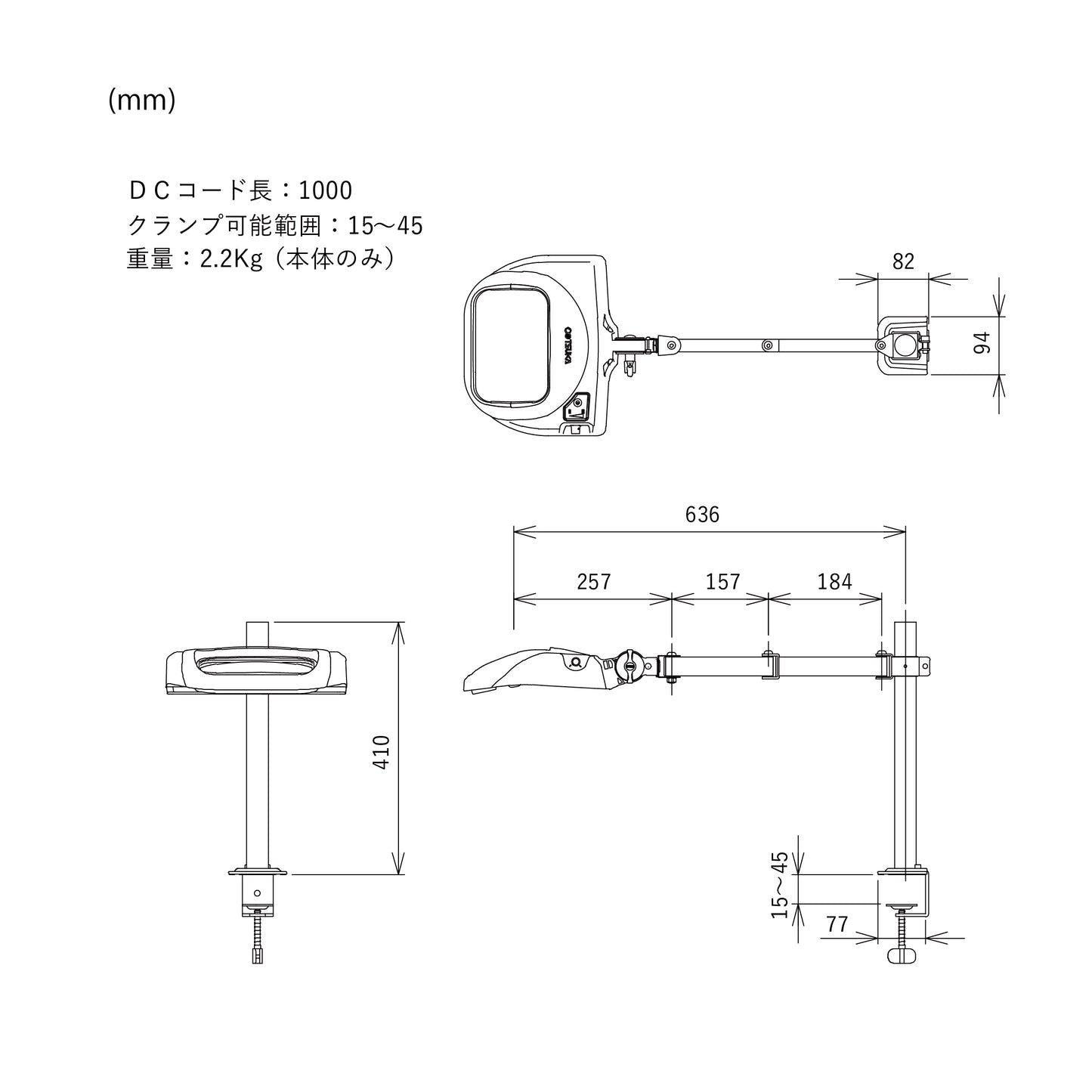

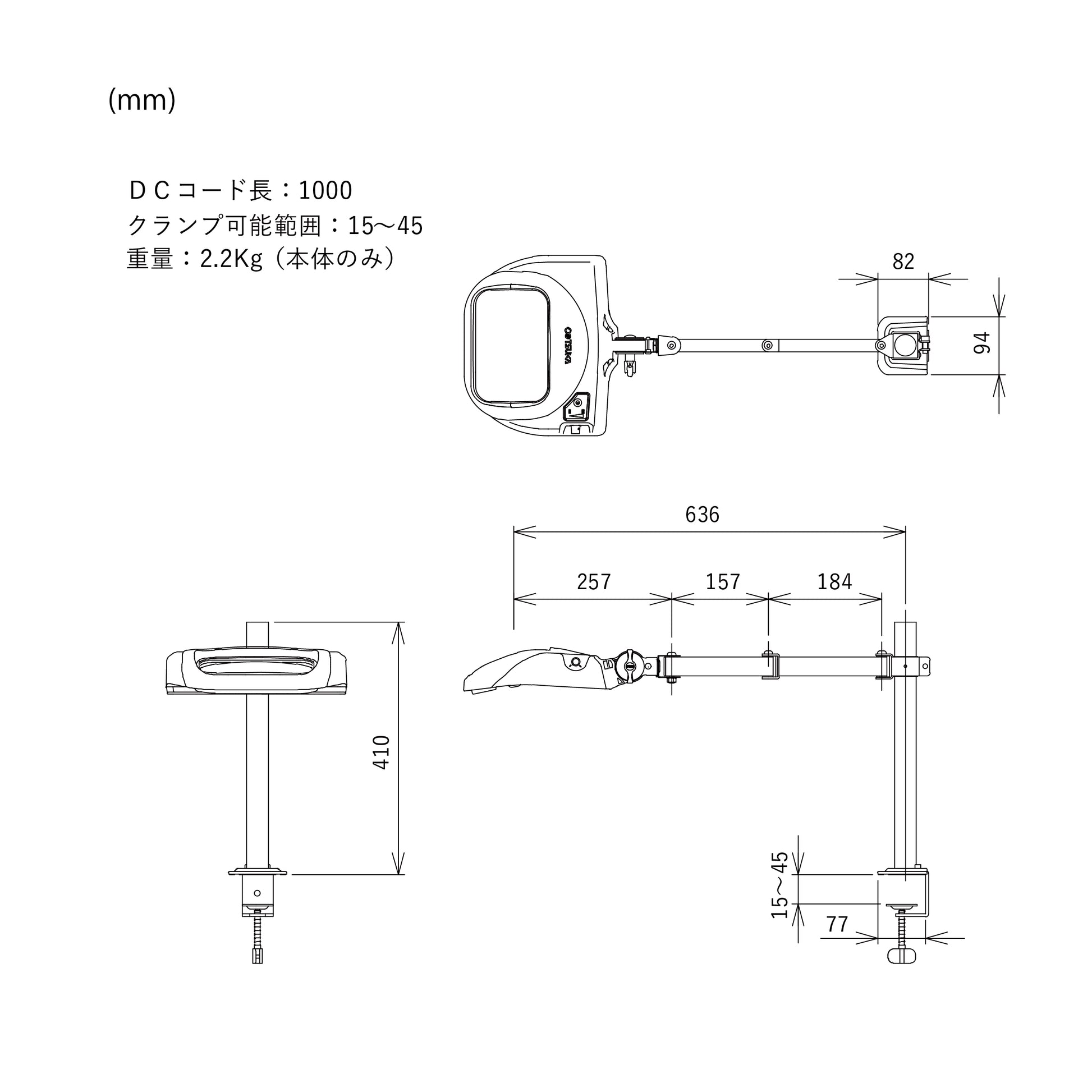

| Clampable width (mm) | 10～60 (plate thickness) |
| Dustproof/waterproof protection grade | IP20 (for indoor use only) |
| Operating temperature limit | 5℃～35℃ |
