OLED lighting magnifier



Regular price ¥101,200
Regular price Sale price ¥101,200
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

■Product features
・An innovative lighting magnifier that can illuminate the light source by changing the angle of the panel (The lighting angle can be freely changed from 0° to 90°. It is possible to perform inspections by changing the irradiation angle. became.)
・The latest and best lens Adopts a large rectangular lens that approximates the human visual field. Furthermore, the lens surface is equipped with an anti-reflection coating as standard. The magnification is 2x and 4x, and it is an interchangeable lens system.
■Product name

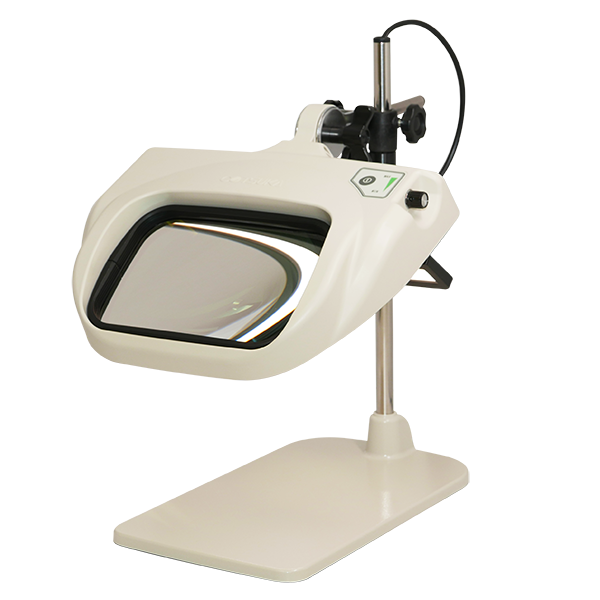

OLED lighting magnifier
■Model name
OLIGHT6-B (table stand type)
■Product specifications

Magnification lineup 2XAR,4XAR
Effective lens dimension (mm) 180×120
Lens material optical glass
Working distance (mm) 2X:160,4X:100

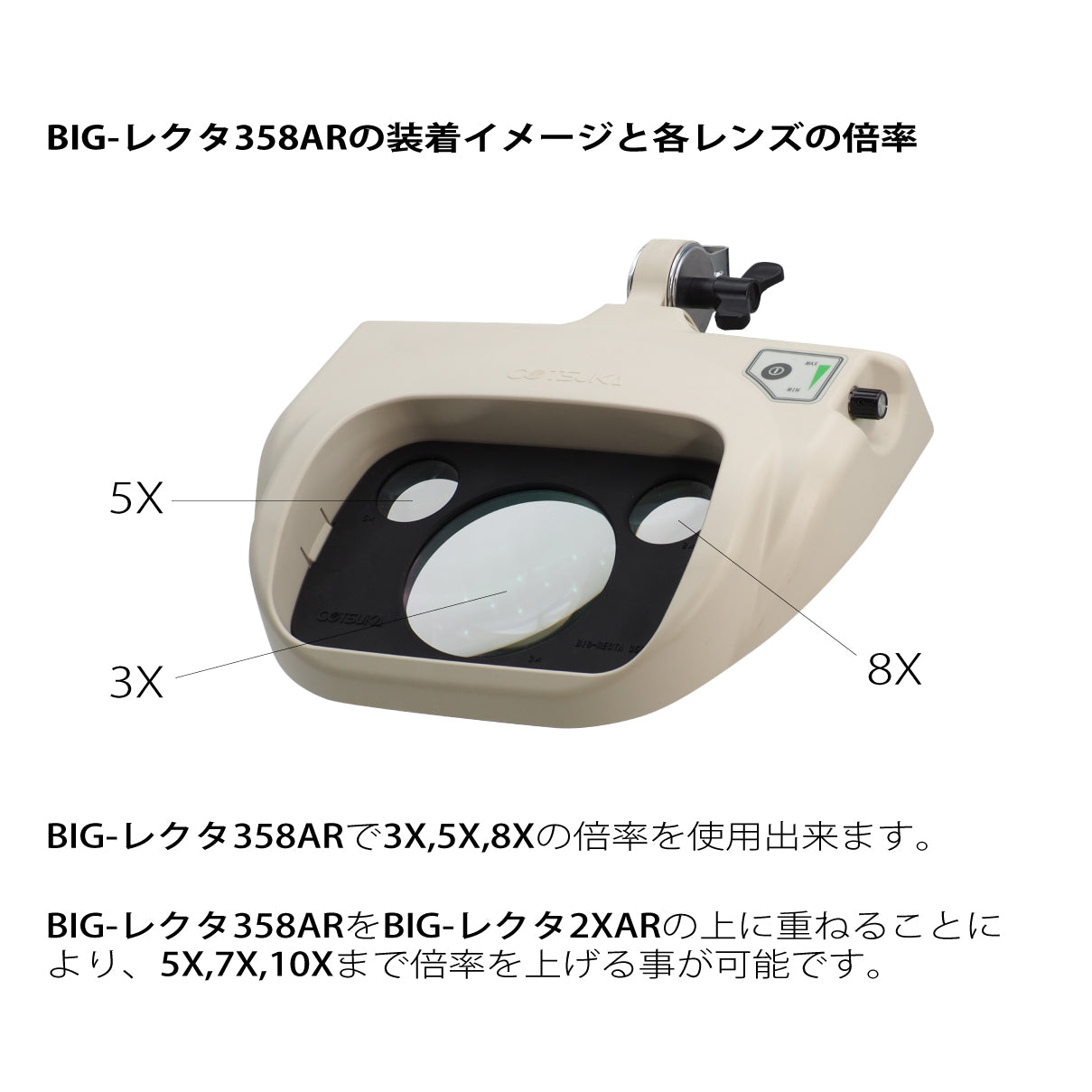

Lens method BIG-Rector Interchangeable Lens System
AR (anti-reflection) coat standard equipment
light source organic EL lighting panel
Dimming function Yes (100%~10%)
Rated power consumption 7W
color temperature 4000K (white)
Total luminous flux (lm) 200
Average color rendering index (Ra) 90
Light emitting surface size (mm) L273×W30
Rated input voltage AC100V to 240V 50/60Hz Can be used up to 240V by changing only the AC cord.
AC adapter model and rating UNIFIVE336-2415(24V/1.5) Weight: 270g
Illuminance directly below the center (Max) 1820LX/100mm 1120LX/150mm 360LX/300mm (actual sampled values, according to our measurement method)
Illuminance directly below the center (Min) 130LX/100mm 80LX/150mm 25LX/300mm (actual sampled values, according to our measurement method)
Main body
Weight (Kg) 2.4 (excluding lens weight)
Dustproof/waterproof protection grade IP20 (for indoor use only)
Operating temperature limit 5℃~35℃
  • 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
  • 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
  • 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
