led lighting magnifier
OLIGHT5-SA
OLIGHT5-SA
In stock
Couldn't load pickup availability
■Product features

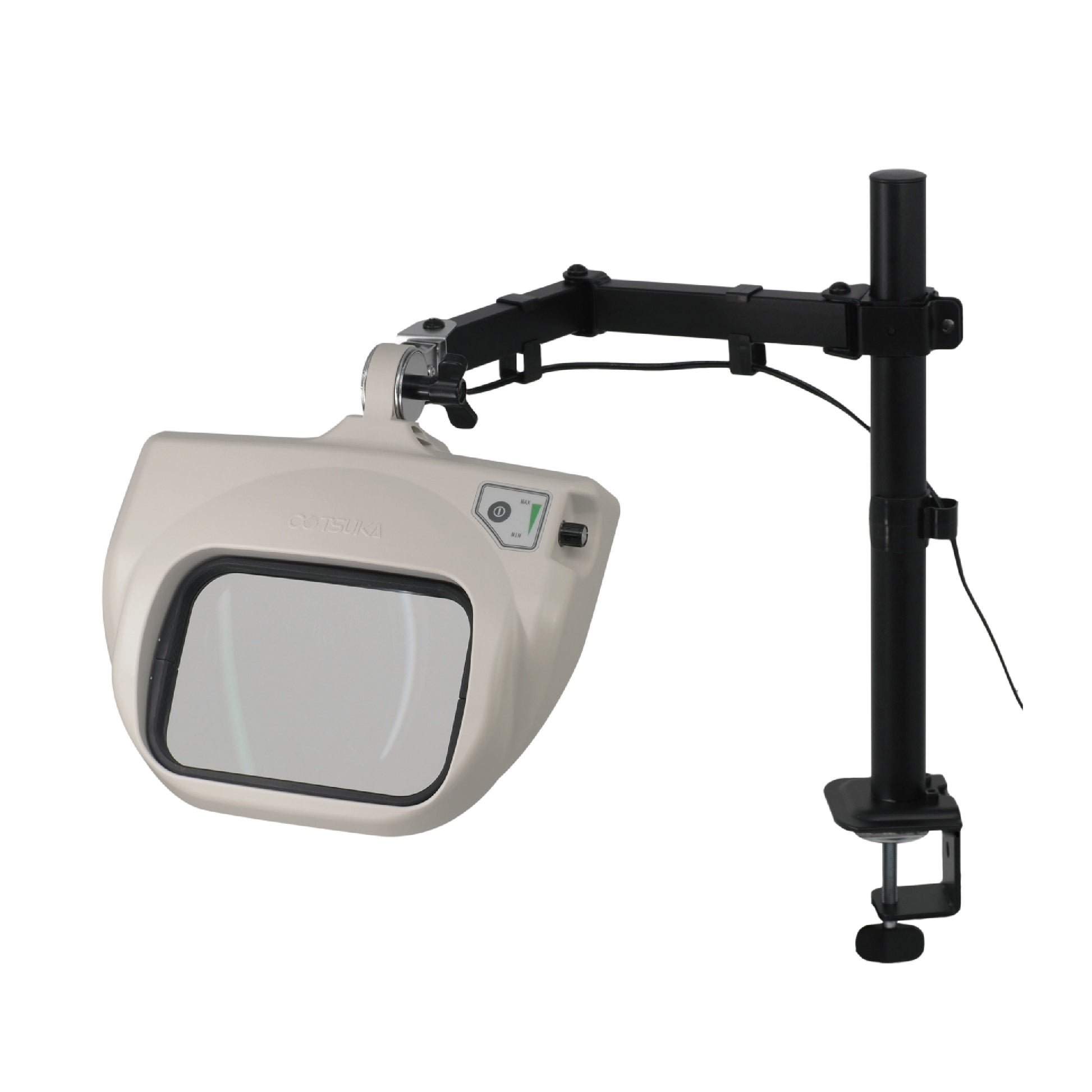

・OLIGHT5-F is a free arm type product that can be clamped to a desk.
- The conventional square lens has been made larger and the lens area has been expanded by approximately 150%.
- The light intensity adjustment range has been significantly expanded from the conventional 100% to 50% to 100% to 10%.
- AR coating* has been standardized to reduce eye fatigue even when used for long periods of time.
- The square lens eliminates the distortion around the lens periphery that occurs with round lenses, making it suitable for long hours of work.
・The ON/OFF switch is placed on the head to improve operability.

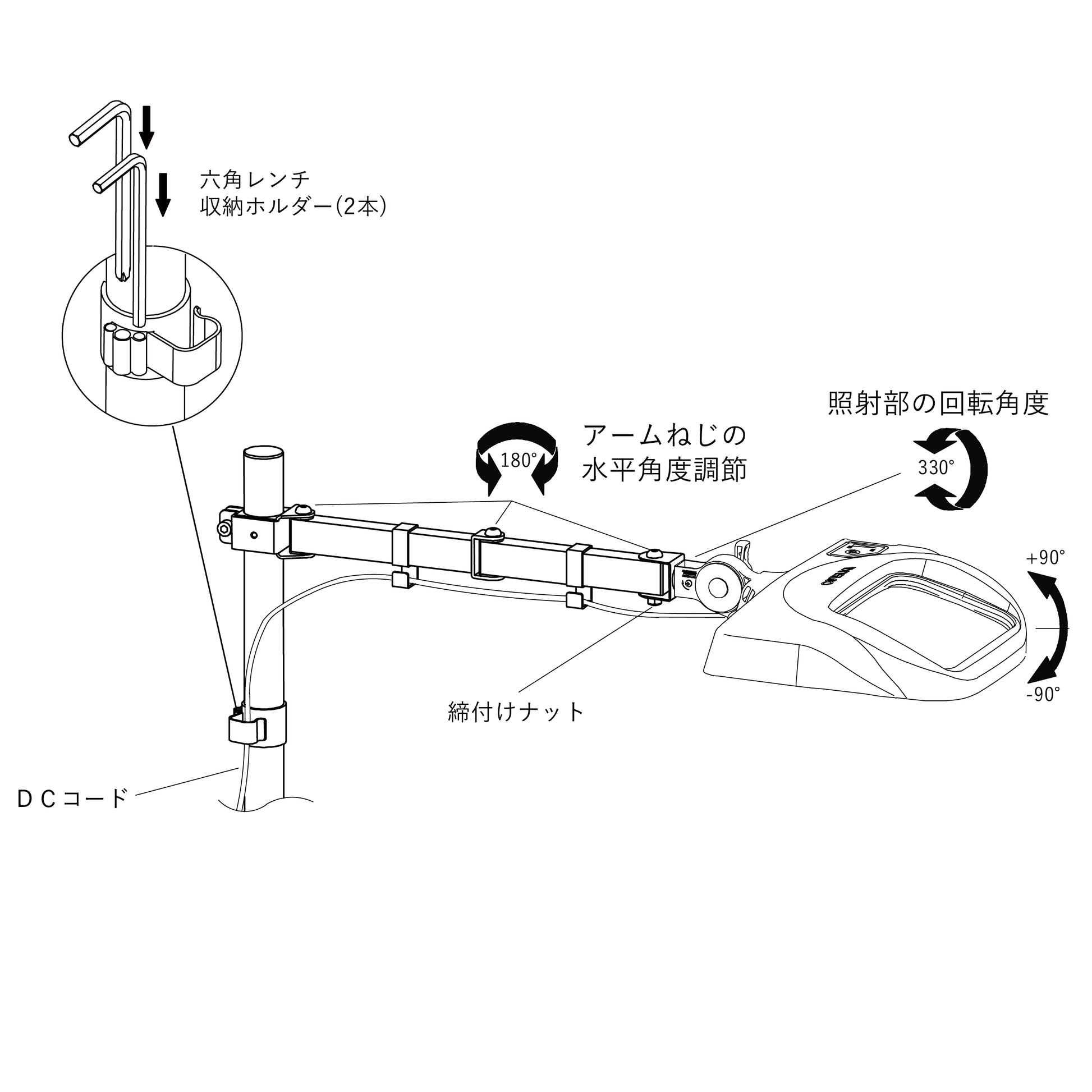

- The newly designed clamp mounting part takes into consideration strength and workability, and is compact so it does not interfere with the work space.
・An AC adapter is used as the power source.
■Product name
LED illuminated magnifier
■Model name
OLIGHT5-F (free arm type)
■Product specifications
| lens | |
|---|---|
| Magnification lineup | 2XAR,4XAR |

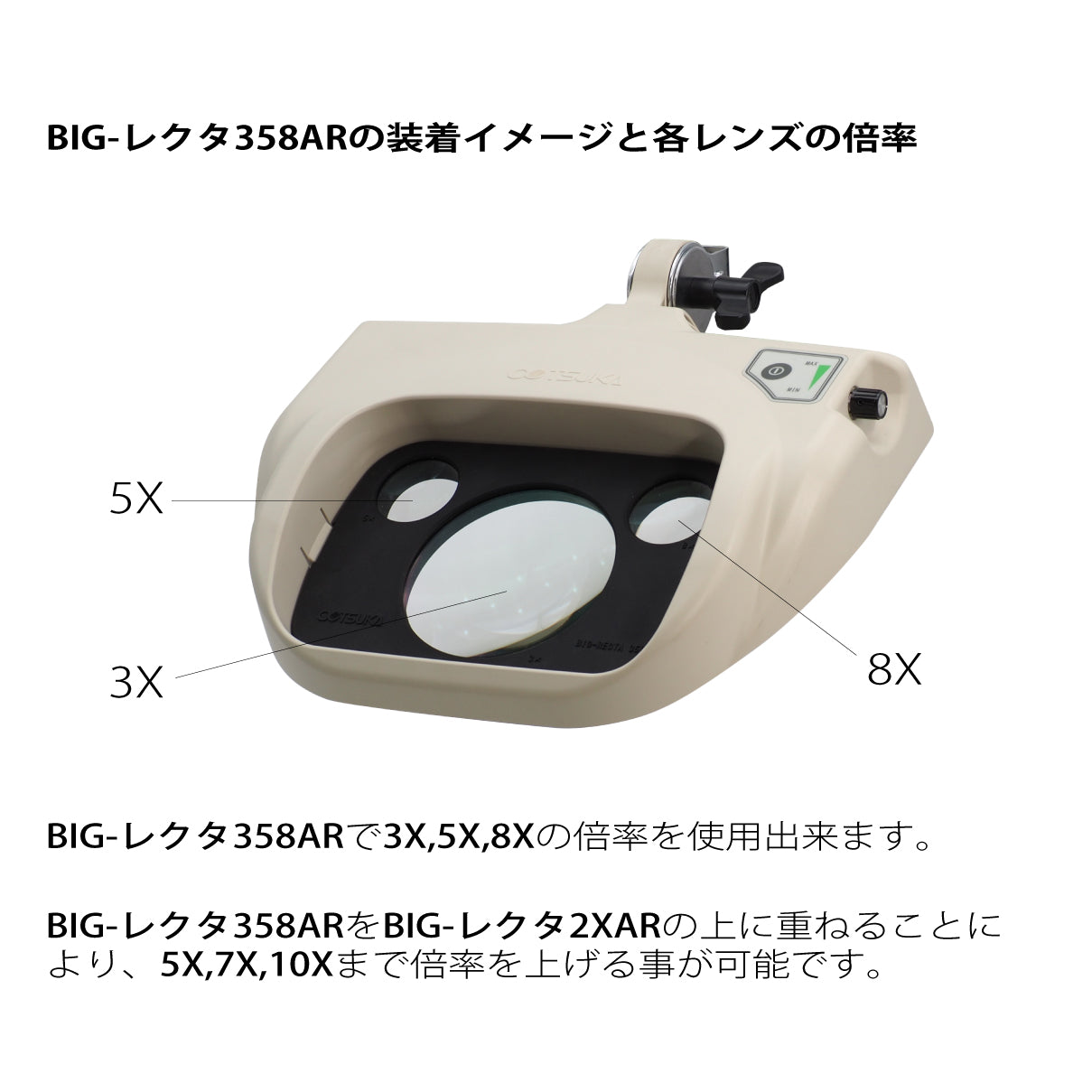

| Lens method | BIG-Rector Interchangeable Lens System |
| Effective lens dimension (mm) | 180×120 |
| Lens material | optical glass |
| Working distance (mm) | 2x: 160, 4x: 100 |
| AR (anti-reflection) coated lens lineup | standard equipment |
| lighting | |
| light source | white led light panel |
| input voltage | 100V~240V・50/60Hz・A plug |
| power consumption | 9W |
| Dimming function | 100%~10% |
| Main body | |

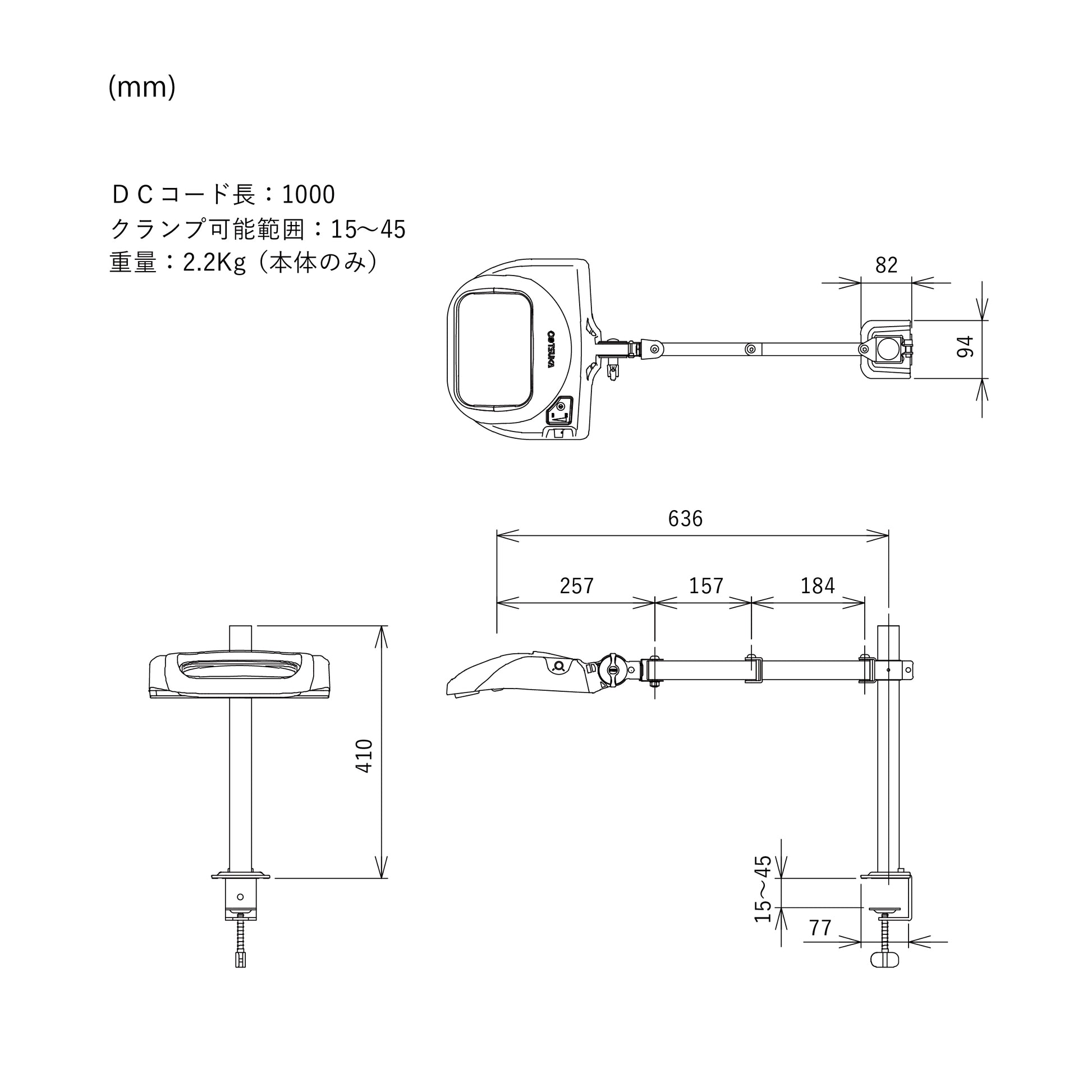

| Weight (Kg) | 2.2 (excluding lens weight) |
| Overall height (mm) | 481 |
| Arm length (mm) | 770 |
| Clampable width (mm) | 15-60 |
