led lighting magnifier

OLIGHT5-F

OLIGHT5-F

Regular price ¥108,900
Regular price Sale price ¥108,900
Sale Sold out
Tax included. Shipping calculated at checkout.
magnification

In stock

■Product features

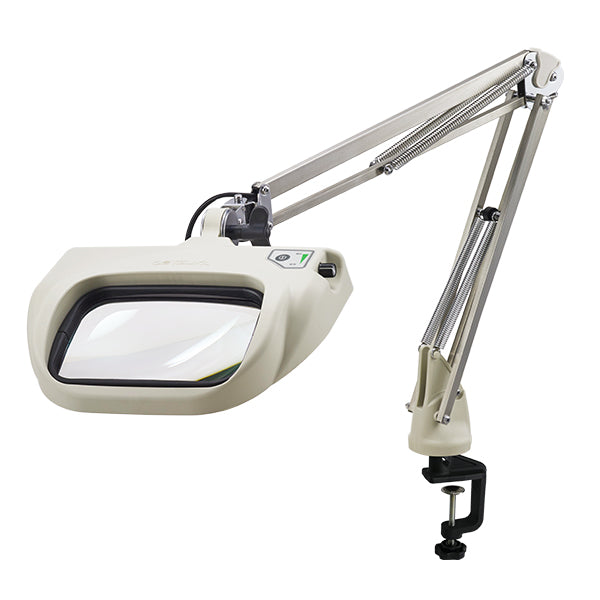

・OLIGHT5-F is a free arm type product that can be clamped to a desk.
- The conventional square lens has been made larger and the lens area has been expanded by approximately 150%.
- The light intensity adjustment range has been significantly expanded from the conventional 100% to 50% to 100% to 10%.
- AR coating* has been standardized to reduce eye fatigue even when used for long periods of time.
- The square lens eliminates the distortion around the lens periphery that occurs with round lenses, making it suitable for long hours of work.
・The ON/OFF switch is placed on the head to improve operability.
- The newly designed clamp mounting part takes into consideration strength and workability, and is compact so it does not interfere with the work space.
・An AC adapter is used as the power source.
■Product name
LED illuminated magnifier
■Model name
OLIGHT5-F (free arm type)
■Product specifications

lens
Magnification lineup 2XAR,4XAR

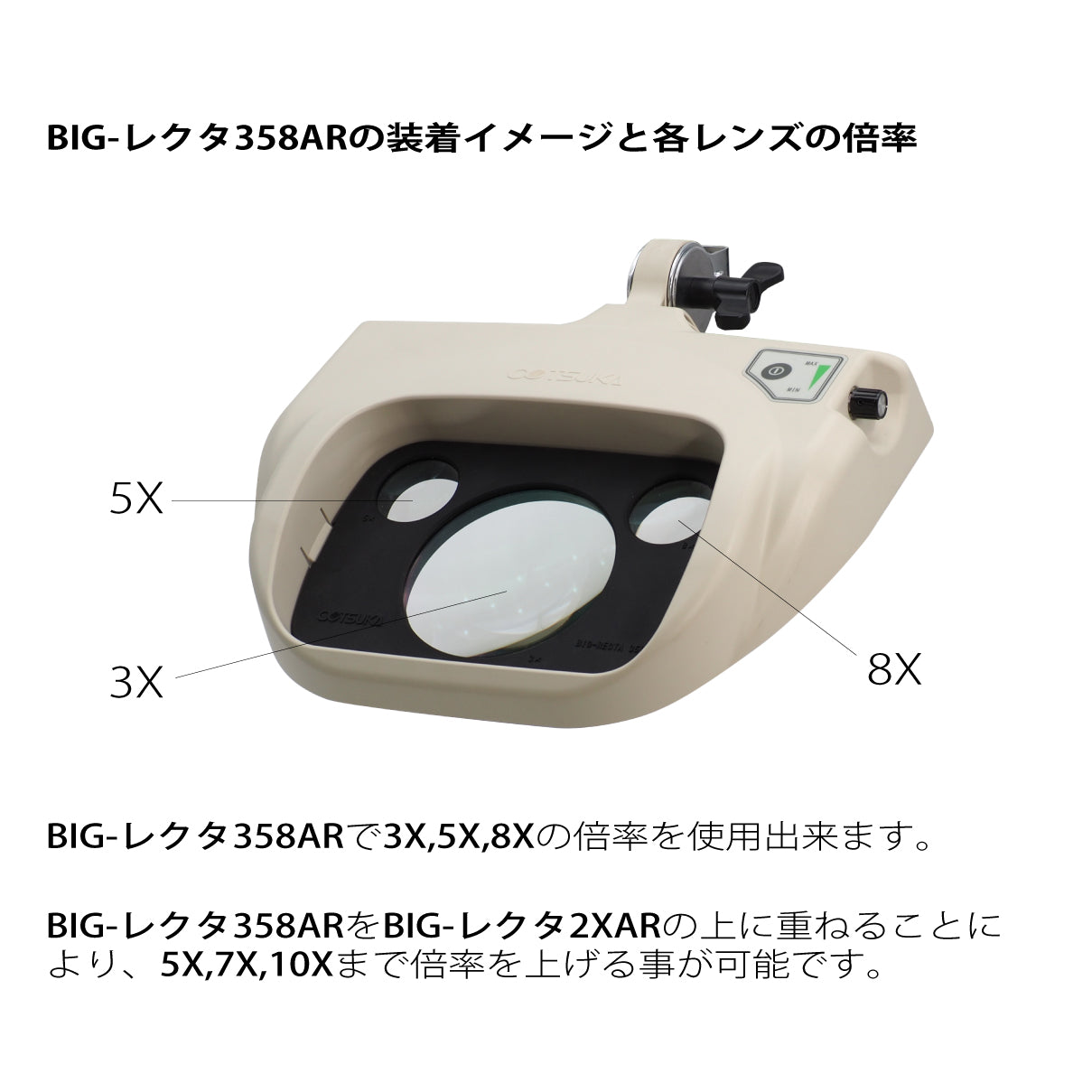

Lens method BIG-Rector Interchangeable Lens System
Effective lens dimension (mm) 180×120
Lens material optical glass
Working distance (mm) 2x: 160, 4x: 100
AR (anti-reflection) coated lens lineup standard equipment
lighting
light source white led light panel
input voltage 100V~240V・50/60Hz・A plug
power consumption 9W
Dimming function 100%~10%
Main body
Weight (Kg) 2.2 (excluding lens weight)

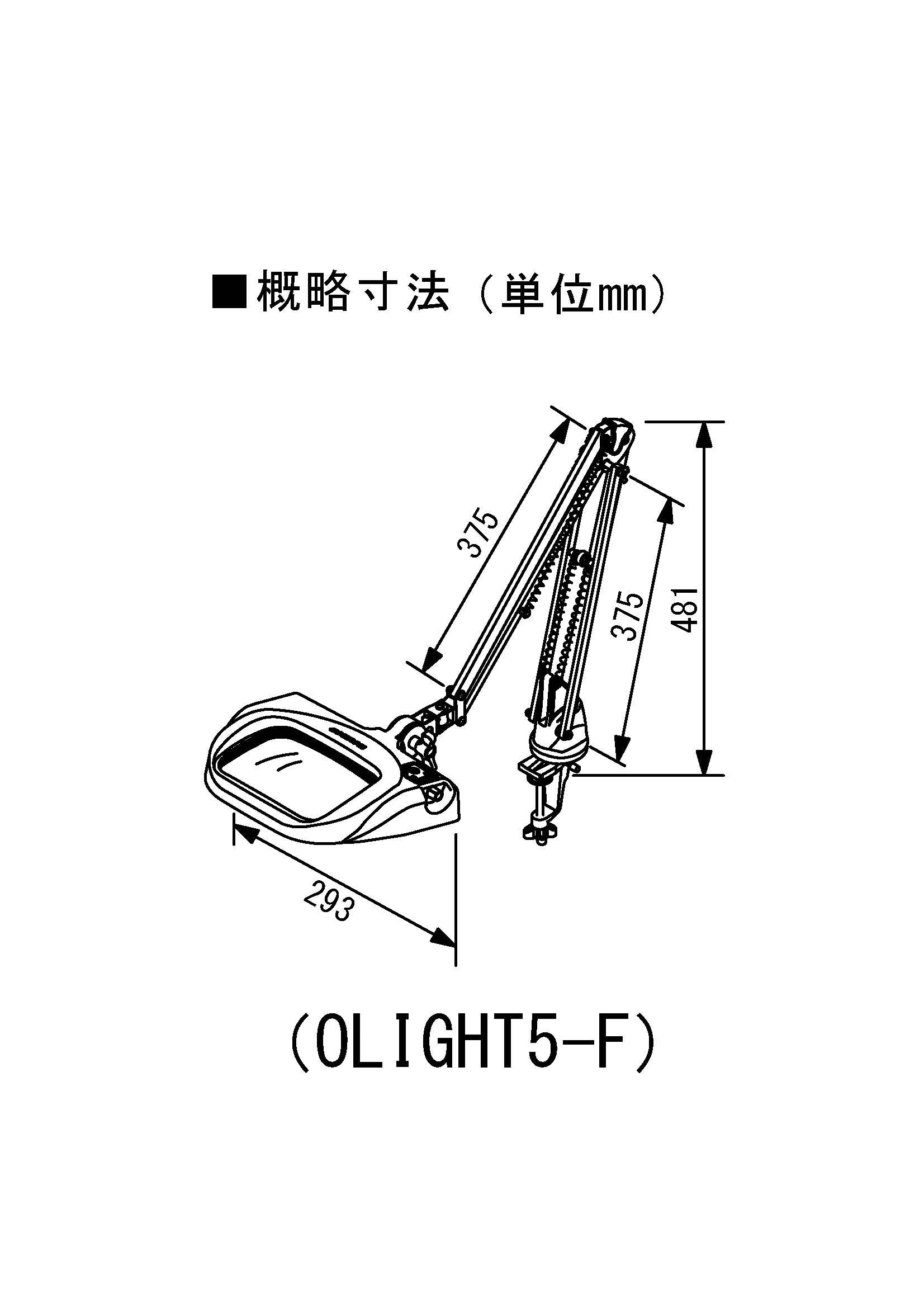

Overall height (mm) 481
Arm length (mm) 770
Clampable width (mm) 15-60
  • 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
  • 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
  • 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
