led lighting magnifier

OLIGHT5-B

OLIGHT5-B

Regular price $650.00
Regular price Sale price $650.00
Sale Sold out
Tax included. Shipping calculated at checkout.
magnification

In stock

■Product features

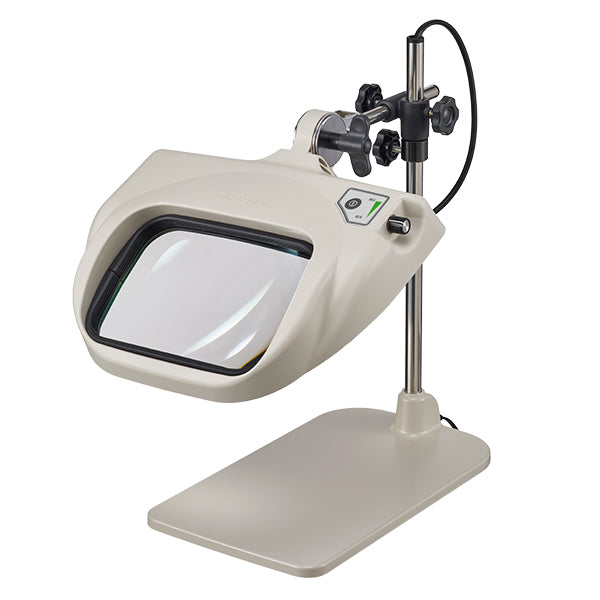

・OLIGHT5-B is the most standard-shaped lighting magnifier that is placed on a workbench, etc.
- The conventional square lens has been made larger and the lens area has been expanded by approximately 150%.
- The light intensity adjustment range has been significantly expanded from the conventional 100% to 50% to 100% to 10%.
- AR coating* has been standardized to reduce eye fatigue even when used for long periods of time.
- The square lens eliminates the distortion around the lens periphery that occurs with round lenses, making it suitable for long hours of work.
・The ON/OFF switch is placed on the head to improve operability.
- The newly designed table stand takes workability into consideration, providing a wide working space and does not interfere with your work.
・An AC adapter is used as the power source.
■Product name
LED illuminated magnifier
■Model name
OLIGHT-B (table stand type)
■Product specifications

lens
Magnification lineup 2XAR,4XAR

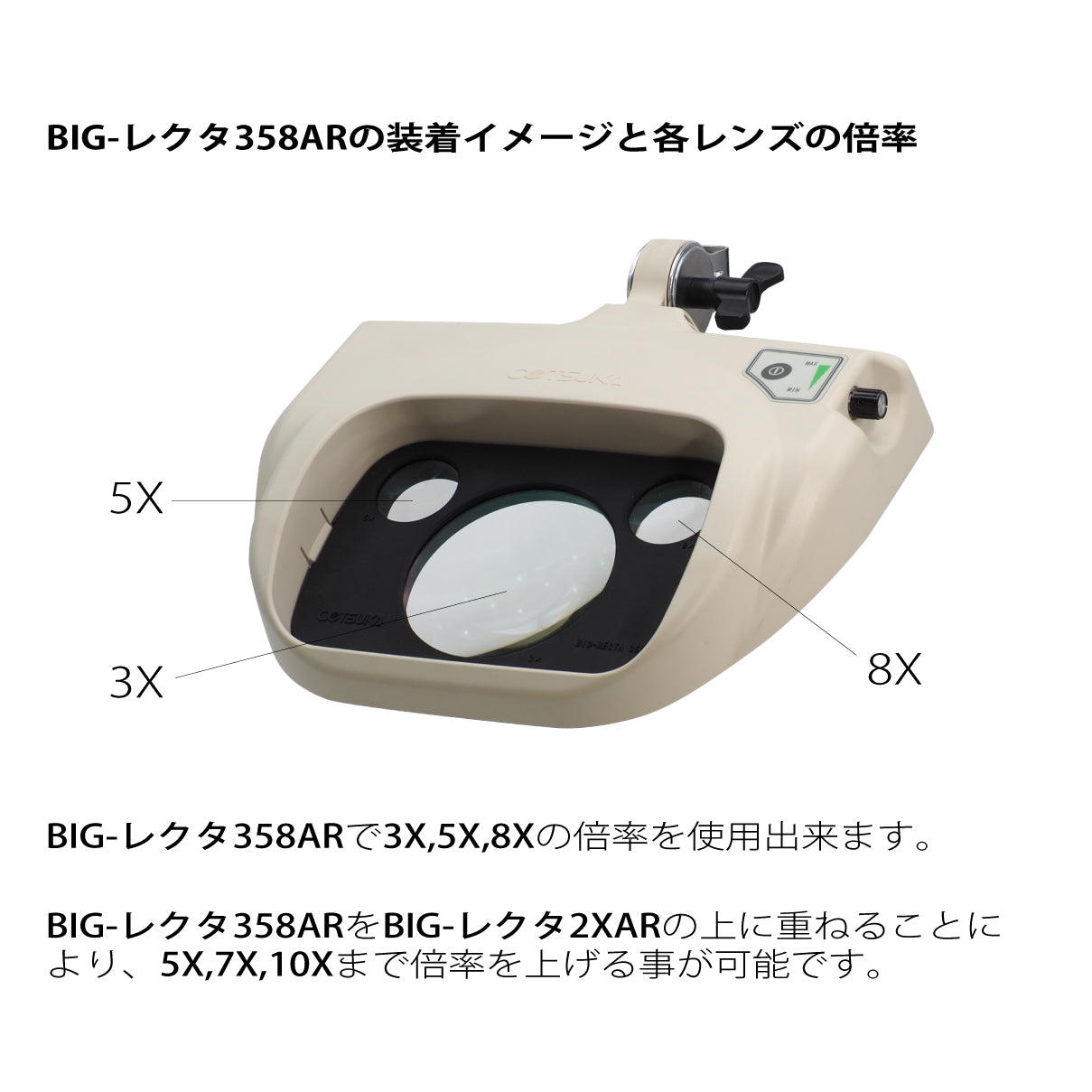

Lens method BIG-Rector Interchangeable Lens System
Effective lens dimension (mm) 180×120
Lens material optical glass
Working distance (mm) 2x: 160, 4x: 100
AR (anti-reflection) coated lens lineup standard equipment
lighting
light source white led light panel
input voltage 100V~240V・50/60Hz・A plug
power consumption 9W
Dimming function 100%~10%
Main body
Weight (Kg) 2.2 (excluding lens weight)

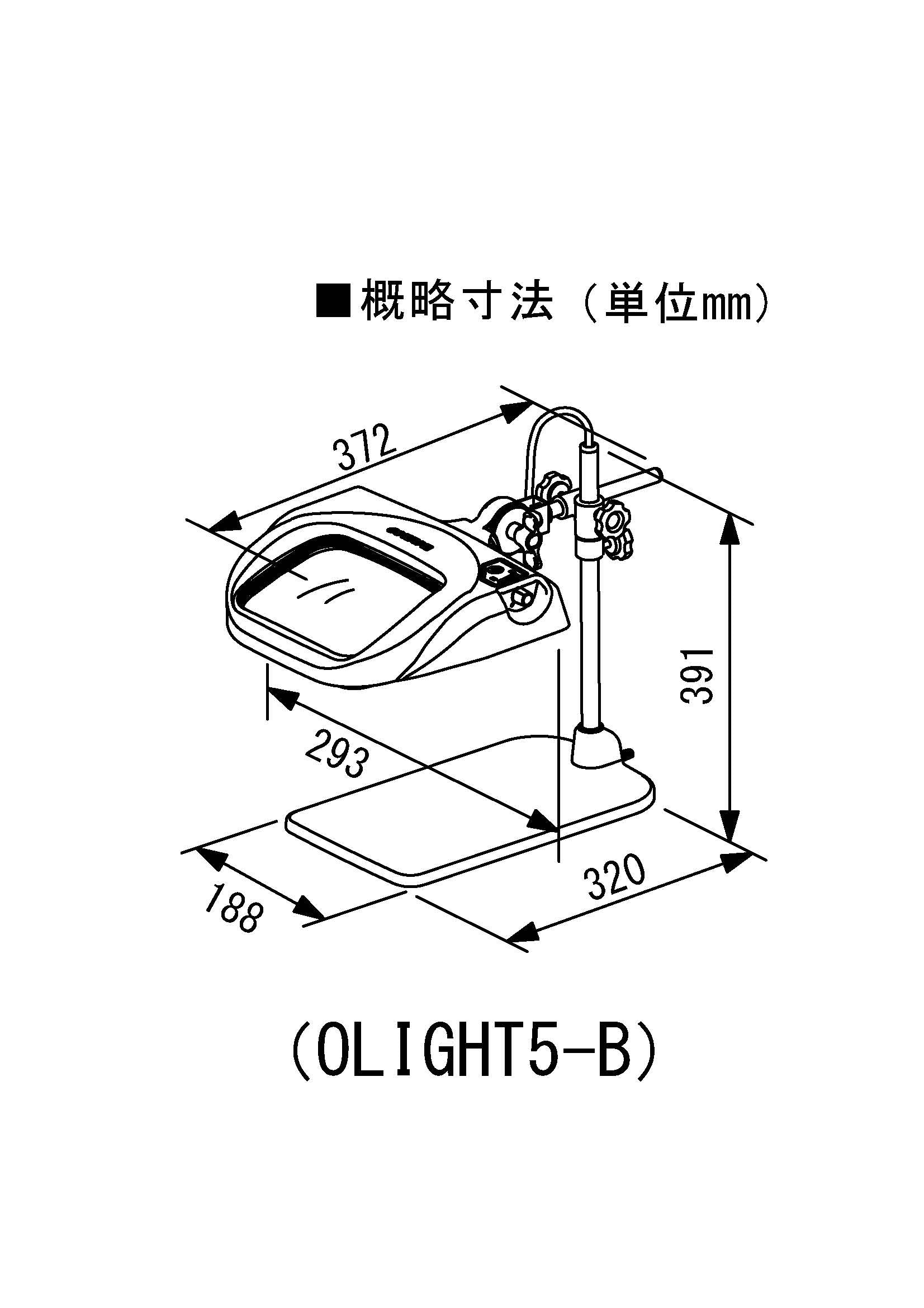

Overall height (mm) 391
Post/horizontal bar (diameter/mm) Φ16/Φ13
Table dimensions (mm) 320×188
  • 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
  • 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
  • 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
