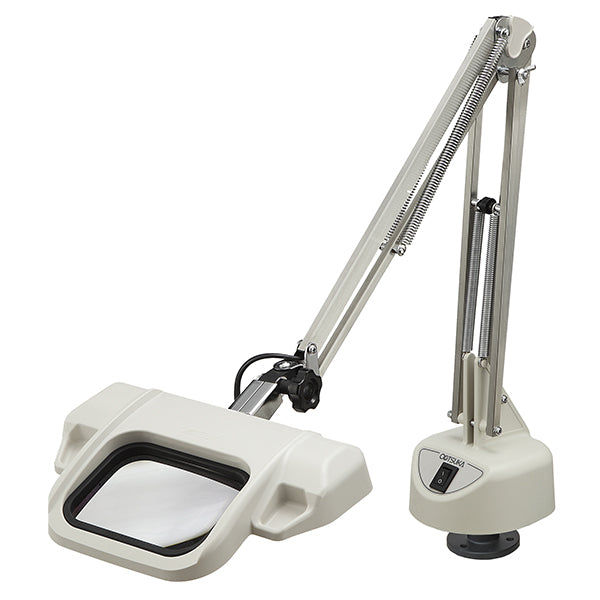

fluorescent lighting magnifier

OLIGHT3-FD

OLIGHT3-FD

Regular price $471.00
Regular price Sale price $471.00
Sale Sold out
Tax included. Shipping calculated at checkout.
magnification

In stock

■Product features
- A compact fluorescent tube is used as the light source, making it possible to ensure sufficient illuminance despite its small size.The lighting system uses an inverter circuit board to suppress the "flickering" characteristic of fluorescent tubes.
・The square lens has distortions cut out on the outer periphery and can be used for long hours of work.By using the optional "AR coat" lens with an anti-reflection coating on the lens, the lens can be used for long periods of time. It suppresses reflection and increases the amount of light transmitted, reducing the burden and fatigue during work.
In addition, the FD type is an arm-type lighting magnifying mirror equipped with a flange base that can be fixed to a table etc. with screws, so it is not possible to fix the product with a clamp (such as when there is a wall etc. behind it). suitable for the environment.
■Product name
fluorescent tube lighting magnifier
■Model name
OLIGHT3-FD type (fixed desk holder, free arm type)
■Product specifications

lens
magnification 2x, 3.5x
Lens dimensions (mm) 144×108
Effective lens dimension (mm) 139×103
Lens material optical glass
Working distance (mm) 2x/160 3.5x/120
Lens weight (g) 2x/560 3.5x/730
Lens method Interchangeable lens “Recta System” lens system
AR (anti-reflection) coat lineup Yes/2x, 3.5x
lighting
light source 27-inch compact fluorescent tube (FPL27)
input voltage 100V・50/60Hz・A plug
power consumption 24W
Dimming function none

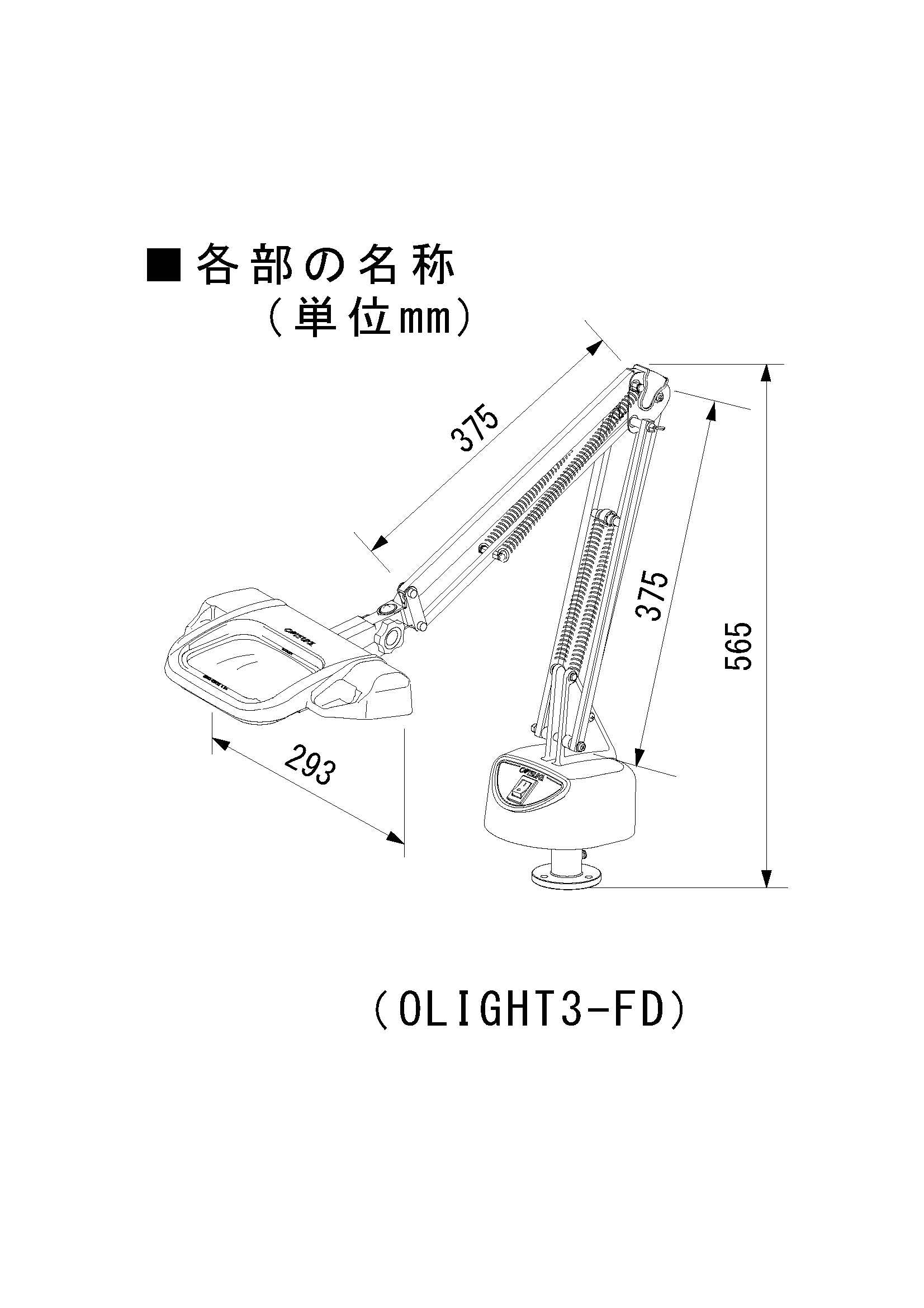

Main body
Product weight (Kg) OLIGHT3-FD 2x approx. 3.2 / OLIGHT3-FD 3.5x approx. 3.3
Arm length (mm) Approximately 1,000 (distance from clamp part to lens)
Head dimensions (mm) 293×205
Clampable width (mm) 15-60
Operating temperature limit 5℃~40℃
Dustproof/waterproof protection grade IP20 (for indoor use only)
  • 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
  • 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
