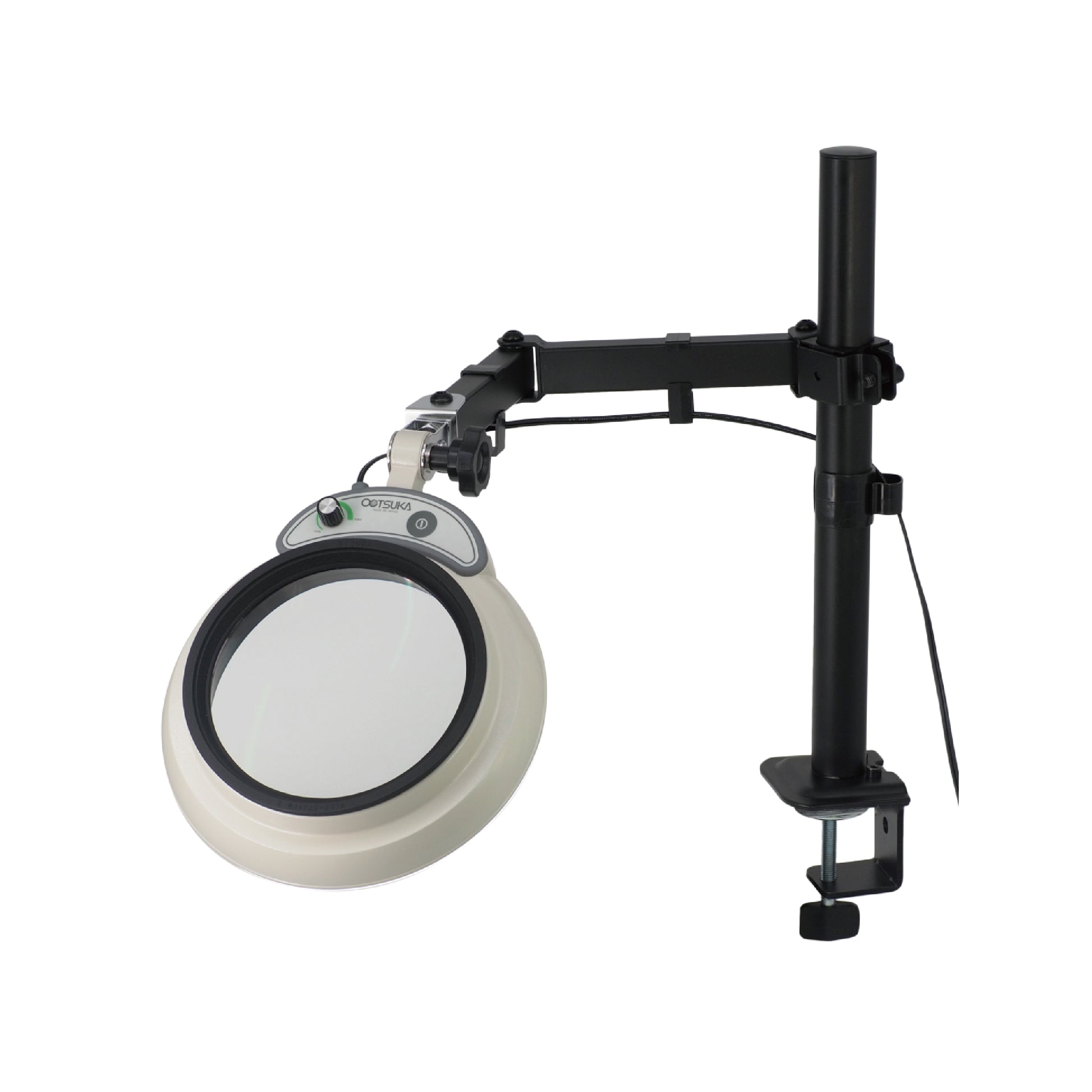

MGL-SA

■Product features
・The MAGNALIGHT series is a successor to the "LSK Wide" series, which was discontinued after being well-received, but it has also succeeded in reducing prices by sharing the newly designed lighting head and parts.
・The "Magna Wide Lens System" combines a large diameter lens of Φ150mm and a clear AR (anti-reflection) coating to meet the expectations of users.

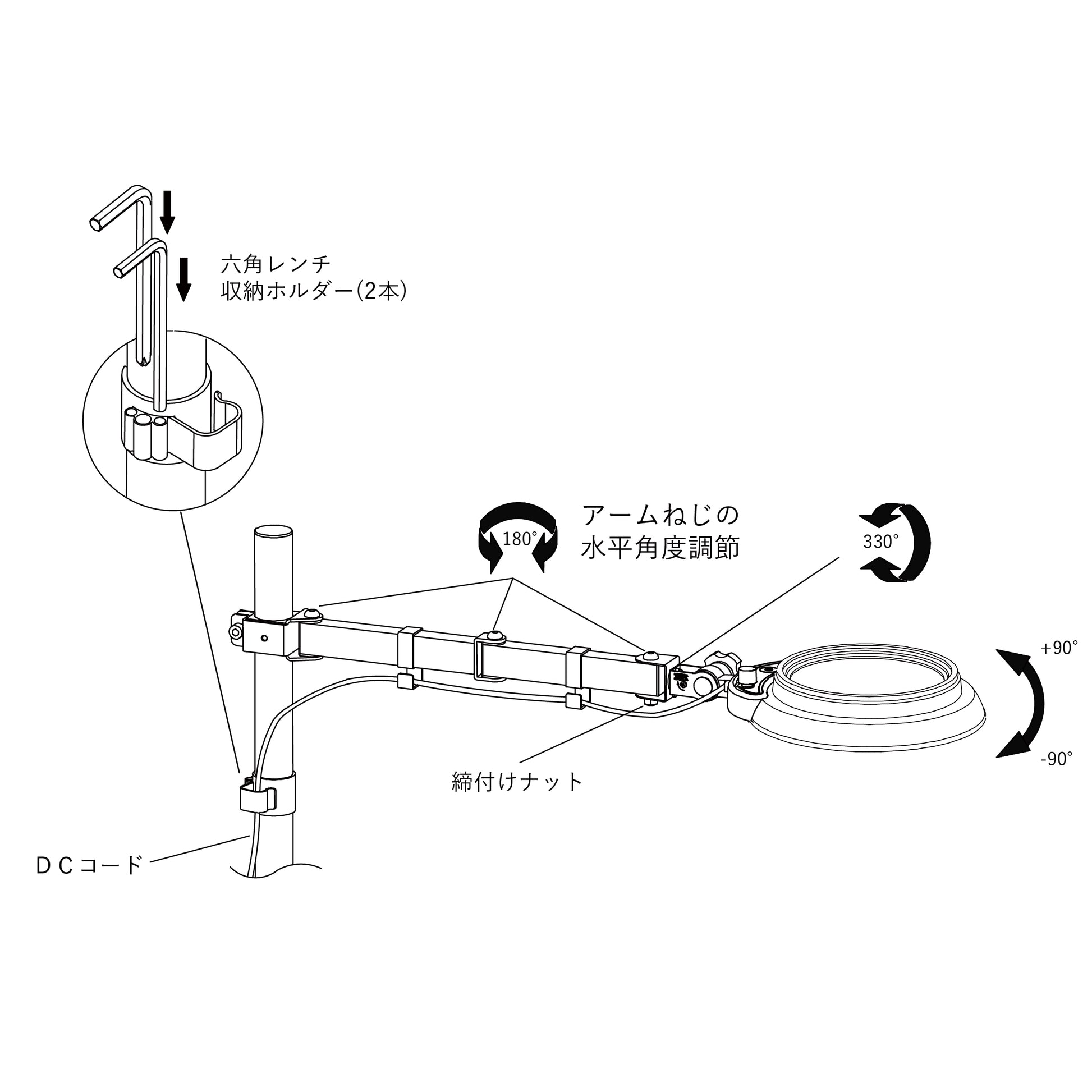

・The ST type is a product that is used by securing it to a desk with a clamp.
■Product name
led lighting magnifier
■Model name
MGL-ST (long bar type)
■Product specifications

lens

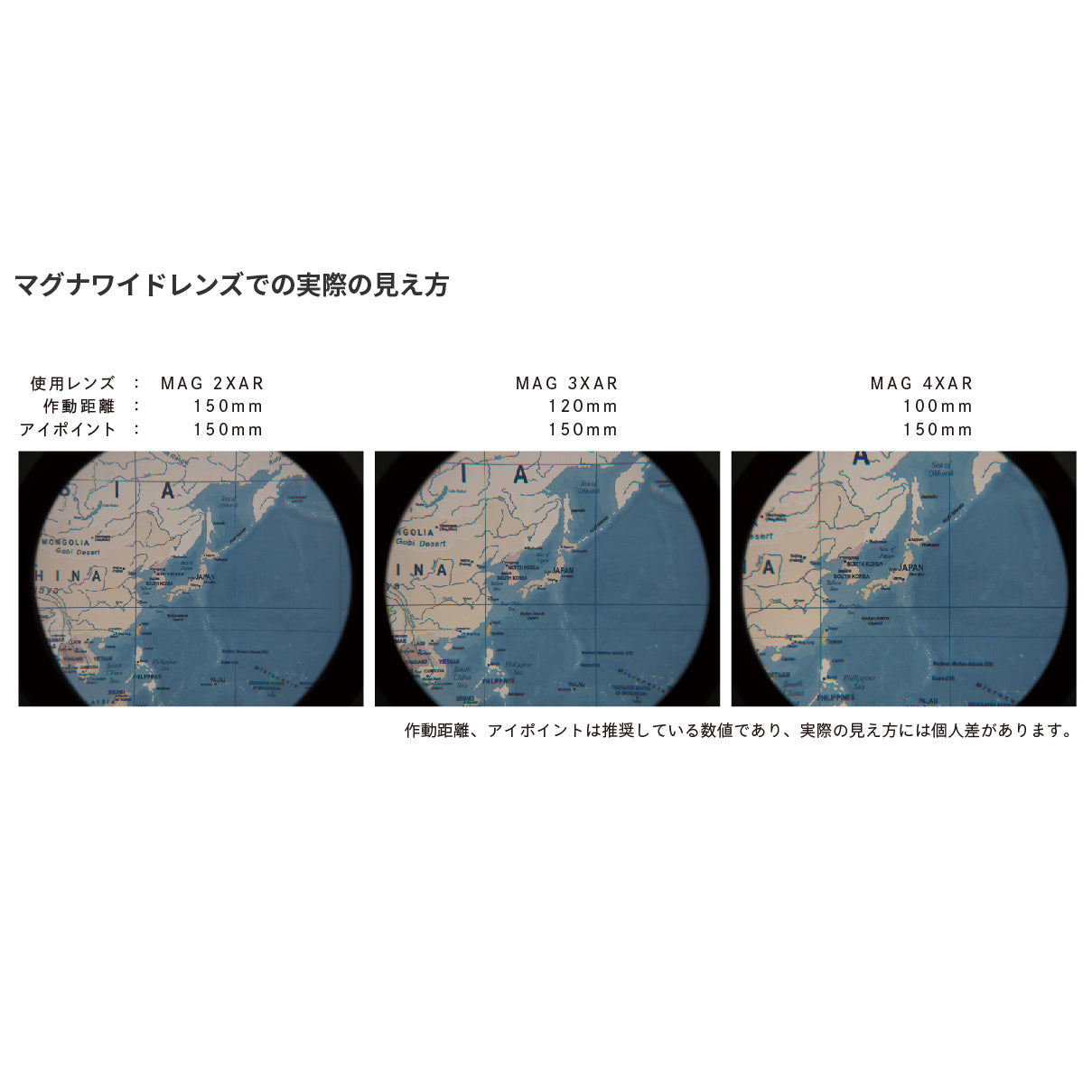

Magnification lineup	2XAR, 3XAR, 4XAR
Lens method	magna wide lens system
lighting
light source	Ultra-high color rendering LED (Ra≧95) + with diffusion protection cover
input voltage	100-240V・50/60Hz・A plug *By changing the cord with AC plug, it can be used up to 125-240V. Please contact your retailer for details.
power consumption	14W
Dimming function	Yes (100% to 10%)

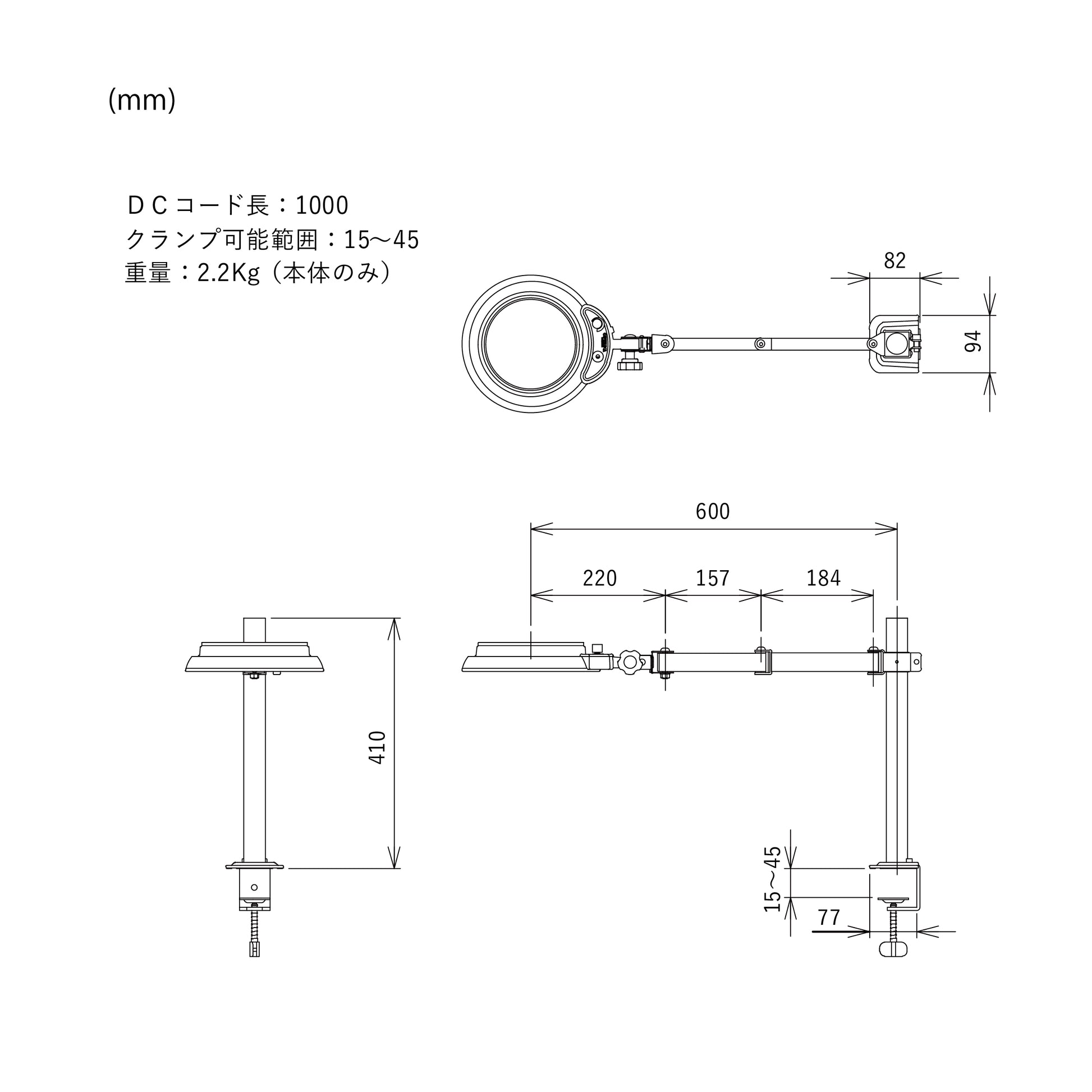

Main body
Weight (Kg)	1.4 (without lens/body weight)
Overall height (mm)	345
Head dimensions (mm)	Φ226
Post/horizontal bar (diameter/mm)	Φ16/Φ13
AC adapter dimensions (mm)	87×45×34H (excluding wires)
Operating temperature limit	5℃～35℃
Dustproof/waterproof protection grade	IP20 (for indoor use only)
