led lighting magnifier
MGL-FD
MGL-FD
In stock
Couldn't load pickup availability
■Product features
・The MAGNALIGHT series is a successor to the "LSK Wide" series, which was discontinued after being well-received, but it has also succeeded in reducing prices by sharing the newly designed lighting head and parts.
・The "Magna Wide Lens System" combines a large diameter lens of Φ150mm and a clear AR (anti-reflection) coating to meet the expectations of users.
・This is a free arm type product that can be fixed to a desk.
-The FD type is an arm-type lighting magnifier equipped with a flange base that can be screwed onto a workbench, etc.
- Suitable for installation in locations where it is not possible to secure the product with clamps (such as where there is a wall behind it).
■Product name

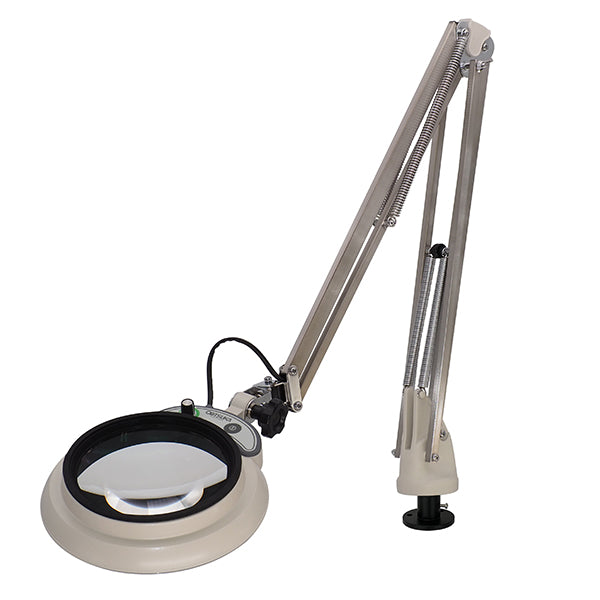

led lighting magnifier
■Model name
MGL-FD (Desk holder fixed free arm type)

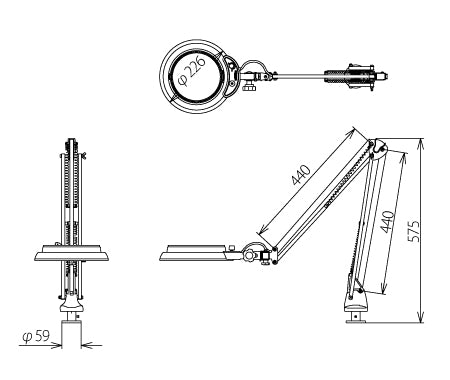

■Product specifications
| lens | |
|---|---|

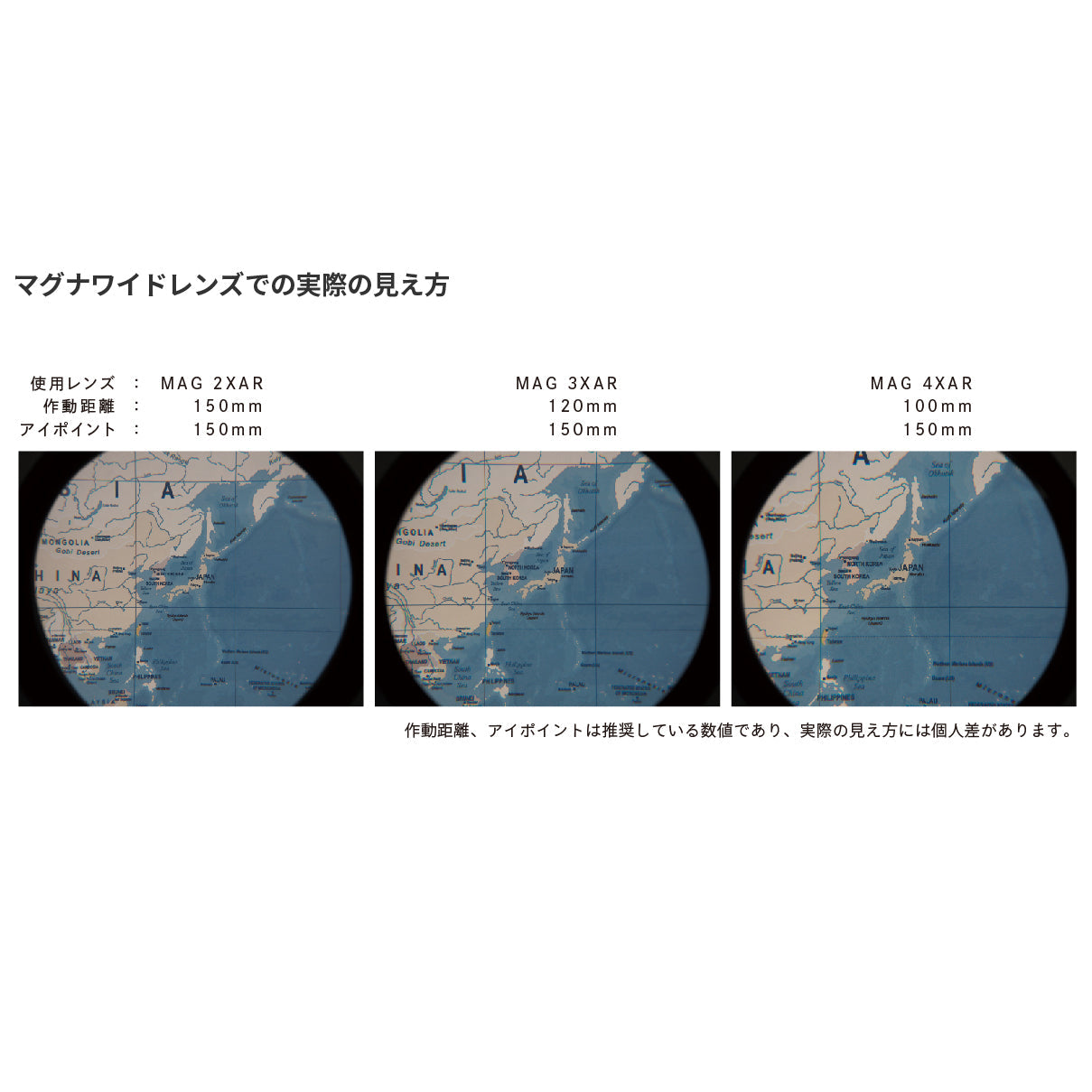

| Magnification lineup | 2XAR, 3XAR, 4XAR |
| Lens method | magna wide lens system |
| lighting | |
| light source | Ultra-high color rendering LED (Ra≧95) + with diffusion protection cover |
| input voltage | 100-240V・50/60Hz・A plug *By changing the cord with AC plug, it can be used up to 125-240V. Please contact your retailer for details. |
| power consumption | 14W |
| Dimming function | Yes (100% to 10%) |
| Main body | |
| Weight (Kg) | 2.2 (without lens/body weight) |
| Overall height (mm) | 1000 |
| Head dimensions (mm) | Φ226 |
| Clampable width (mm) | 10-60 |
| AC adapter dimensions (mm) | 87×45×34H (excluding wires) |
| Operating temperature limit | 5℃～35℃ |
| Dustproof/waterproof protection grade | IP20 (for indoor use only) |
