LUXO
LFM LED G2
LFM LED G2
In stock
Couldn't load pickup availability
■Product features

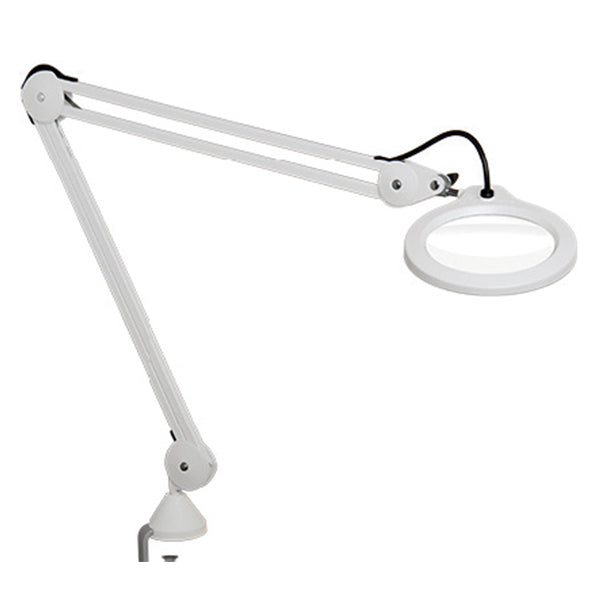

・LUXO LFM LED G2 is a successor model to the LFM LED, which has received high praise from customers. A modern, lightweight illuminated magnifier with metal construction and spring-balanced free arm.

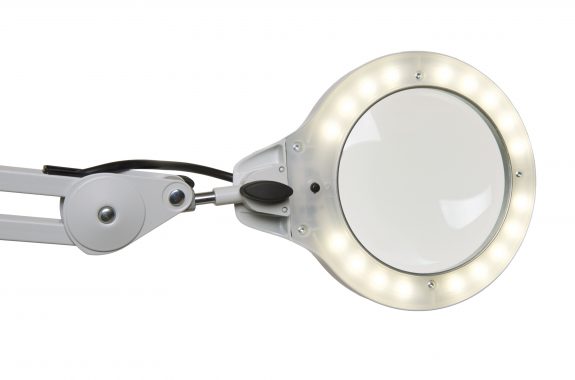

・The lens is placed in the center of a circular illumination ideal for illuminating the object, allowing you to obtain an enlarged image without shadows.
・The LED lighting is equipped with 4,000K white LEDs and is equipped with a step type (100-50-0%) 3-level dimming function.
・The flexibility of the joint that connects the head and arm makes accurate positioning easier.
・The lineup only has 3x magnification of fixed lenses, but by using LUXO-PUL, it is possible to change or add magnification.
■Product name
led lighting magnifier
■Model name
LFM LED G2 (free arm type)
■Product specifications
| lens | |
|---|---|
| magnification | 3 times |
| Lens dimensions (mm) | Φ127 |
| Lens material | optical glass |
| Working distance (mm) | 3x/130 |
| Lens method | Fixed type |
| AR (anti-reflection) coated lens lineup | No settings |
| illumination | |
| light source | white LED |
| color temperature | 4000K |
| input voltage | 100V・50/60Hz・A plug |
| power consumption | 8.5W *actual value |
| Dimming function | Yes/Step type (100-50-0%) |
| ESD compatible | Not compatible |
| product weight | Approximately 2.5Kg |

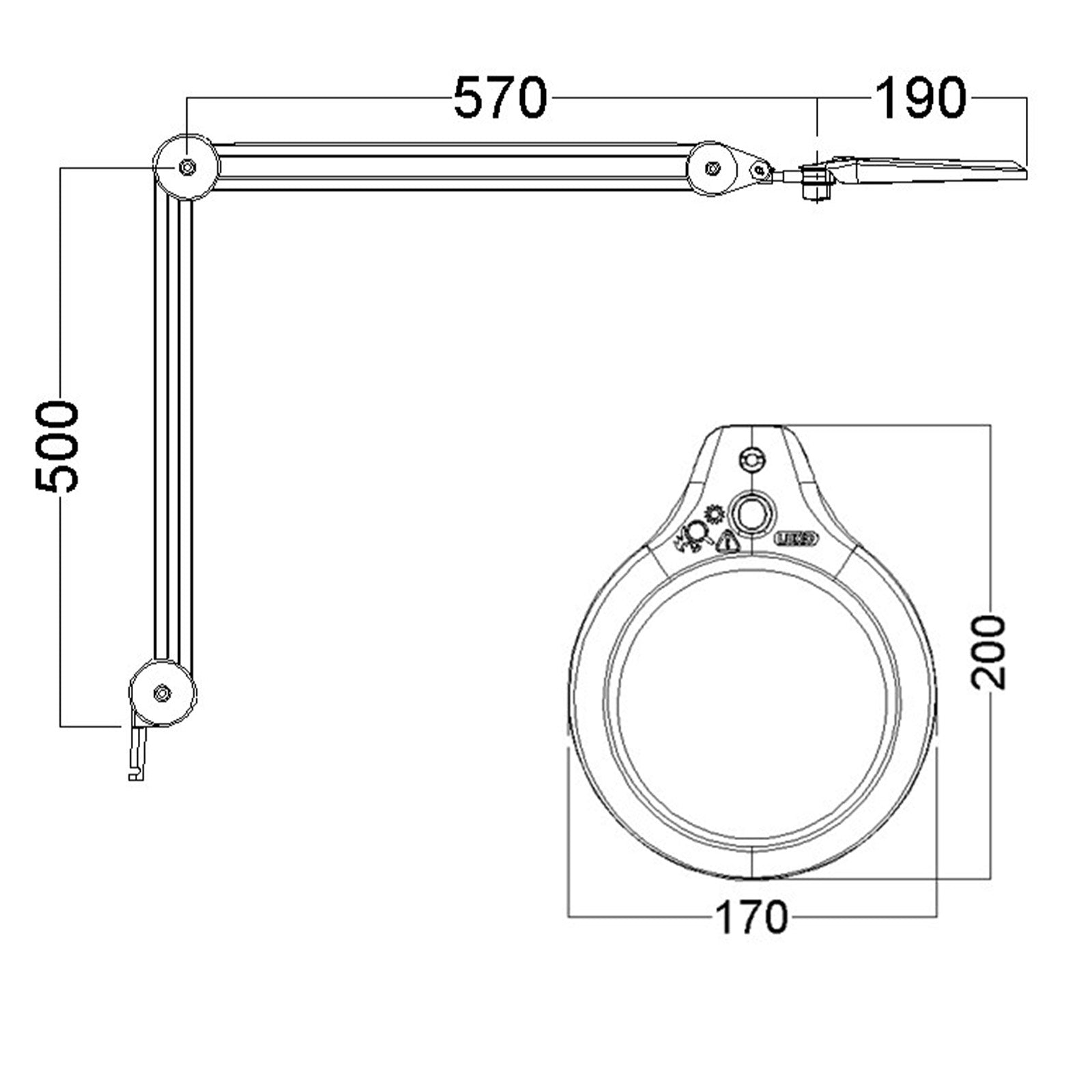

| Arm length (mm) | Approximately 1.050 |
| Head dimensions (mm) | 200×170 |
| Clampable width (mm) | 8～70 |
| Operating temperature limit | 5℃～35℃ |
| Dustproof/waterproof protection grade | IP30 (for indoor use only) |
