LUXO
LFM LED
LFM LED
In stock
Couldn't load pickup availability
This product is an outlet item.
There are defects such as scratches, dents, uneven or peeling paint, scratches on the lens, and slight bubbles on the product itself.
Although it is not a regular product, there is no problem with the original function of the lighting magnifier, and you can use it in the same way as a regular product.
Outlet products have low prices for the reasons mentioned above, so please be aware that some of the products may have defects.
・About returns, exchanges, and warranties
We will only accept returns or exchanges in the case of our company's reasons (damage during transportation, wrong item, etc.).
This is not covered by the manufacturer's warranty.

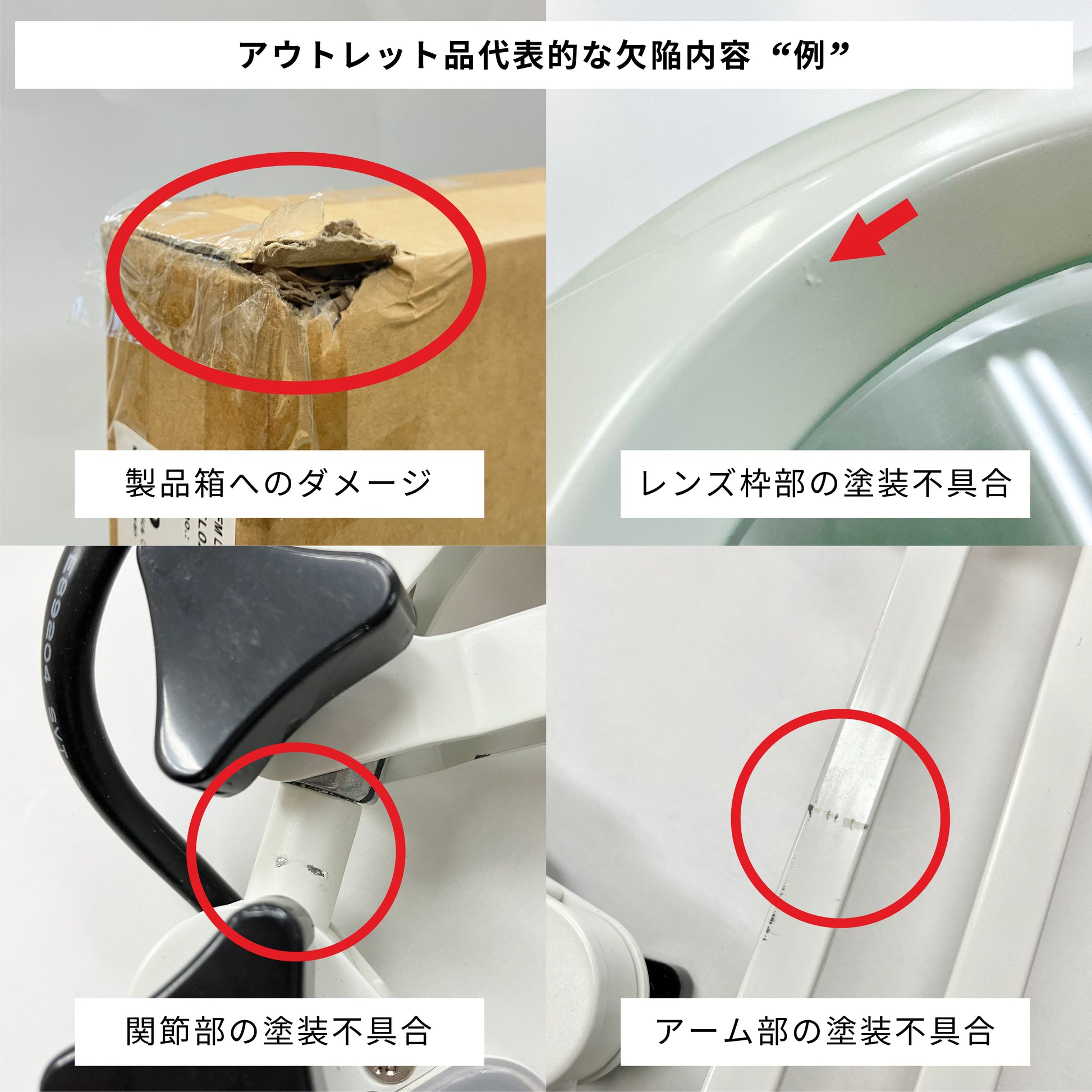

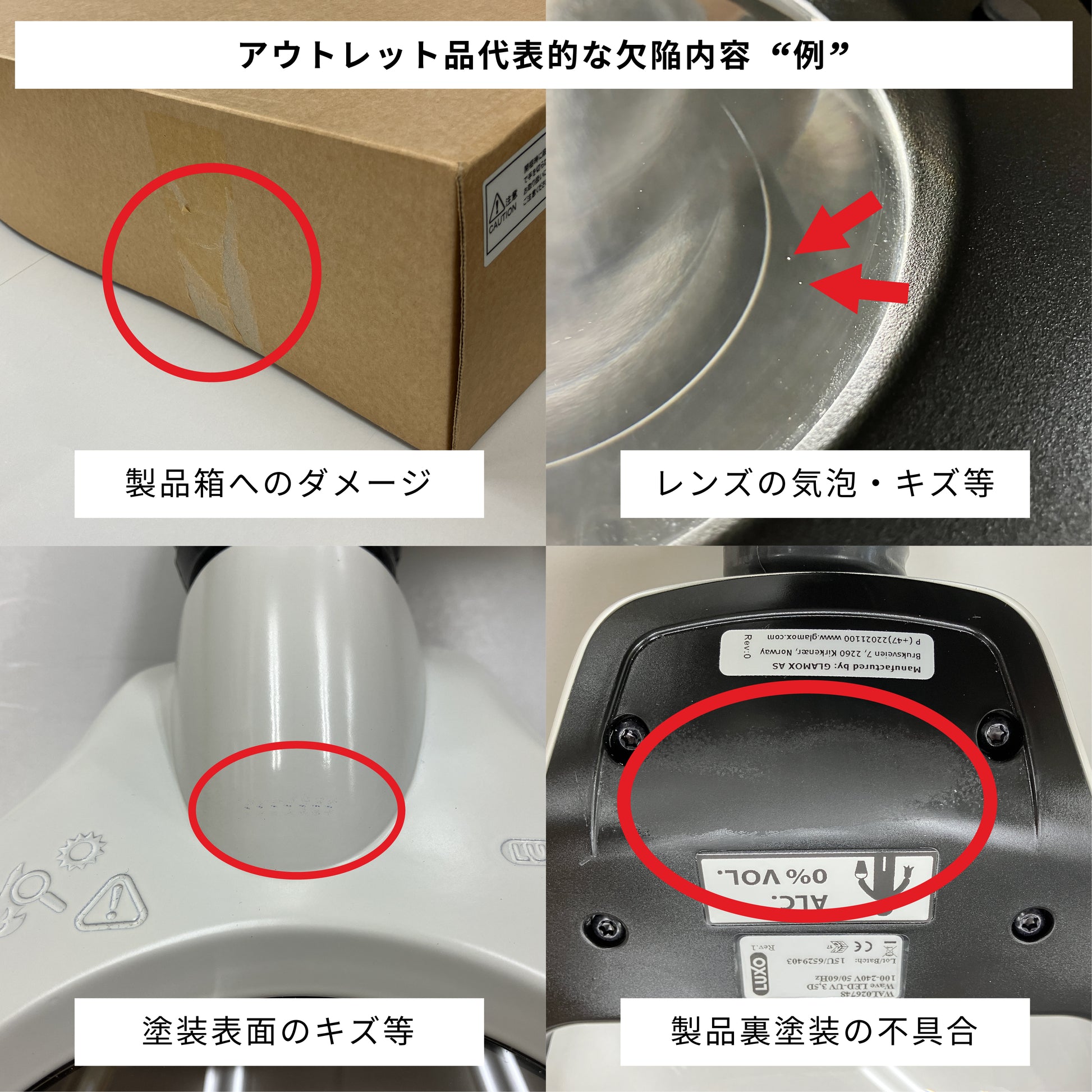

*Please refer to the "examples" of defects in the product images. We do not accept inquiries regarding outlet products.
Please understand this before placing your order.
■Product features

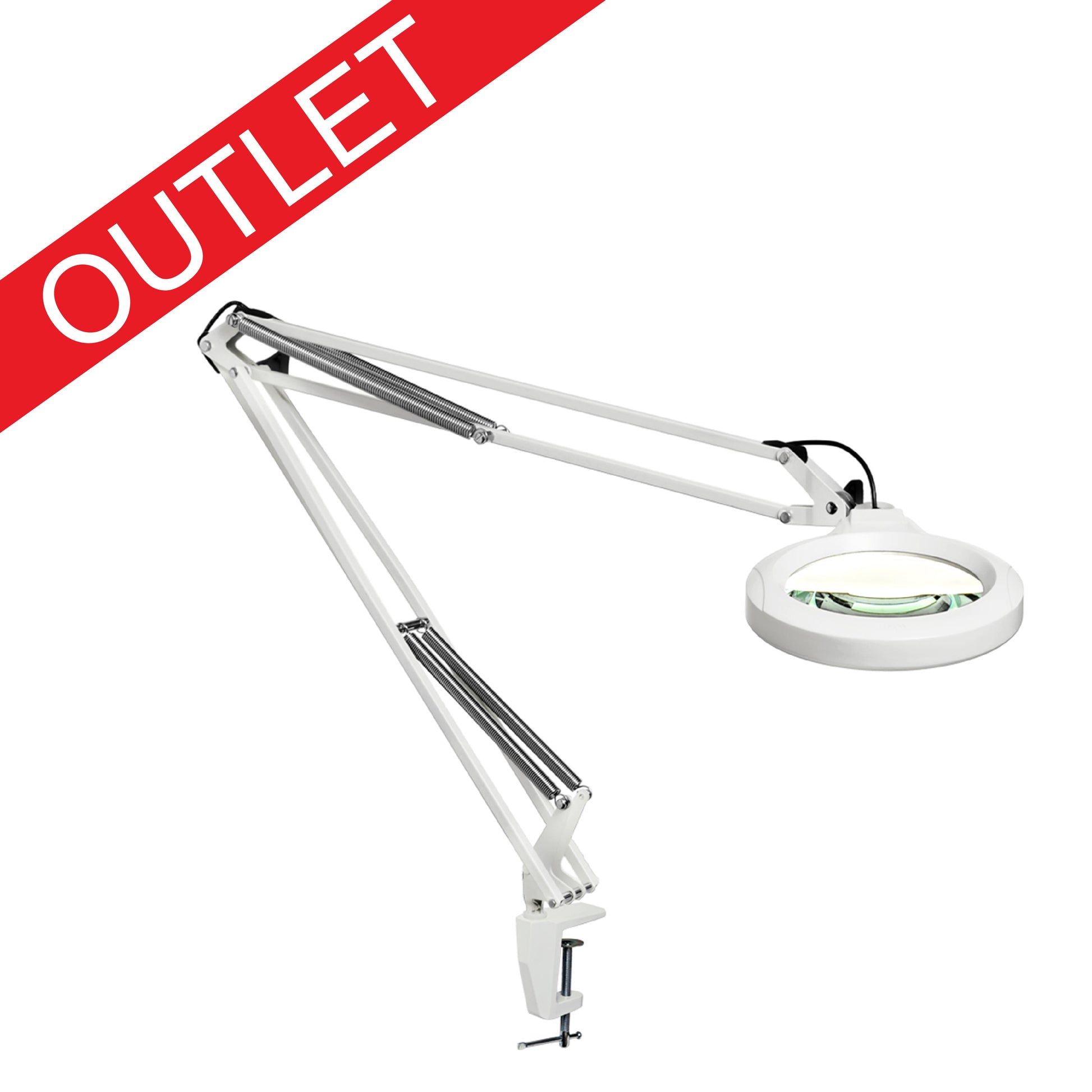

・LUXO LFM LED is LUXO's traditional lightweight magnifier with all-metal construction, LED lighting and a flexible self-balancing arm. The arm provides a long reach and maximum vertical and horizontal movement, and the lens swings left and right, giving you a high degree of freedom in positioning and ensuring you are always in the correct position without wobbling. The joint between the lamp head and arm allows the illumination and lens to rotate vertically, horizontally, and axially relative to the arm, making it easy to accurately position the lamp.
・The lens is placed in the center of a circular illumination ideal for illuminating the object, allowing you to obtain an enlarged image without shadows.
・The LED lighting is equipped with 4,000K white LEDs and is equipped with a step type (100-50-0%) 3-level dimming function.
・The lineup only has 3x magnification of fixed lenses, but by using LUXO-PUL, it is possible to change or add magnification.
■Product name
led lighting magnifier
■Model name
LFM LED (free arm type)
■Product specifications
lens | |
---|---|
magnification | 3 times |
Lens dimensions (mm) | Φ127 |
Lens material | optical glass |
Working distance (mm) | 3x/130 |
Lens method | Fixed type |
AR (anti-reflection) coated lens lineup | No settings |
illumination | |
light source | white LED |
color temperature | 4000K |
input voltage | 100V・50/60Hz・A plug |
power consumption | 9.5W |
Dimming function | Yes/Step type (100-50-0%) |
ESD compatible | Not compatible |
product weight | Approximately 2.5Kg |
Arm length (mm) | Approximately 1000 |
Clampable width (mm) | 8~70 |
Operating temperature limit | 5℃~35℃ |
Dustproof/waterproof protection grade | IP30 (for indoor use only) |
- 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
- 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
- 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
