interchangeable lens system

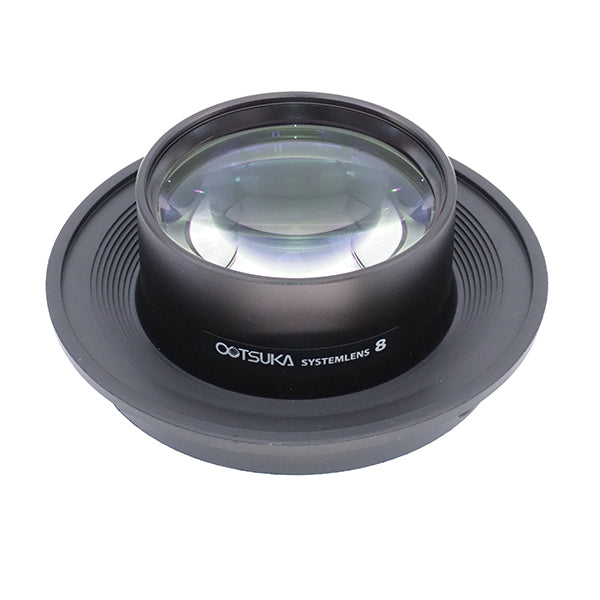

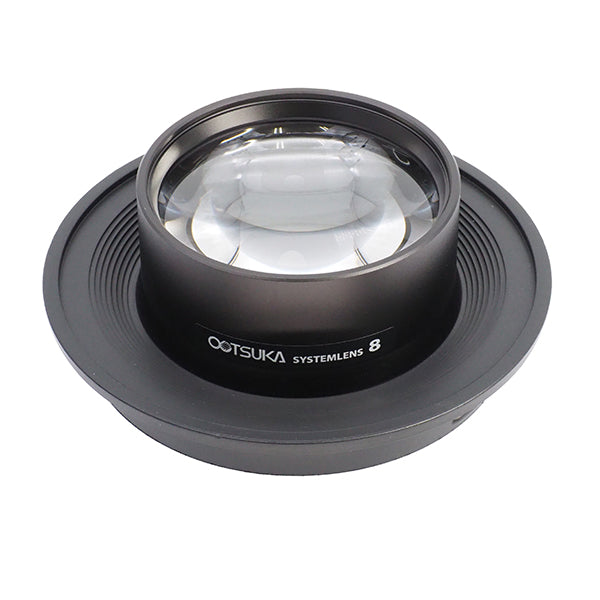

Lens for round series 8X/8XAR
Lens for round series 8X/8XAR
Regular price
¥70,950
Regular price
Sale price
¥70,950
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
■Product features
・The interchangeable lens system has a rubber mounting frame for the lens, making it compatible to use lenses with various magnifications in one product.
・The high magnification lens of the interchangeable lens system is a lens that has both a wider field of view and higher magnification than a microscope.
- Can be used for small quantity inspections as well as sampling inspections.
■Product name
Lens for round series 8x / 8x AR
■Product specifications
| lens | |
|---|---|
| magnification | 8 times |
| Lens dimensions/eyepiece diameter (mm) | Φ90 |
| Eye point/distance between eye and lens (mm) | 105 |
| Working distance/distance between lens and object (mm) | 54 |
| Field of view (mm) | Φ40 |
| Lens method | Round series interchangeable lens system |
| AR (anti-reflection) coated lens lineup | Yes |
| Lens material | optical glass |
| Lens configuration | 4 pieces |
| Weight (g) | 1300 |
| Compatible models | SKKL, ENVL, OOLITE-F series |
