interchangeable lens system
Lens for round series 6X / 6XAR
Lens for round series 6X / 6XAR
Regular price
¥47,300
Regular price
Sale price
¥47,300
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
■Product features
・The interchangeable lens system has a rubber mounting frame for the lens, making it compatible to use lenses with various magnifications in one product.
・The medium magnification range lens of the interchangeable lens system is a product with an excellent balance between wide-field workability and moderate magnification, and can be used in a wide range of fields, from 100% inspection to sampling inspection.
■Product name

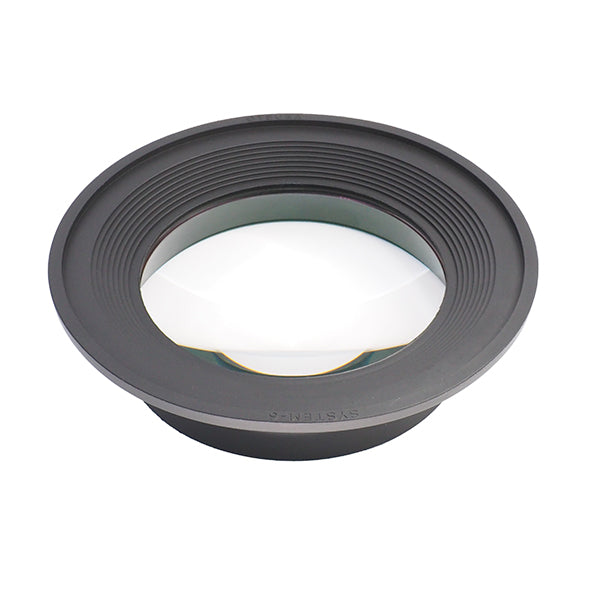

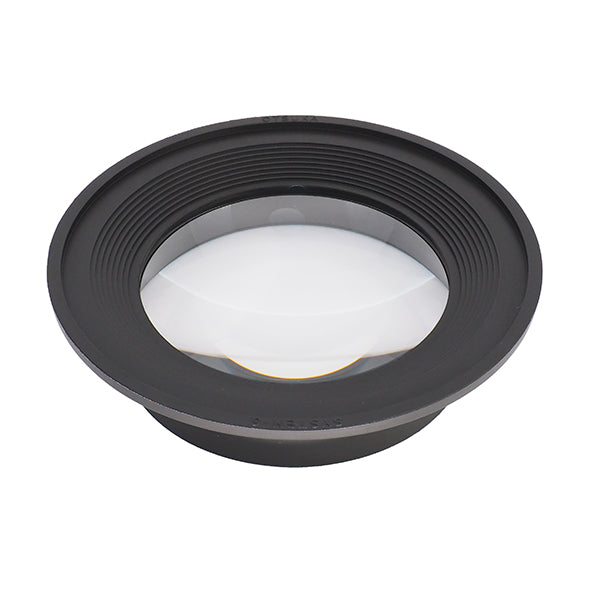

Lens for round series 6x / 6x AR
■Product specifications
| Lens specs | |
|---|---|
| magnification | 6 times |
| Lens dimensions/eyepiece diameter (mm) | Φ105 |
| Eye point/distance between eye and lens (mm) | 100 |
| Working distance/distance between lens and object (mm) | 82 |
| Field of view (mm) | Φ70 |
| Lens method | Round series interchangeable lens system |
| AR (anti-reflection) coated lens settings | Yes |
| Lens material | optical glass |
| Lens configuration | 2 sheets |
| Weight (g) | 570 |
| Compatible models | SKKL, ENVL, OOLITE-F series |
