interchangeable lens system

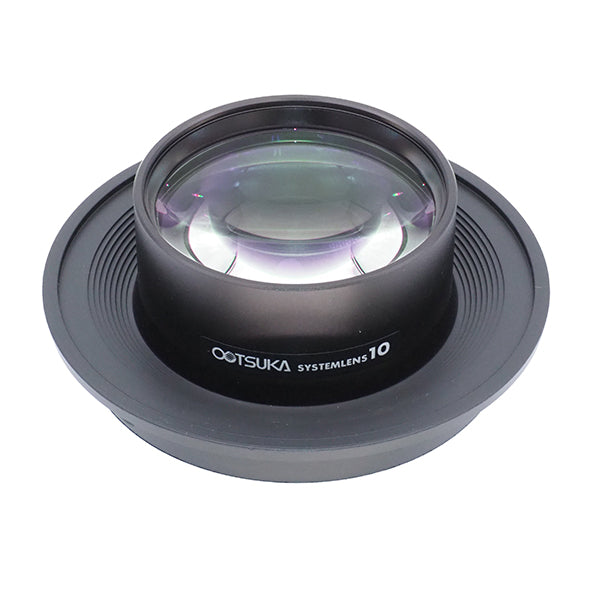

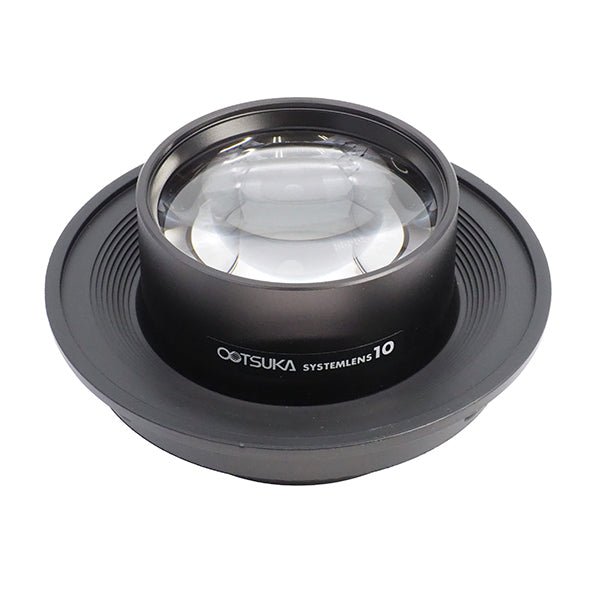

Lens for round series 10X/10XAR
Lens for round series 10X/10XAR
Regular price
¥83,600
Regular price
Sale price
¥83,600
Unit price
/
per
Tax included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
■Product features
・The interchangeable lens system has a rubber mounting frame for the lens, making it compatible to use lenses with various magnifications in one product.
・The high magnification lens of the interchangeable lens system is a lens that has both a wider field of view and higher magnification than a microscope.
- Can be used for small quantity inspections as well as sampling inspections.
■Product name
Lens for round series 10x / 10x AR
■Product specifications
lens | |
---|---|
magnification | 10 times |
Lens dimensions/eyepiece diameter (mm) | Φ90 |
Eye point/distance between eye and lens (mm) | 80 |
Working distance/distance between lens and object (mm) | 43 |
Field of view (mm) | Φ40 |
Lens method | Round series interchangeable lens system |
AR (anti-reflection) coated lens lineup | Yes |
Lens material | optical glass |
Lens configuration | 4 pieces |
Weight (g) | 1350 |
Compatible models | SKKL, ENVL, OOLITE-F series |
- 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
- 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
- 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
