led lighting magnifier

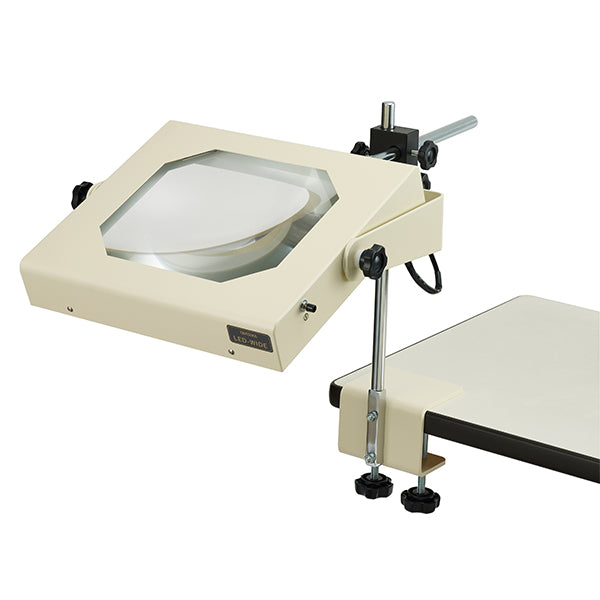

LED WIDE-3
LED WIDE-3
Out of stock
Couldn't load pickup availability
■Product features
・The LED-WIDE-3 type is a product that combines flexibility and ease of use by fixing it to a workbench, etc. using the clamp attached to the column.
-Reduced power consumption by 50% compared to conventional fluorescent lamp types.
・Achieved LED lighting while ensuring the same illumination intensity and diffusion as fluorescent lights.
・The large-diameter rectangular lens eliminates distortion around the lens periphery that occurs with round lenses, making it suitable for long-time work.
・The ON/OFF switch is placed on the head to improve operability.
- The pillars and horizontal bars are arranged in the XY direction, and the long horizontal bars allow for limited use as a free arm.
・An AC adapter is used as the power source.
■Product name
LED illuminated magnifier
■Model name
LED-WIDE-3 type (long bar type)
■Product specifications
| lens | |
|---|---|
| Magnification lineup | 2 times |
| Effective lens dimension (mm) | 200x220mm |
| Lens material | optical glass |
| Working distance (mm) | 160 |
| Lens method | Fixed type |
| AR (anti-reflection) coated lens lineup | none |
| lighting | |
| light source | 2 white LEDs |
| input voltage | 100V・50/60Hz・A plug |
| power consumption | 9W |
| Dimming function | none |
| Main body | |
| Weight (Kg) | 8.9 |

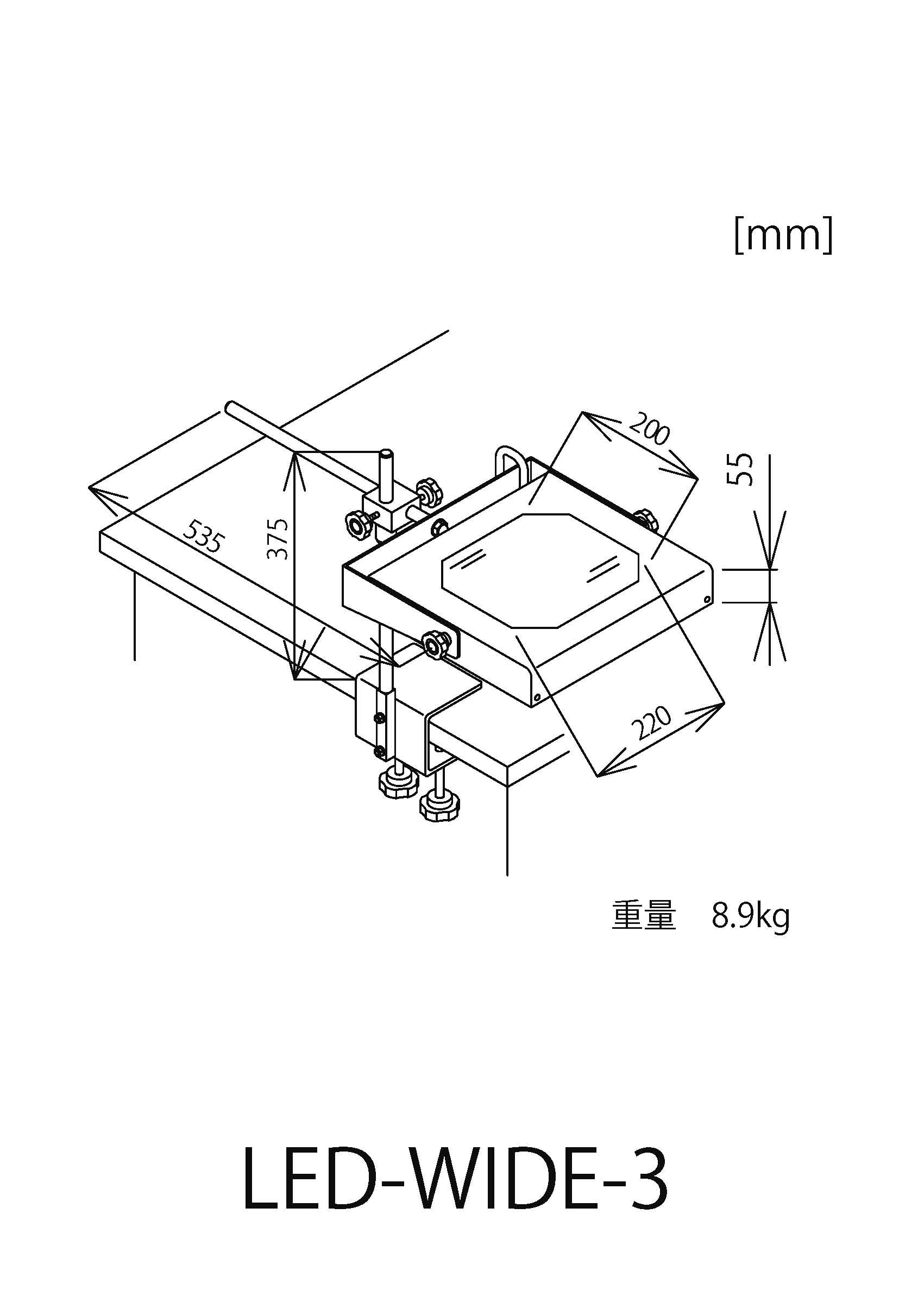

| Overall height (mm) | 375 |
| Head dimensions (mm) | 314x284x55 |
| Post/horizontal bar (mm) | φ16/φ16 |
| Clampable width (mm) | 0~70 |
| AC adapter dimensions (mm) | 64x50x27 |
