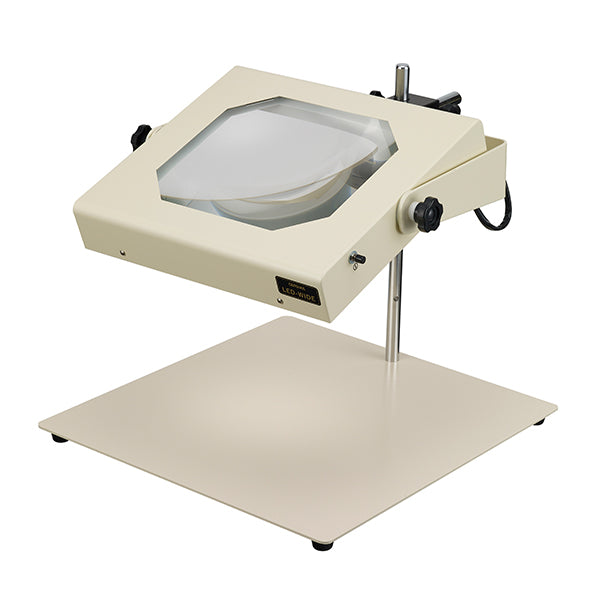

led lighting magnifier
LED-WIDE-2
LED-WIDE-2
Out of stock
Couldn't load pickup availability
■Product features
・The LED-WIDE-2 type is the most standard type illumination magnifier that is placed on a workbench, etc.
-Reduced power consumption by 50% compared to conventional fluorescent lamp types.
・Achieved LED lighting while ensuring the same illumination intensity and diffusion as fluorescent lights.
- The square lens eliminates the distortion around the lens periphery that occurs with round lenses, making it suitable for long hours of work.
・The ON/OFF switch is placed on the head to improve operability.
- The newly designed table stand takes workability into consideration, providing a wide working space and does not interfere with your work.
・An AC adapter is used as the power source.
■Product name
LED illuminated magnifier
■Model name
LED-WIDE-2 (table stand type)
■Product specifications
| lens | |
|---|---|
| Magnification lineup | 2 times |
| Effective lens dimension (mm) | 200x220mm |
| Lens material | optical glass |
| Working distance (mm) | 2x: 160 |
| Lens method | Fixed type |
| AR (anti-reflection) coated lens lineup | none |
| lighting | |
| light source | 2 white LEDs |
| input voltage | 100V・50/60Hz・A plug |
| power consumption | 9W |
| Dimming function | none |
| Main body | |
| Weight (Kg) | 2x: 12.7 |

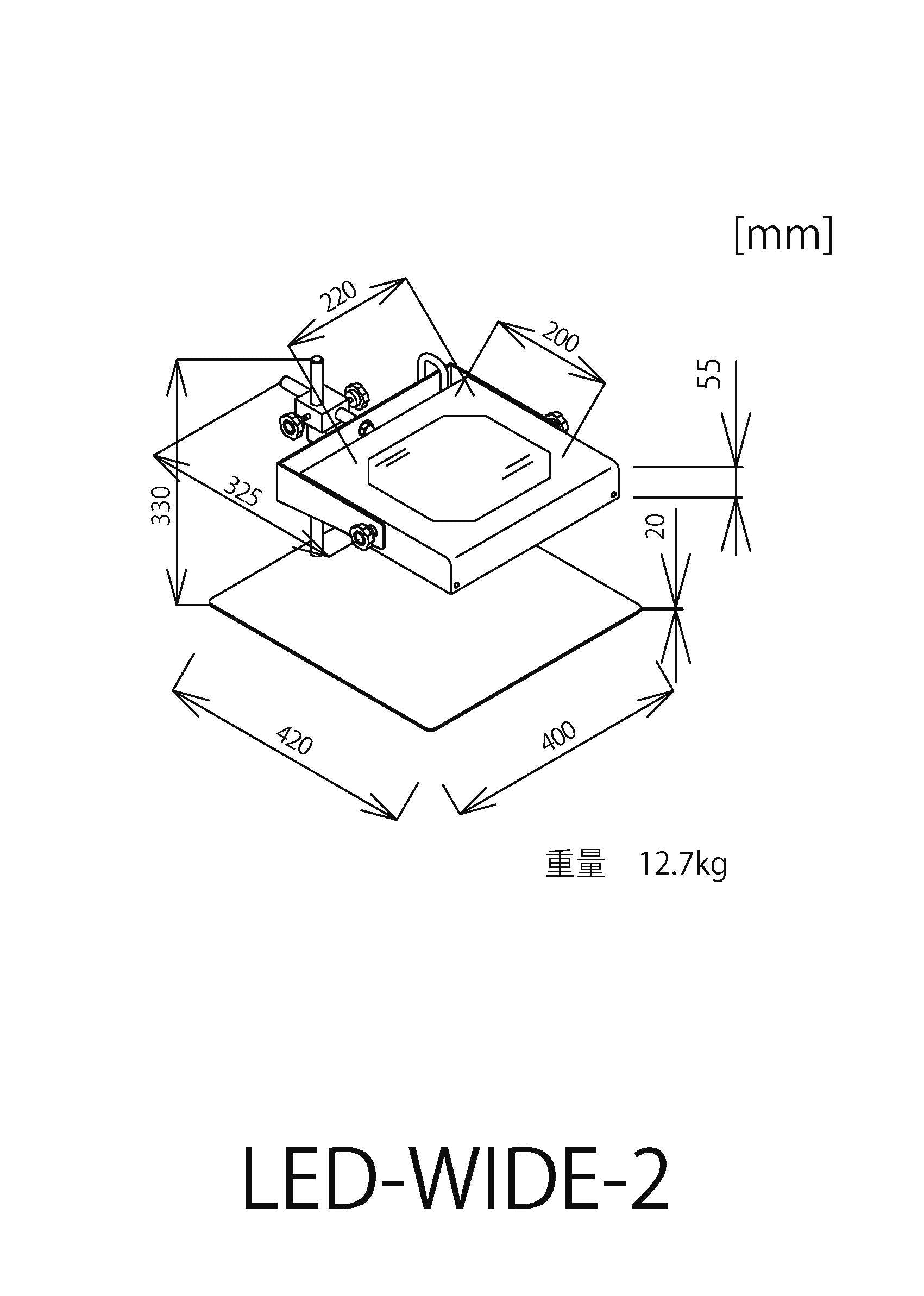

| Overall height (mm) | 330 |
| Head dimensions (mm) | 314x284x55 |
| Post/horizontal bar (diameter/mm) | φ16/φ16 |
| Table dimensions (mm) | 420x400x20 |
| AC adapter dimensions (mm) | 64x50x27 |
