led lighting magnifier



Regular price ¥106,700
Regular price Sale price ¥106,700
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

■Product features
・The LED-OSL-2 type is the most standard type illumination magnifier that is placed on a workbench, etc.
-Reduced power consumption by 50% compared to conventional fluorescent lamp types.
・Achieved LED lighting while ensuring the same illumination intensity and diffusion as fluorescent lights.
- The square lens eliminates the distortion around the lens periphery that occurs with round lenses, making it suitable for long hours of work.
・The ON/OFF switch is placed on the head to improve operability.
- The newly designed table stand takes workability into consideration, providing a wide working space and does not interfere with your work.
・An AC adapter is used as the power source.
・As an option, "OSL-PUL (Power Up Lens)" which amplifies the magnification from 2x to 4x is available. *Only available for products with 2x lens
■Product name

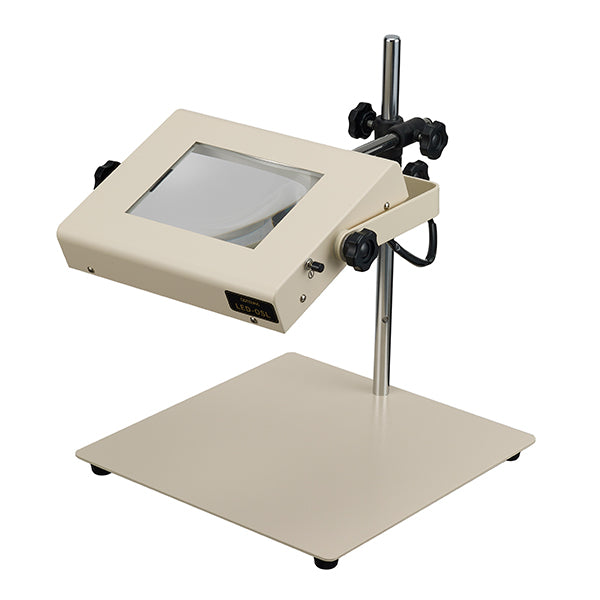

LED illuminated magnifier
■Model name
LED-OSL-2 (table stand type)
■Product specifications

Magnification lineup 2x, 4x
Effective lens dimension (mm) 100×140
Lens material optical glass
Working distance (mm) 2x: 160 / 4x: 110
Lens method Fixed type
AR (anti-reflection) coated lens lineup none
light source 2 white LEDs
input voltage 100V・50/60Hz・A plug
power consumption 9W
Dimming function none

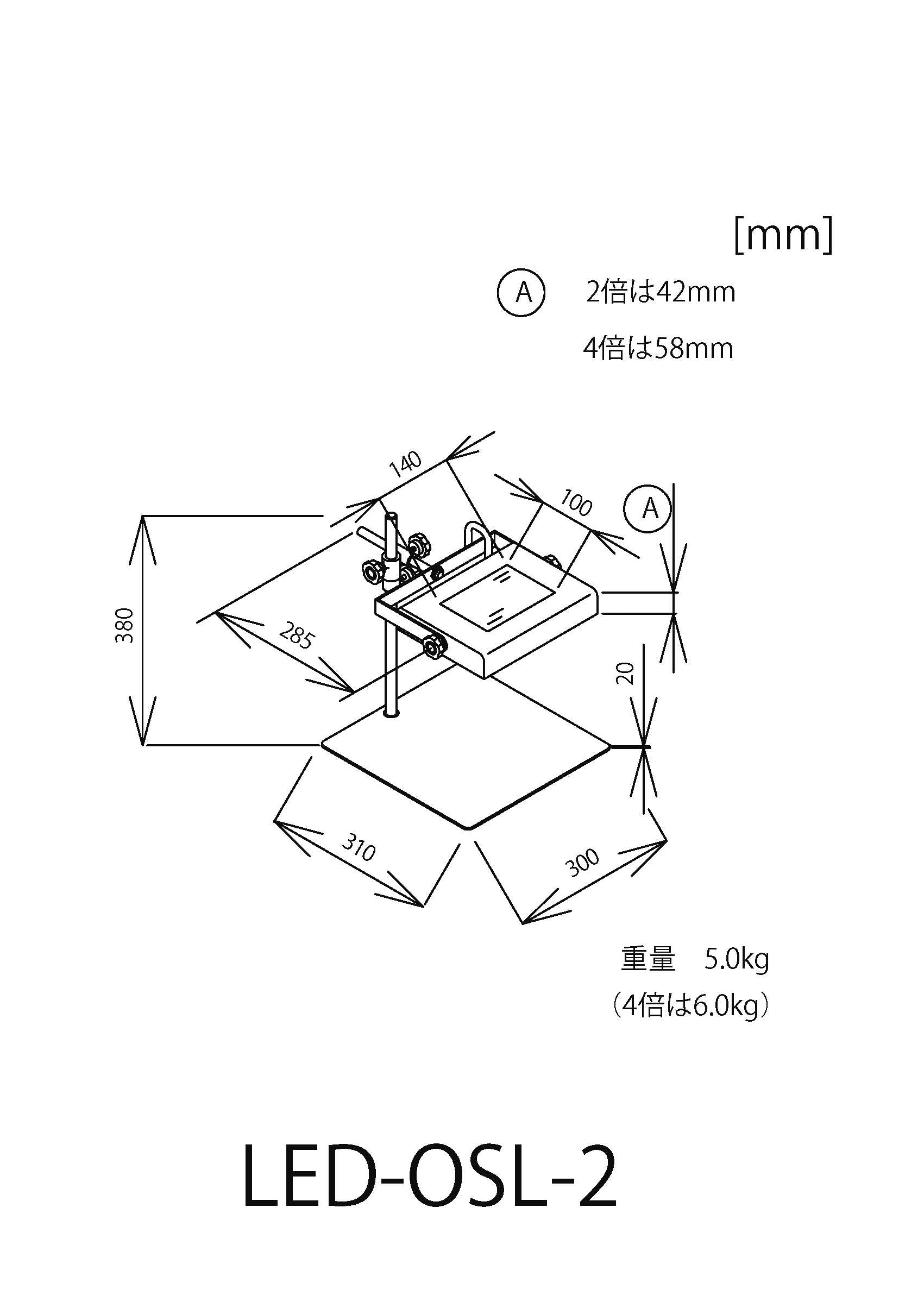

Main body
Weight (Kg) 2x: 5.0 / 4x: 6.0
Overall height (mm) 380
Head dimensions (mm) 180X237
Post/horizontal bar (diameter/mm) Φ16/Φ13
Table dimensions (mm) 310x300x20
AC adapter dimensions (mm) 64x50x27
  • 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
  • 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
  • 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
