LUXO

KFM LED

KFM LED

Regular price ¥69,225
Regular price ¥71,225 Sale price ¥69,225
Sale Sold out
Tax included. Shipping calculated at checkout.
magnification

Out of stock

This product is an outlet item.

There are defects such as scratches, dents, uneven or peeling paint, scratches on the lens, and slight bubbles on the product itself.

Although it is not a regular product, there is no problem with the original function of the lighting magnifier, and you can use it in the same way as a regular product.

Outlet products have low prices for the reasons mentioned above, so please be aware that some of the products may have defects.

・About returns, exchanges, and warranties

We will only accept returns or exchanges in the case of our company's reasons (damage during transportation, wrong item, etc.).

This is not covered by the manufacturer's warranty.

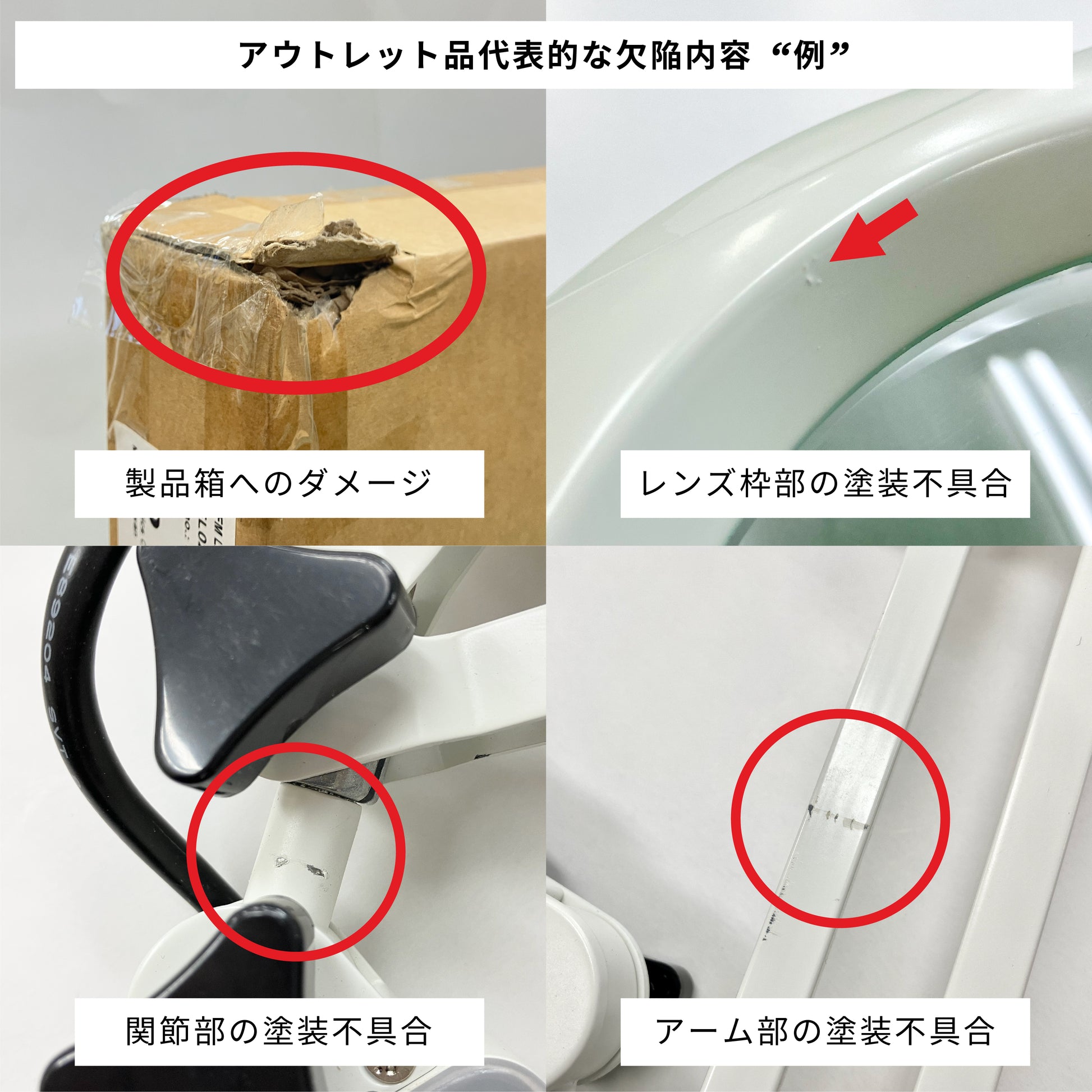

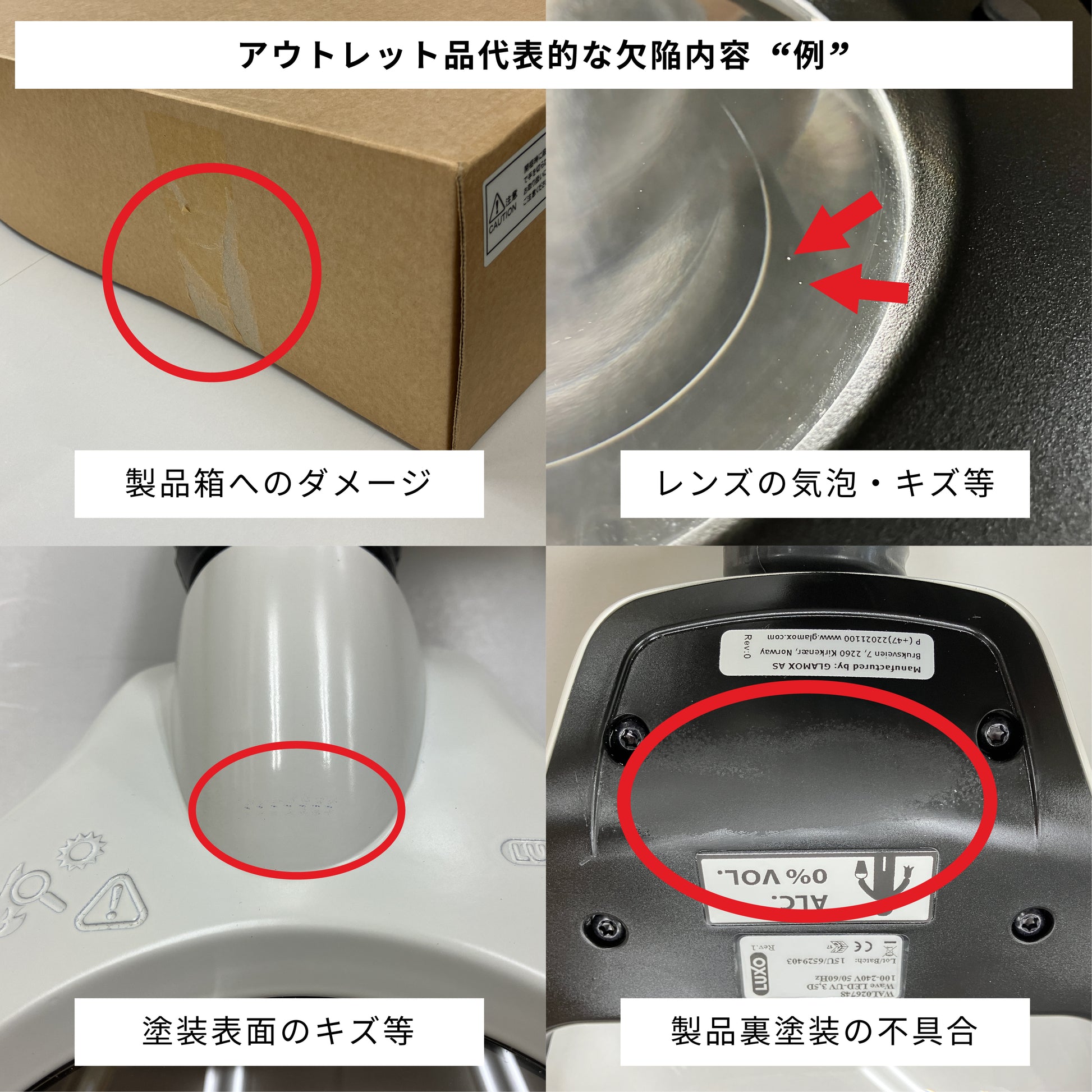

*Please refer to the "examples" of defects in the product images. We do not accept inquiries regarding outlet products.

Please understand this before placing your order.


■Product features

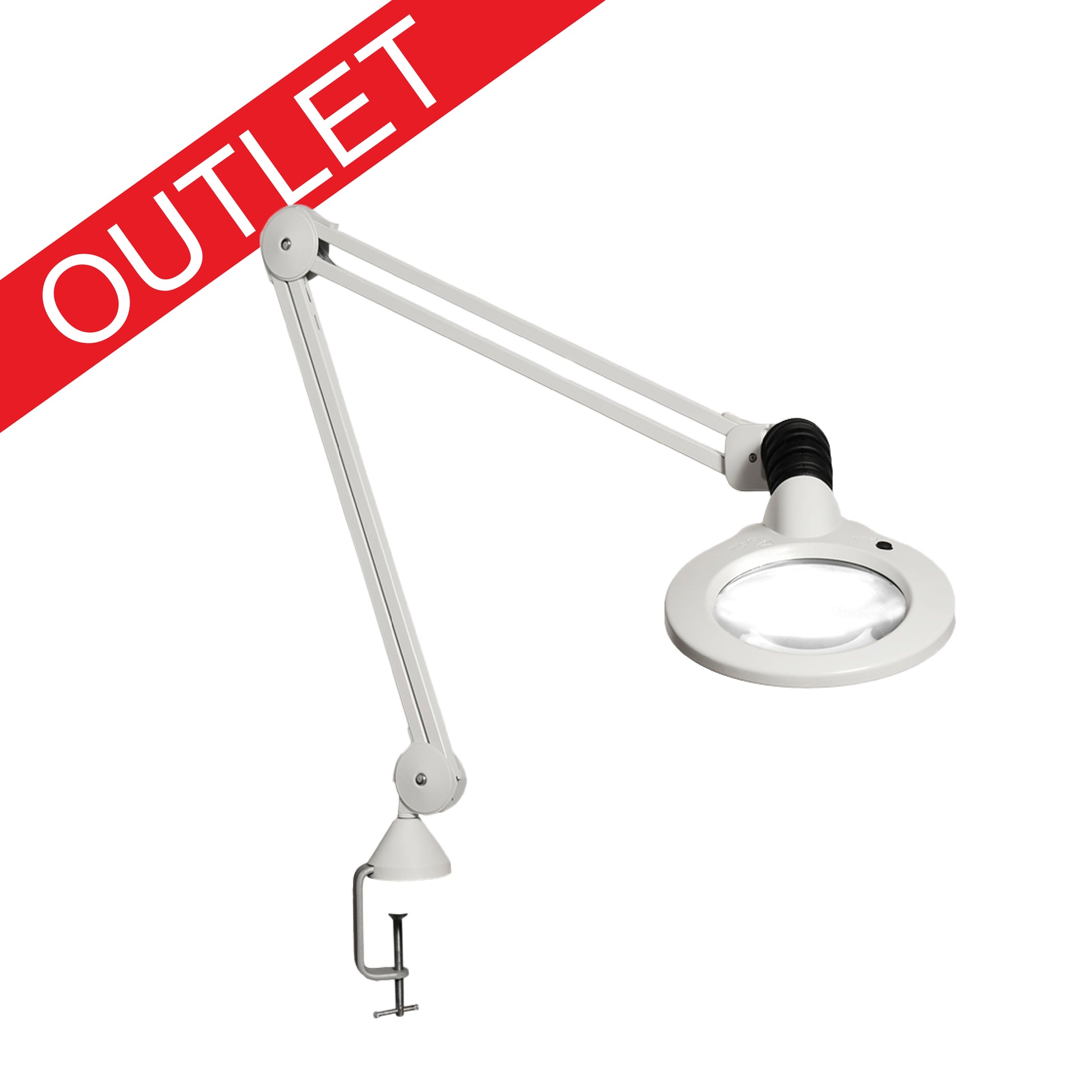

・LUXO KFM LED series is a standard illumination magnifier equipped with a circular optical glass lens and a half-moon LED. With a large diameter Φ127mm lens and stepless light intensity adjustment type LED, it is suitable for all industrial applications and work tools in hospitals, laboratories, cosmetics, etc.
・The long arm provides smooth vertical and horizontal operation, allowing it to always remain in the correct position without wobbling. The joint mechanism in the head allows the lighting and lens to rotate vertically, horizontally, and axially, allowing for a high degree of freedom in product installation.
- Two types of magnification are available: 3x and 5x. The lens is fixed and cannot be replaced, but by using LUXO-PUL, it is possible to add magnification.
■Product name
led lighting magnifier
■Model name
KFM LED (free arm type)
■Product specifications

lens
Magnification lineup 3x, 5x
Lens dimensions (mm) Φ127
Lens material optical glass
Working distance (mm) 3x/130
5x/95
Lens method Fixed type
AR (anti-reflection) coated lens lineup No settings
illumination
light source White LED x 2 sets
color temperature 4000K
input voltage 100V・50/60Hz・A plug
power consumption 11W*Actual measurement value
Dimming function Yes/Steplessly adjustable
ESD compatible Not compatible
product weight KFM LED 3x/approx. 3.0Kg
KFM LED 5x/approx. 3.2Kg
Arm length (mm) Approximately 1.050

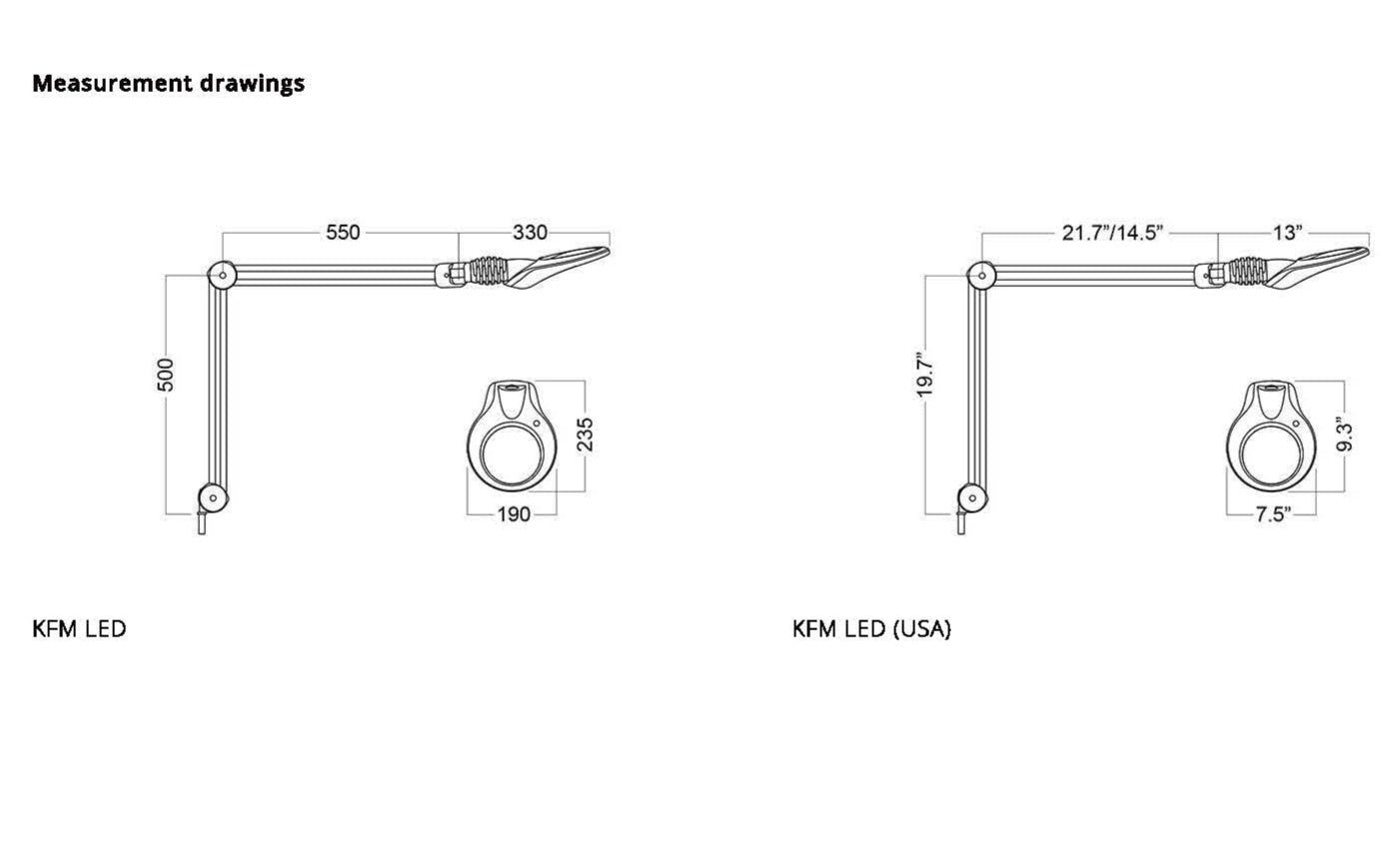

Head dimensions (mm) 190×235
Clampable width (mm) 8~70
Operating temperature limit 5℃~35℃
Dustproof/waterproof protection grade IP30 (for indoor use only)
