LUXO
KFM LED
KFM LED
In stock
Couldn't load pickup availability
■Product features

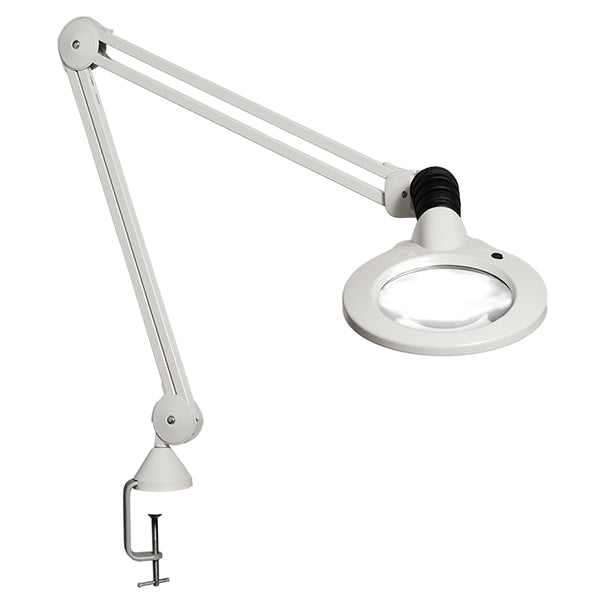

・LUXO KFM LED series is a standard illumination magnifier equipped with a circular optical glass lens and a half-moon LED. With a large diameter Φ127mm lens and stepless light intensity adjustment type LED, it is suitable for all industrial applications and work tools in hospitals, laboratories, cosmetics, etc.
・The long arm provides smooth vertical and horizontal operation, allowing it to always remain in the correct position without wobbling. The joint mechanism in the head allows the lighting and lens to rotate vertically, horizontally, and axially, allowing for a high degree of freedom in product installation.
- Two types of magnification are available: 3x and 5x. The lens is fixed and cannot be replaced, but by using LUXO-PUL, it is possible to add magnification.
■Product name
led lighting magnifier
■Model name
KFM LED (free arm type)
■Product specifications
| lens | |
|---|---|
| Magnification lineup | 3x, 5x |
| Lens dimensions (mm) | Φ127 |
| Lens material | optical glass |
| Working distance (mm) | 3x/130 5x/95 |
| Lens method | Fixed type |
| AR (anti-reflection) coated lens lineup | No settings |
| illumination | |
| light source | White LED x 2 sets |
| color temperature | 4000K |
| input voltage | 100V・50/60Hz・A plug |
| power consumption | 11W*Actual measurement value |
| Dimming function | Yes/Steplessly adjustable |
| ESD compatible | Not compatible |
| product weight | KFM LED 3x/approx. 3.0Kg KFM LED 5x/approx. 3.2Kg |
| Arm length (mm) | Approximately 1.050 |

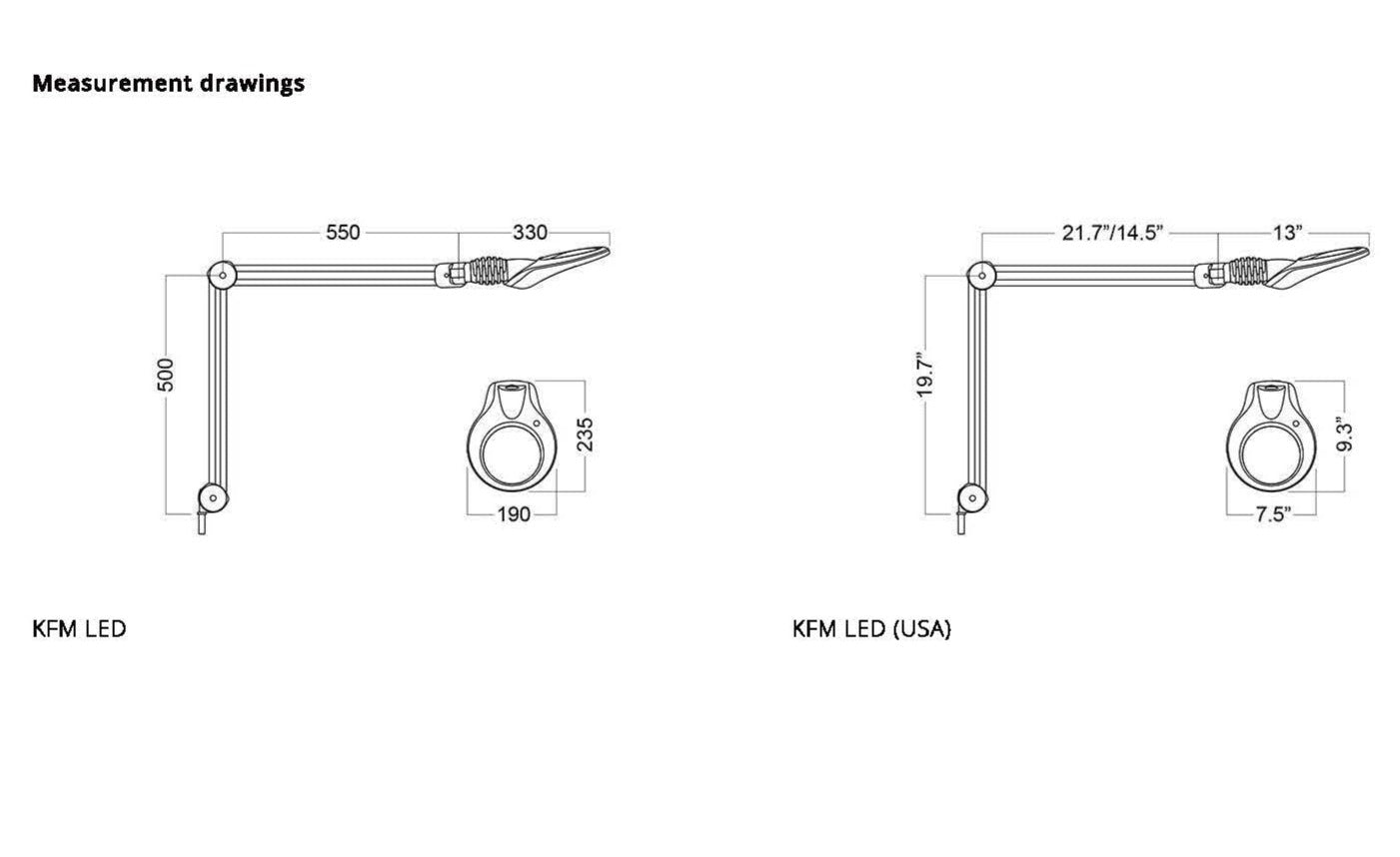

| Head dimensions (mm) | 190×235 |
| Clampable width (mm) | 8～70 |
| Operating temperature limit | 5℃～35℃ |
| Dustproof/waterproof protection grade | IP30 (for indoor use only) |
