led lighting magnifier

ENVL-FL

ENVL-FL

Regular price ¥106,700
Regular price Sale price ¥106,700
Sale Sold out
Tax included. Shipping calculated at checkout.
magnification

In stock

■Product features

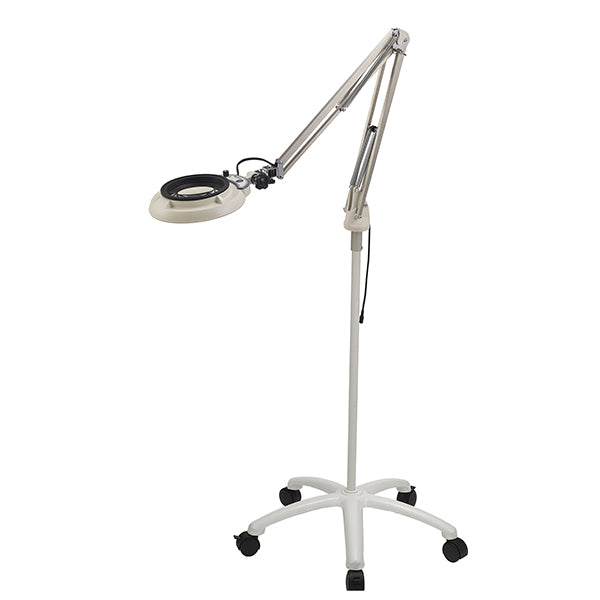

・ENVL-FL is a free-arm lighting magnifier attached to a caster stand.
・You can easily change the installation location within the reach of the power cord.
・We have adopted a board-mounted LED with high color rendering (Ra≧90) and high heat dissipation performance in a newly designed slim head exclusively for LED.
・The flat diffuser protection cover protects the workpiece and light source while reducing the glare characteristic of LEDs.
・The dimming is a volume type that allows you to see the level of adjustment at a glance. You can adjust the light intensity between 100% and approximately 10%.
・The ON/OFF switch and dimming volume are located on the head to improve operability.
- The newly designed clamp mounting part takes into consideration strength and workability, and is compact so it does not interfere with the work space.
・Adopts a head swivel function that greatly improves the freedom of arm and installation position.

■Product name
led lighting magnifier
■Model name
ENVL-FL type (free arm type + caster stand)
■Product specifications

lens
Magnification lineup 2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) coat lineup Yes/2x, 3x, 4x, 6x, 8x, 10x
lighting
light source High color rendering white LED (Ra≧90) + with protective diffusion cover
input voltage 100-240V, 50/60Hz, A plug *By changing the cord with AC plug, it can be used up to 125-240V.
Please contact your retailer for details.
power consumption 9W
Dimming function Yes /100 ~ 10%
Main body

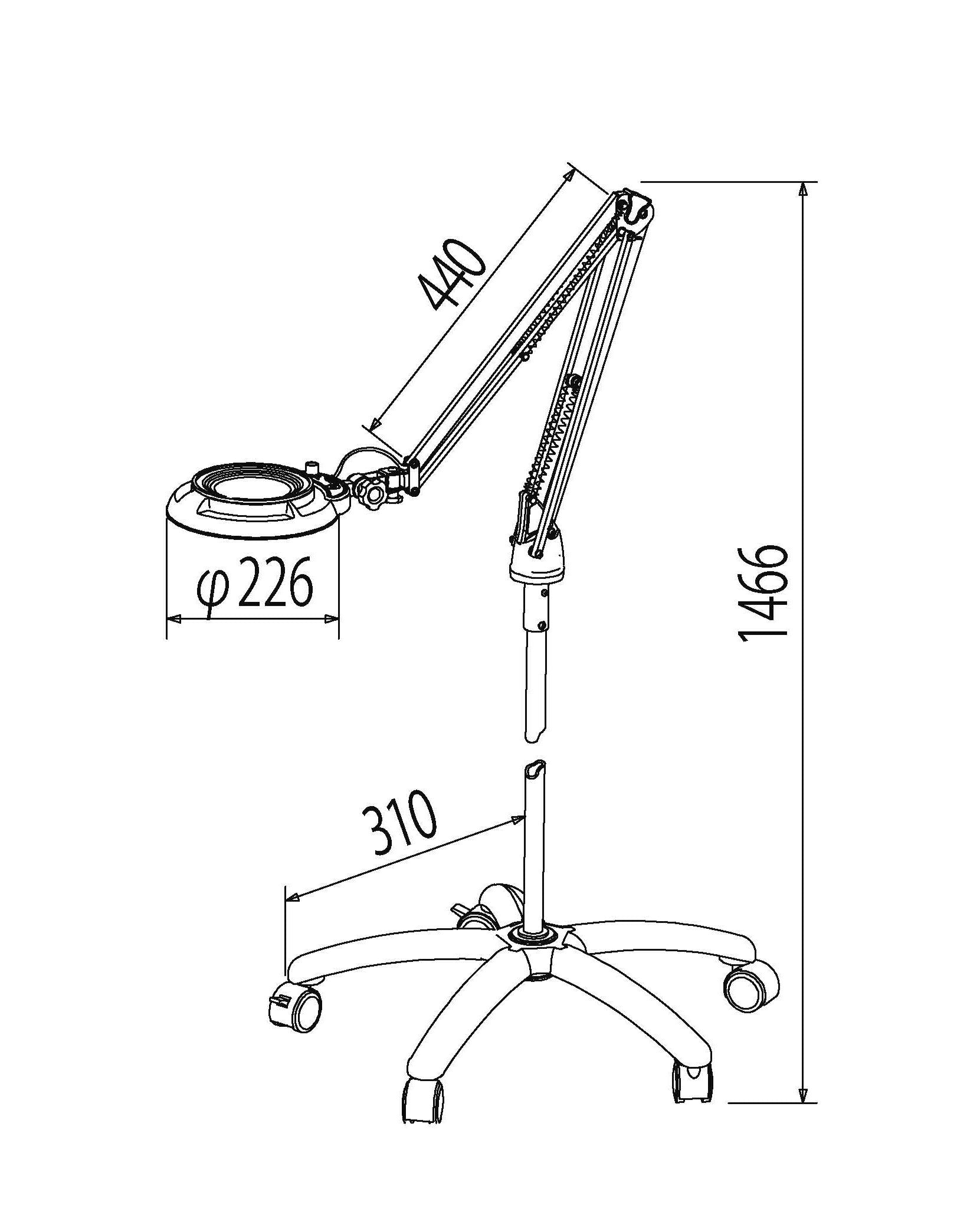

Weight (Kg) 12.8 (without lens/body weight)
Arm length (mm) 1000
Head dimensions (mm) Φ230
Caster stand dimensions (mm) Φ650×921H
AC adapter dimensions (mm) 96×44×29H (excluding wires)
Weight: 0.3kg (including wires)
Operating temperature limit 5℃~35℃
Dustproof/waterproof protection grade IP20 (for indoor use only)
  • 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
  • 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
  • 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
