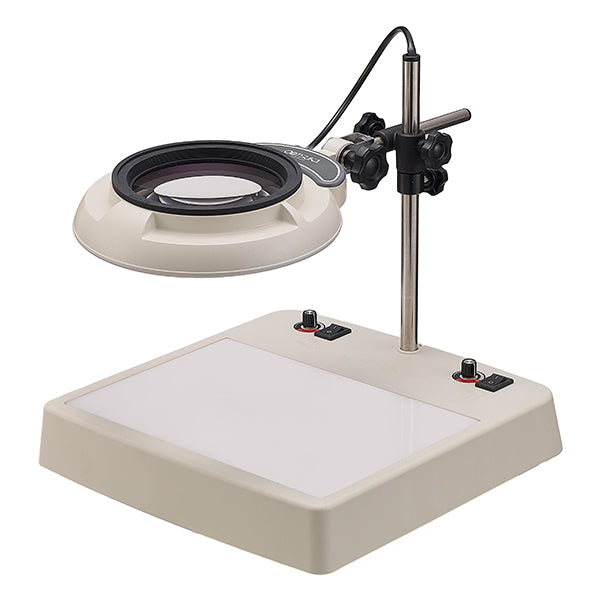

led lighting magnifier

ENVL-CL

ENVL-CL

Regular price ¥85,800
Regular price Sale price ¥85,800
Sale Sold out
Tax included. Shipping calculated at checkout.
magnification

In stock

■Product features
・The ENVL-CL type is a product that has two types of illumination: epi-illumination around the lens and transmitted illumination around the box. Each of the two lights can be turned on/off and dimmed individually.
・We have adopted a board-mounted LED with high color rendering (Ra≧90) and high heat dissipation performance in a newly designed slim head exclusively for LED.
・The flat diffusion/protective cover protects the workpiece and light source while reducing the glare characteristic of LEDs.
- In addition to external inspection using epi-illumination, transmitted illumination can be used to inspect transparent objects, check the condition of the outer periphery or inside of penetrating holes, and fish-eye inspection of films.

■Product name
led lighting magnifier
■Model name
ENVL-CL type (light box type)
■Product specifications

lens
Magnification lineup 2x, 3x, 4x, 6x, 8x, 10x, 12x, 15x
AR (anti-reflection) coat lineup Yes/2x, 3x, 4x, 6x, 8x, 10x
lighting
light source Epi-illumination section/transmitted illumination section High color rendering white LED (Ra≧90)
input voltage 100-240V, 50/60Hz, A plug *By changing the cord with AC plug, it can be used up to 125-240V.
Please contact your retailer for details.
power consumption 9W+9W
standby power 0W
Dimming function Yes /100 to 50% Epi-illumination and transmitted lighting can be turned on and dimmed individually.

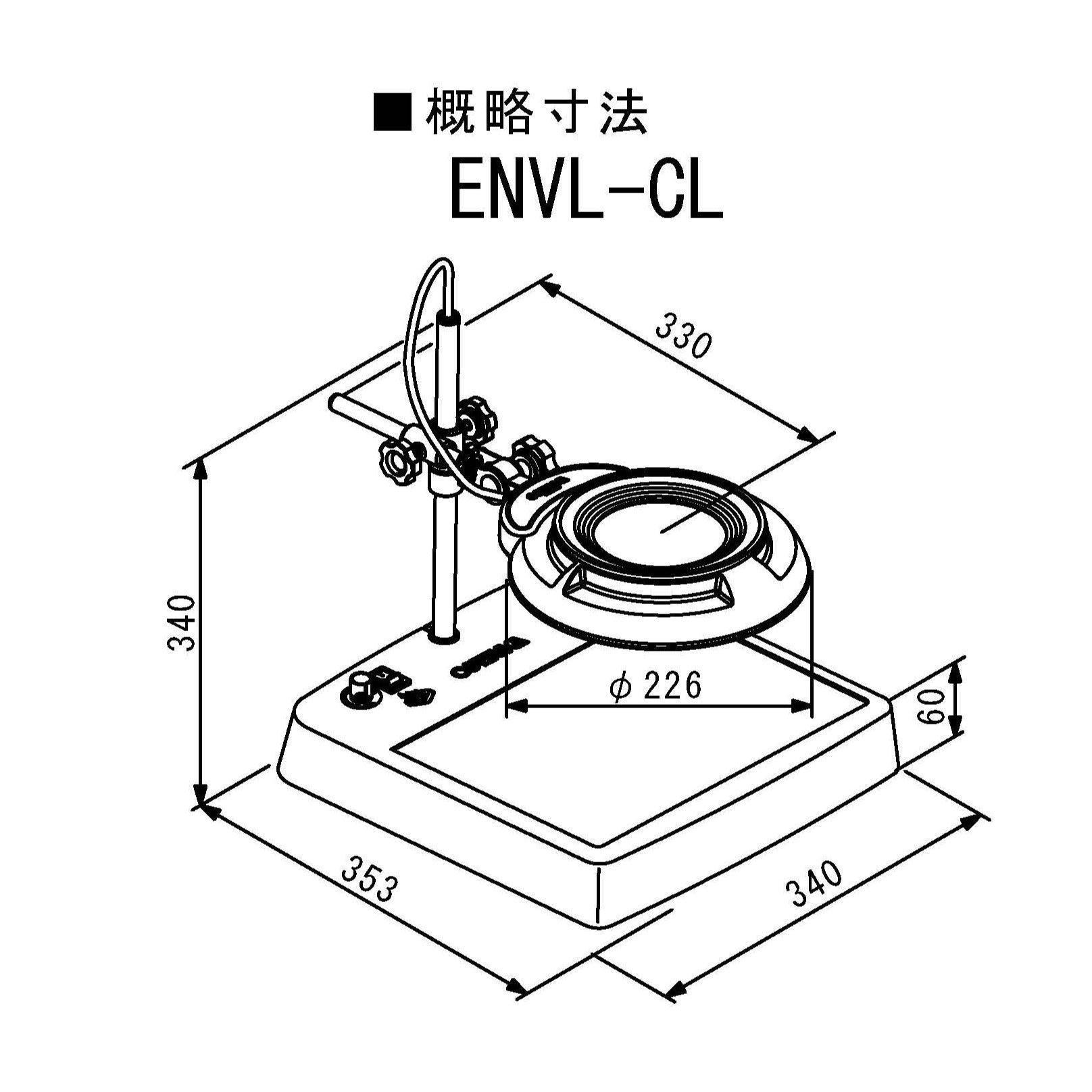

Main body
Weight (Kg) 3.2 (without lens/body weight)
Overall height (mm) 340
Head dimensions (mm) Φ230
Post/horizontal bar (diameter/mm) Φ16/Φ13
Transmitted illumination part dimensions (mm) 210×298
Operating temperature limit 5℃~35℃
Dustproof/waterproof protection grade IP30 (for indoor use only)
  • 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
  • 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
  • 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
