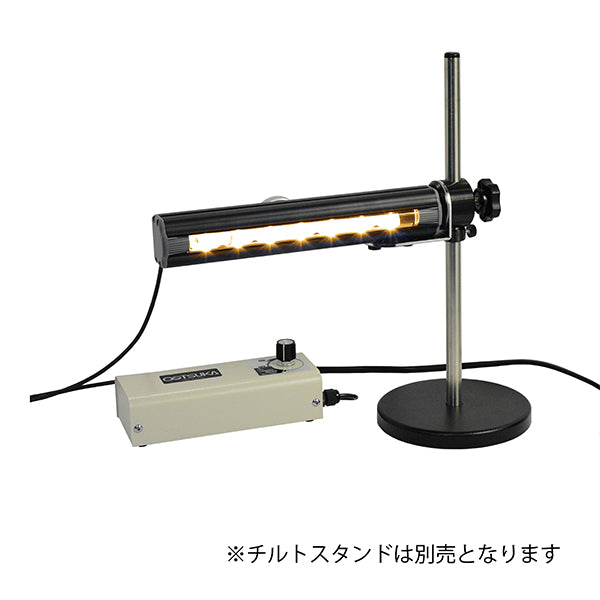

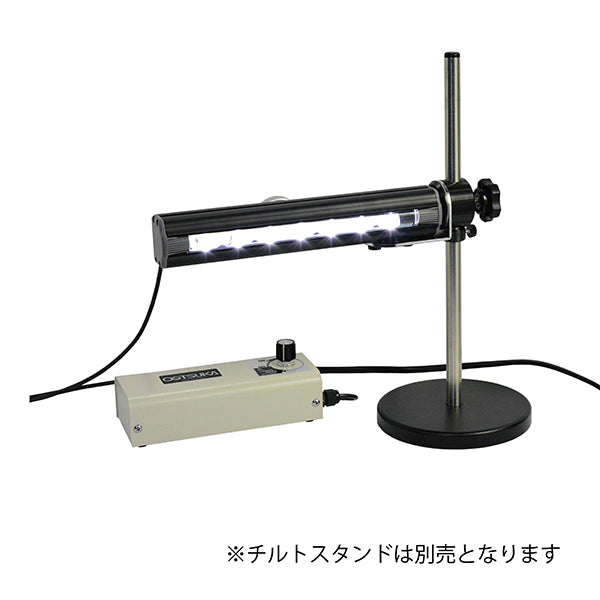

LED surface scratch inspection lighting

bar light 3

bar light 3

Regular price $588.00
Regular price Sale price $588.00
Sale Sold out
Tax included. Shipping calculated at checkout.
kinds

In stock

■Product features
・Bar lights use a combination of high-intensity LEDs and lenses arranged in parallel to irradiate a flat beam of light onto an object, eliminating irregularities such as minute scratches, dust, and sink marks on the surface. This is an illumination device to more easily detect defects.
・Not only can it be used alone, but it can also be used in combination as auxiliary illumination for optical equipment such as a magnifying glass to improve defect detection ability.
・The bar light type 3 is equipped with a light intensity adjustment function, which allows inspection to be performed by suppressing reflections on the object. It is also equipped with an adjustment function of the irradiation spread angle, making it possible to inspect flat objects. It can be used for a wide range of purposes, from objects to objects with a certain degree of three-dimensionality.
・Optional options include a "tilt stand" that can hold one main unit in place, a "double tilt stand" that can use two main units, and a "bar light free arm" that is suitable for environments that require flexibility, and can be held with one hand. We have a ``bar light grip'' that allows you to do this.
■Product name
LED surface scratch inspection lighting
■Model name
bar light 3
■Product specifications

lighting
light source High brightness white LED x 7 pieces
input voltage 100-240V, 50/60Hz, A plug *By changing the cord with AC plug, it can be used up to 125-240V.
Please contact your retailer for details.
Illuminance (irradiation spread angle 6°/actual value) 150mm/15000Lx, 200mm/10000Lx, 300mm/5800Lx, 400mm/3600Lx
Illuminance (irradiation spread angle 30°/actual value) 150mm/10000Lx, 200mm/6500Lx, 300mm/3300Lx, 400mm/2000Lx
power consumption 9W
Dimming function Yes/100~50%
Irradiation spread angle adjustment function Yes/6~30°

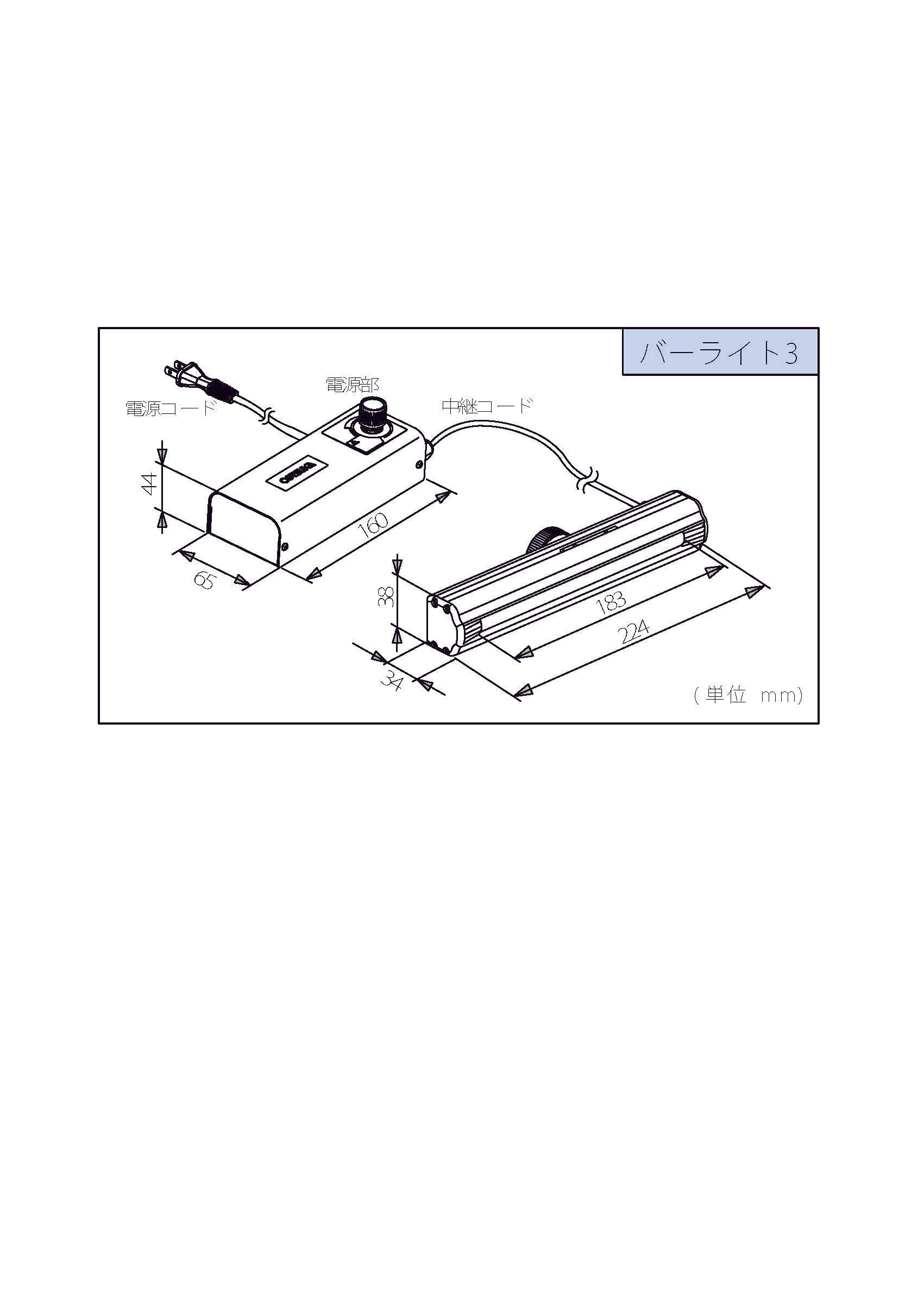

Cord length (mm) Power cord: 1800 Relay cord: 1500
Main body
product weight 945g (irradiation head only/420g)
Dustproof/waterproof protection grade IP40
Operating temperature limit 0°~40°
  • 製品によってはご購入前にお試し頂けます。→デモ機のご依頼(自社HP内)
  • 交換レンズシステムを採用してる製品の場合、画像は代表的なレンズをはめ込んでいるものです。
  • 一配送先につき、合計30,000円(税込)以上のお買い上げの場合は送料無料とさせていただいております。
